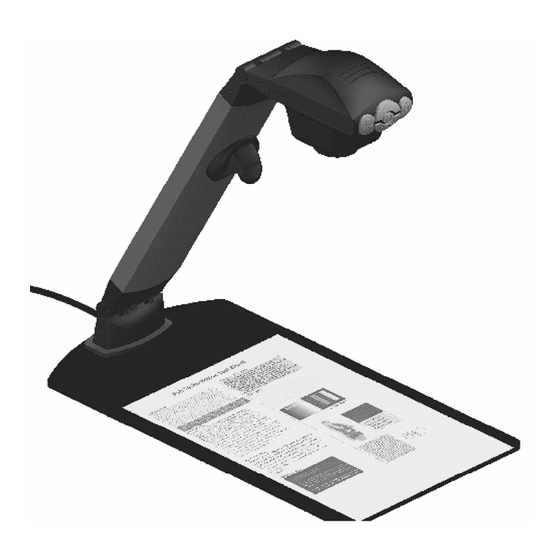

- Page 1 Prism USER MANUAL ENGLISH VERSION Page 1 Prisma AF English Rev 1.00...
-
Page 2: Table Of Contents
Mirror view ............8 Focus lock ............. 9 Lighting on/off............9 Sound on/off ............9 Factory defaults ............. 9 Taking Care of your Prisma AF ........ 9 Specifications ............11 Declaration Of Conformity ........11 Warranty ..............12 Package Contents... -
Page 3: Installation
“Video” or Power on the Prisma AF. *If you do not have a SCART input on your TV, you can use the trailing phono cable to plug into the yellow video input jack on your TV Page 3 Prisma AF English Rev 1.00... - Page 4 If it is too far or too close to the text the camera will not be able to focus correctly. The light can be rotated as shown. It should be adjusted so that it shines on an area centred about the camera’s image. Page 4 Prisma AF English Rev 1.00...
-
Page 5: Controls
Zoom-Down to reduce the image size. When reading you should generally choose the smallest size that you can read comfortably. The Prisma AF has limits set for each end of the magnification range, but you can override these limits by holding in Page 5 Prisma AF English Rev 1.00... -
Page 6: Overview
Up and Zoom Down buttons to adjust the image as desired. Press Mode again to save the setting. The setting you choose will be saved and used subsequently for that mode of operation. Page 6 Prisma AF English Rev 1.00... -
Page 7: Using The Prisma Af
Using the Prisma AF Reading with the Prisma AF Place the Prisma AF on a suitable table near the television and sit in front of it. Ideally the television should be at eye level or slightly below, and the Prisma AF reading table should be level with your elbows when seated. -
Page 8: Writing With The Prisma Af
Mirror view The Prisma AF has a mirror mode that is useful for checking your appearance. The mirror mode engages automatically when you tilt the camera head upwards to face the camera outwards. The unit will Page 8 Prisma AF English Rev 1.00... -
Page 9: Focus Lock
You should try to keep the Prisma AF close to the TV screen for ease of use. Focus lock Press Mode and Overview simultaneously to turn off the autofocus facility. - Page 10 Use only the supplied power supply and inspect the cabling regularly for damage. The power supply is rated for use within your home country – if you wish to use your Prisma AF abroad, consult your distributor first as both voltages and television standards vary throughout the world.
-
Page 11: Specifications
Declaration Of Conformity We, Ash Technologies Ltd., declare under our sole responsibility that this product Prisma AF, of the brand Ash Technologies to which this declaration relates, is in conformity with the following standards or other normative documents: EN 60601-1-2:2007 Medical Electrical Equipment –... -
Page 12: Warranty
Technologies or its agents and that it is solely serviced by Ash Technologies or its agents. In no event shall Ash Technologies or its agents be liable for special, indirect, incidental or consequential damages; the original user's remedies being limited to repair or replacement.
