Summary of Contents for Huchez CT3

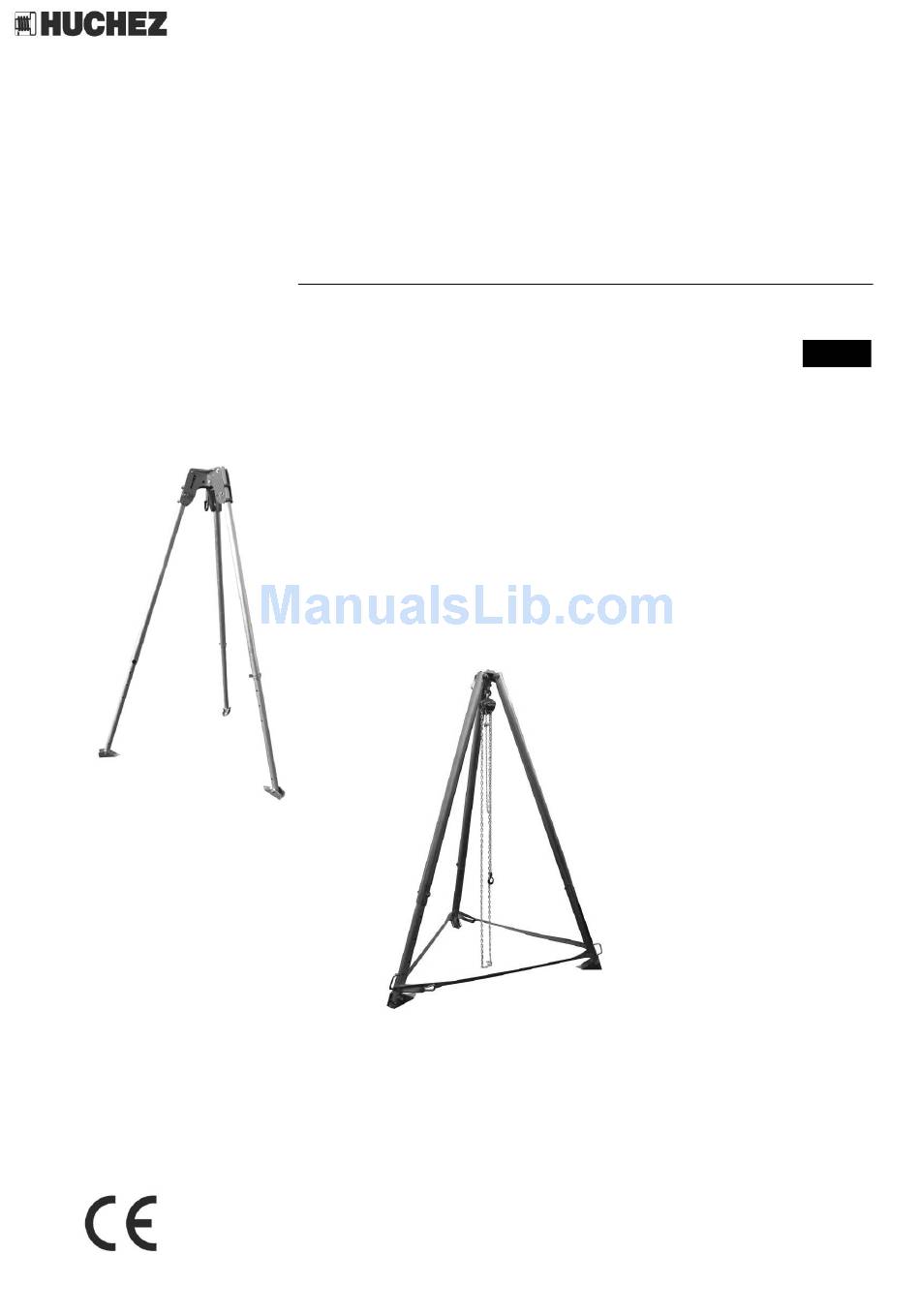

- Page 1 © 2014 by Huchez Treuils S.A.S. Shear legs / Tripods SHEAR LEGS / TRIPODS Instruction manual _______________________ (optional hoist) 17-346.14/2...
-
Page 2: Table Of Contents
2014 by Huchez Treuils S.A.S. To ensure the constant improvement of its products, HUCHEZ reserves the right to change the equipment as described below and, in this case, to supply products which differ from the illustrations in this instruction manual. - Page 3 © 2014 by Huchez Treuils S.A.S. 1 – General notice Tripods delivered on their own are considered Partly Completed Machinery in accordance with European Regulations. Their design and production fulfil the applicable requirements of the Machinery Directive 2006/42/EC, with the following exceptions: These tripods may not be commissioned until the tripod + hoist (or winch) assembly has been ...
- Page 4 The three legs are inscribed in a circle of 1.60 m diameter. Dimensions in mm 2.2.1. CT3 500 kg and CT3 1000 kg - 3 meters The feet are inscribed in a circle of 2 m to the 4th hole and 2.30 m beyond.
-
Page 5: Handling - Storage
. a short version (length 2 m) for CT3 500 kg- 3 m and CT3,1000 kg models, . a long version (length 3 m) for CT3 500 kg - 4 m and CT3 2000/3000 kg models. Translation of the original instruction manual... - Page 6 © 2014 by Huchez Treuils S.A.S. Each of the three straps comprises: . on one side a loop placed around the aluminum tube. . on the other side, a hook and a another loop called intermediate. There are two positions for the adjustment of the straps according to the state of deployment.
-
Page 7: Maintenance
© 2014 by Huchez Treuils S.A.S. - When the tripod is deployed beyond the 4th hole, directly attach the carabiner on the handle of aluminum tube: Beyond the 4th hole Last, hang the hoist at the point of anchoring of the head ... -
Page 8: Statutory, Compulsory Checks By The User
© 2014 by Huchez Treuils S.A.S. 7 – Statutory, compulsory checks by the user This appliance has been subjected to the following tests in the factory: dynamic proof test at coefficient 1.1 static proof test: at coefficient 1.5 for appliances moved by human strength ... -
Page 9: Annexes
© 2014 by Huchez Treuils S.A.S. 10 – Annexes A – If hardware supplied with hoist and winch A.1 Manual of the hoist A.2 Manual of the winch B –Part references C – Maintenance booklet Translation of the original instruction manual... -
Page 10: By Huchez Treuils S.a.s
© 2014 by Huchez Treuils S.A.S. – If hardware supplied with hoist and winch A.1 Manual of the hoist Enclosed. A.2 Manual of the winch Enclosed. Translation of the original instruction manual All rights reserved... - Page 11 © 2014 by Huchez Treuils S.A.S. Part references – Bill of materials - CT3 250 kg Part Part Article Description Article Qty Description number number 13014 Nut H FR M8 24431 Upper tube 250 13020 Nut H FR M10 24432...
- Page 12 Retention strap ring 13597 Nut H FR M20 24423 Strap 2 m (CT3 500 – 3 m) 1767 Safety pin 24059 Strap 4 m (CT3 500 – 4 m et CT3 1000) Translation of the original instruction manual All rights reserved...
-
Page 13: Head
© 2014 by Huchez Treuils S.A.S. Bill of materials CT3 2000-3000 kg Part Part Article Description Article Description number number 13026 Nut NF E 24032 M20 20674 Articulated foot 13092 Screw TH ISO 4014 M12x150 20675 13216 Washer NF E 25514 M20... -
Page 14: Translation Of The Original Instruction Manual
© 2014 by Huchez Treuils S.A.S. The English version of the maintenance booklet for our lifting winches can be downloaded from our website www.huchez.fr/uk under the heading "After sales services”. Translation of the original instruction manual All rights reserved... - Page 15 © 2014 by Huchez Treuils S.A.S. Translation of the original instruction manual All rights reserved...
