Ilockey Technology Co.,lTD

Focused on smart lock solution

IC 906 Operating Instruction

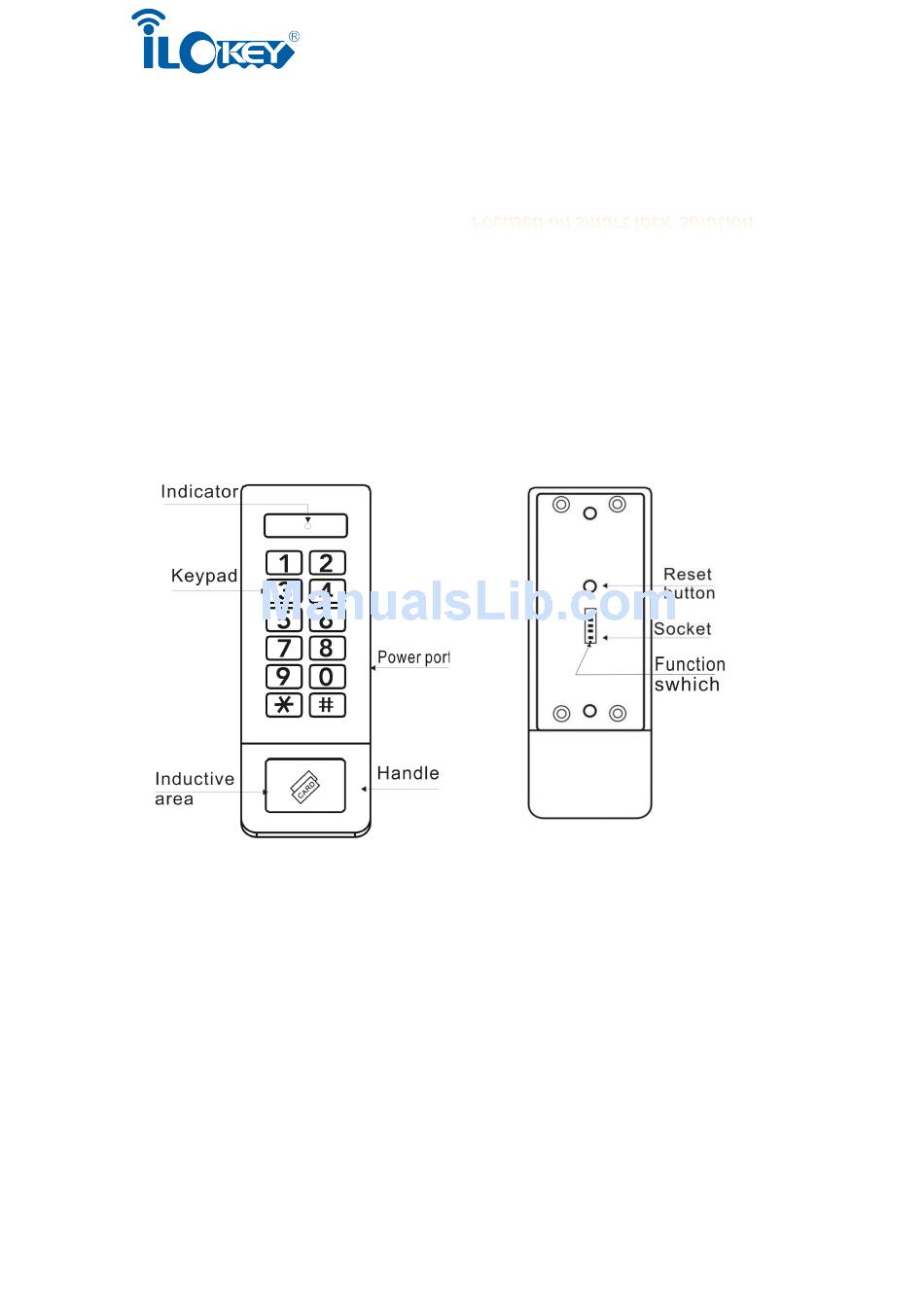

Initialization

Load 3 pcs AA alkaline batteries into the battery holder of the rear panel, and insert the plug

of the back panel into the socket of the front panel, and use a needle tool to press the Reset

button until three long "beeps" sound, and the lock is initialized. After initialization, all the

programmed cards and digital codes are deleted.

(When the locks leave the factory, the locks are already initialized)

I. Owner Card (1 pc)

Program Owner Card:

After initialization, scan the Dirst EM card near the inductive area, after three long beeps

sound, the card is the Owner card.

Change Owner Card:

Press the Reset button until three long beeps sound, all the programmed card(s) and digital

codes are deleted, scan another EM card near the inductive area, after three long beeps

sound, the card is the new Owner card.

Note:

a.The owner card is used to program or delete master card(s) and master code, and

cannot be used to lock or unlock.

Table of Contents

Need help?

Do you have a question about the IC 906 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ilockey IC 906

Page 1 Ilockey Technology Co.,lTD Focused on smart lock solution IC 906 Operating Instruction Initialization Load 3 pcs AA alkaline batteries into the battery holder of the rear panel, and insert the plug of the back panel into the socket of the front panel, and use a needle tool to press the Reset button until three long “beeps” sound, and the lock is initialized. After initialization, all the programmed cards and digital codes are deleted. (When the locks leave the factory, the locks are already initialized) I. Owner Card (1 pc) Program Owner Card: After initialization, scan the Dirst EM card near the inductive area, after three long beeps sound, the card is the Owner card. Change Owner Card: Press the Reset button until three long beeps sound, all the programmed card(s) and digital codes are deleted, scan another EM card near the inductive area, after three long beeps sound, the card is the new Owner card.
Page 2 Ilockey Technology Co.,lTD Focused on smart lock solution b. Only one owner card is allowed for each lock. For convenient management, the same owner card can be programmed as the owner card of all or some of the locks in a project. II. Master Card (3 pcs) or Master Code (1 pc) A. Master Card (3 pcs) Program Master Card: Scan the owner card near the inductive area Dirst, indicator light blinks, during the blinking period, and scan another EM card, after a beep sound, the card programmed by the owner card is Master card. Delete Some Master Card: Scan the owner card near the inductive area Dirst, indicator light blinks, during the blinking period, and scan the master card, after two beeps sound, the master card is deleted. Delete All Master Cards: Scan the owner card near the inductive area, indicator light blinks, during the blinking period, and scan the owner card again, after three long beeps sound, all the master cards are deleted, and the user code and user cards are also removed.
Page 3 Ilockey Technology Co.,lTD Focused on smart lock solution master code of all or some the locks in a project. III. User Operation Selection (Select one operation from below Uive activities) One-time Code (Function switch right side) (suitable for a public place) To Lock: Press “*” button —→ digital code(max nine digits) —→ “#” button, after two beeps sound, the lock is locked. To Unlock: Press “*” button —→ digital code —→“#” button, after a beep sound, the lock is unlocked. Delete One-time Code: Scan the master card near the inductive area (or enter the master code), after a beep sound, the lock is unlocked, and the one-time code is deleted. B. 4-digit One-time Code (Function switch left side) To Lock: Enter 4-digit number code, after two beeps, the lock is locked. To Unlock: Enter 4-digit number code, after a beep, the lock is unlocked. Delete 4-digit Code: Scan the master card near the inductive area, after a beep, the lock is unlocked, and the 4- digit code is deleted. C. Permanent Code (Function switch right side) (suitable for personal and private use) Conversion from One-time code to Permanent code: Depress “*” button, and scan the owner card, after four long “beeps” sound, the current one- time code mode changes to permanent code mode. (Conversion from Permanent code to One-time code: Depress “*” button, and scan the owner card, after two long “beeps” sound, the permanent code changes back to one-time...
Page 4 Ilockey Technology Co.,lTD Focused on smart lock solution period, press “*” button —→ original permanent code —→ “#” button, after 2 short beeps sound and indicator light blinks again, during the blinking period, and press “*” button —→ new digital code —→ “#” button, after a long beep sound, the original permanent code is replaced by new permanent code. Delete Permanent Code: Scan the master card (or enter master code) near the inductive area, after a beep sound, the lock is unlocked, and the permanent code is deleted. Note: After unlocked by the master card or master code, the permanent code is deleted and a new permanent code must be programmed again.
Page 5 Ilockey Technology Co.,lTD Focused on smart lock solution To Unlock: Scan the user card near the inductive area, after a beep sound, and the lock is unlocked. Note: User card can be used to lock or unlock in either one-time code mode or permanent mode independently; If one mode converts to the other mode, the user card cannot be used and must be programmed again. E. User Card + One-time Code To Lock: Scan the user card near the inductive area, after a beep, and the lock is unlocked, indicator light blinks, during the blinking period, press “*”button —→ digital code —→“#” button, after two beeps, the lock is locked. To Unlock: Scan the user card near the inductive area Dirst, indicator light blinks, during the blinking period, press “*”button —→ digital code —→“#”button, after a beep, the lock is unlocked. Delete “User Card + One-time Code”: Scan the master card near the inductive area (or enter a master code), after a beep, the lock is unlocked, and the “user card + one-time code” is deleted. Note: User card + one-time code can be used only in one-time code mode. Functions: Light Indication in Locked Status When the lock is in locked status, indicator light blinks every 6 seconds to indicate the lock in use. Illegal Card or Wrong Digital Code Alarm Scan any illegal EM card or enter any wrong digital code four times, the lock emits continuous beeps alarm 20 seconds. (During the warning, scan opening card can terminate...
Page 6 Ilockey Technology Co.,lTD Focused on smart lock solution When operating voltage is on or below DC3.7 ± 0.2, scan the opening card or enter a digital code to unlock, indicator light blinks, and the lock emits continuous eight beeps alarm to show low voltage, the batteries must be replaced with new ones. Emergency Unlocking In case the batteries used up, use a 6V battery pack charger to insert into the power port on the side section of the front panel, then scan the opening card or enter a digital code to unlock.
Page 7 Ilockey Technology Co.,lTD Add: 6th Floor Shuipan building, No 3193 Binghe Avenue , Futian District, Shenzhen Tel:+86-755-84046958 Fax:+86-755-84046959 Email: info@ilockey.com www.ilockey.com...
