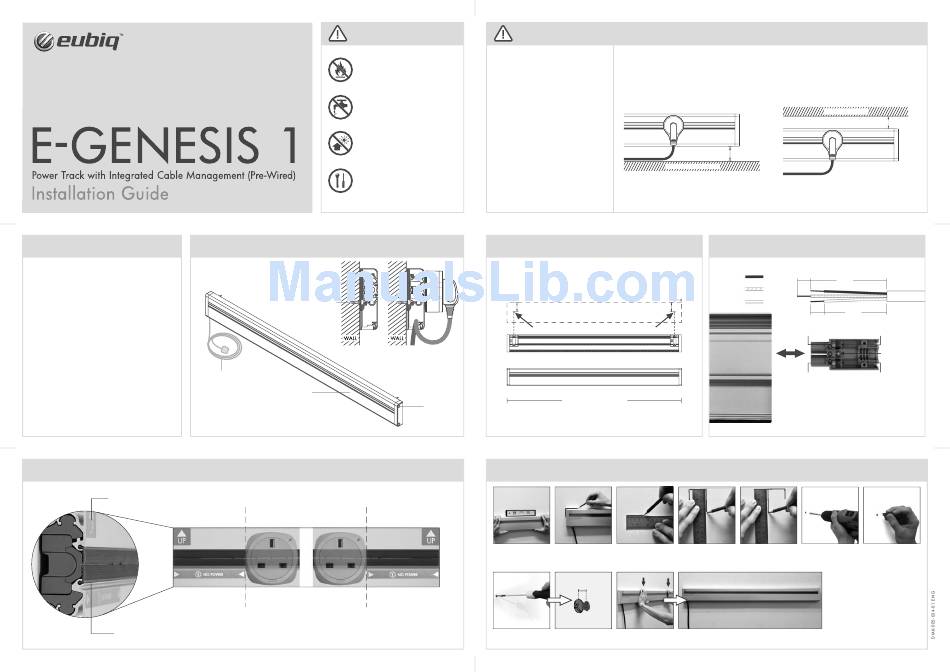

Eubiq E-GENESIS 1 Installation Manual

Technical Specifications

Product Overview

Rated Voltage : 250 V a.c. Single-phase
Rated Current : 13 / 16 Amp maximum
Frequency : 50Hz / 60Hz
Rated Impulse Withstand Voltage : 4000 V a.c.
Connection of Adaptor or Tap-off Unit : Intended to be connected and
disconnected when system is
energised and with a load
connected
Terminal Connecting Capacity
Live, Neutral & Earth : Rigid 2.5mm 2 to 6mm 2
2 2
Flexible 1.25mm to 2.5mm
(16Amp)
o o
Ambient Operating Temperature : -5 C to 45 C (not to exceed an
o
average of more than 35 C in
any 24 hours period)
Maximum Installation Altitude : 2000 meters
Resistance to Impact : Heavy Impact Pre-wired with 3m of
1.5mm² 3-core cable
Degree of Protection : IP4X
Degree of Pollution : 2 (Non-conductive pollution with
temporary conductivity caused
by condensation)
Track Material : Aluminum
Insulation Material : Polycarbonate
Dimension (Height x Depth) : 100mm x 28.5mm
Weight : Estimated 1.8kg (1000mm)

Product Orientation

'UP' Indicator
Adaptors are not to be
inserted within this region.
V-GROOVE
CAUTION
Keep away from fire.
Keep away from water.
Not for outdoor use.
To be installed by a
qualified electrician/
installer.
Mounting Peg
Screw
Side View Side View with adaptor
E-GENESIS 1
Screw Cap
Adaptors are not to be
inserted within this region.

PLEASE READ BEFORE INSTALLING

INSTALLING PARTY

All Power Tracks must be installed by a qualified Minimum Clearance for E-GENESIS 1 Installation
electrician.
FIG. 1

USE OF EARTH LEAKAGE CIRCUIT BREAKER(ELCB)

It is a mandatory requirement that all installations
Minimum clearance of 25mm from the bottom required.
of electrical power source must be connected to an
ELCB to provide protection against overload, short
circuits and earth leakages faults. Failure to comply
can be hazardous.

INSTALLATION LOCATION

All Power Tracks must be installed at location that
complies with safety rules and regulations of
respective country.

INSTALLATION SURFACE

All Power Tracks must be installed on flat surface.
FLOOR/HOME FIXTURE

RECOMMENDED INSTALLATION CLEARANCE

Refer to FIG.1 & 2 on the right for more information
on the minimum clearance (from the floor or any
furniture fixtures) required for 'twist-on' adaptors
and accessories.

Drilling Measurement

FIG. 3
Marking & Drilling Measurement Overview
40mm
55mm 55mm
wall
Drill here Drill here
Back View
Front View
Length of E-GENESIS 1
Drill on the circular markings using a 5.5mm concrete drill bit (not
included).

Installation of E-GENESIS 1

1 2 3
Place the E-GENESIS 1 on Mark out the guides on Measure 40mm from the
the wall and use a level both end. side of the edge.
to ensure a horizontal
alignment.
8 9 10
Force
2mm
Fasten the screws into the Leave 2mm gap between Align and hook the openings on the rear side of the E-GENESIS 1 with the screws on the wall.
wall plugs. the screw head and the Apply a downward force to secure the track.
wall surface for mounting.
FIG. 2
Minimum clearance of 20mm from the top required.
CEILING/CABINET
25mm

Wiring Instructions

Prepare leads as shown:
10mm
50mm
Live (Brown or Red)
40mm
Earth (Green or Green/Yellow)
Neutral (Blue or Black)
40mm
10mm
Live Indicator
Neutral Indicator
1) Do not perform in damp environment.
2) If in doubt, please consult a qualified electrician.
4 5 6
Measure 55mm from the Repeat step 3 and 4 on Drill holes based on both
top of the track and do the other end. markings on the wall.
marking for drilling. Use Concrete drill bit Ø
5.5mm.
11
20mm
Live Terminal
Earth Terminal
Neutral Terminal
7
Insert wall plugs into the
drilled holes. Use a mallet
if necessary.
