EDW ARDS

Description and Operation

Edwards remote amplifiers are designed to accept tones, voice,
or music inputs from 5541 System control units or tones from
5540 Series Tone Generators. The amplifiers convert the input
signals to 70V line output (up to 15 watts) to sound on speakers
in remote locations. The remote amplifiers are UL listed and
CSA certified as audible signal appliances for general signaling
(non-fire alarm) use.

Mechanical Specifications

Weight ............................................................. 7 Pounds (3.2 kg)
Variable Ambient Temp. ............ -31F to +151F (-35C to +66C)

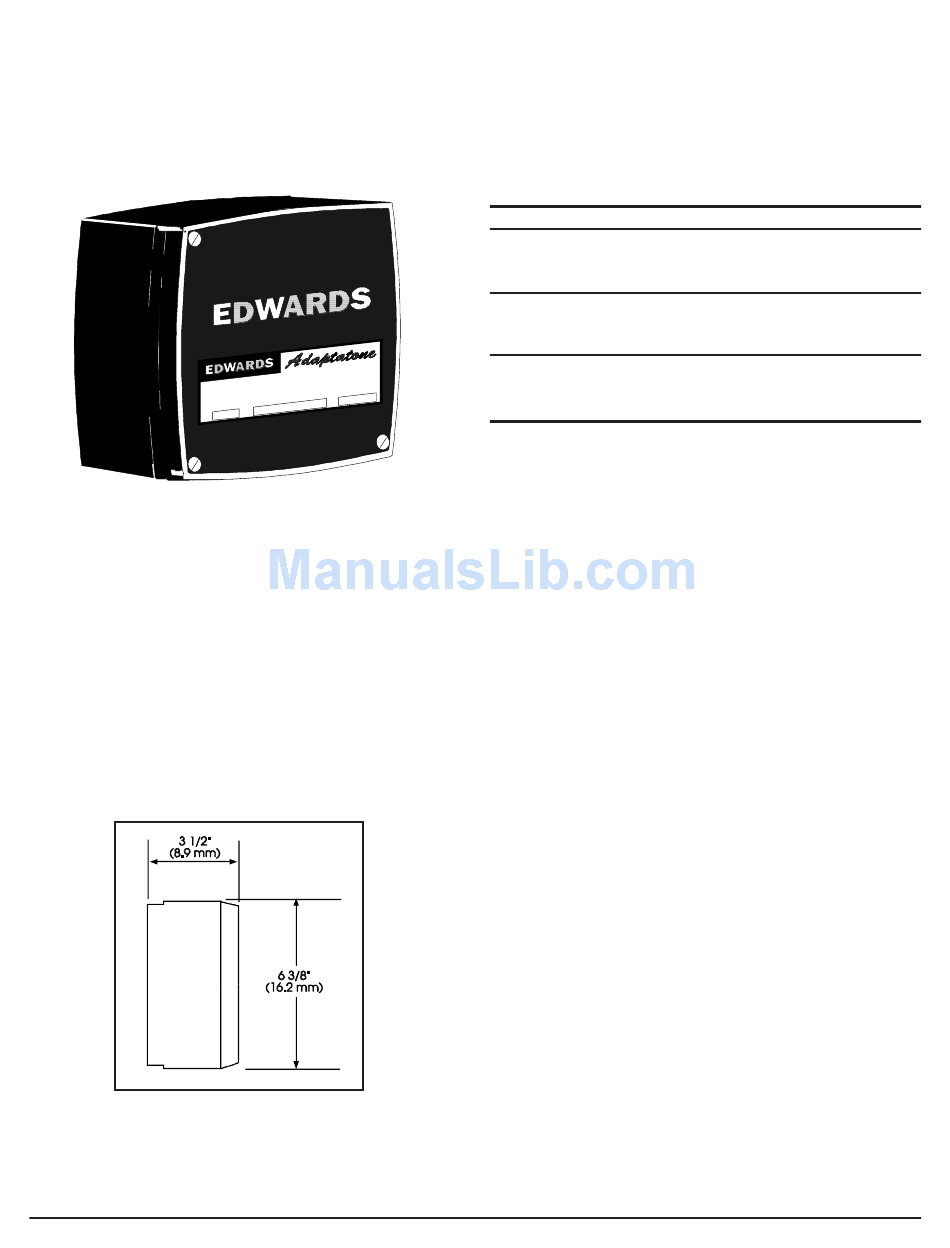

Figure 1. Dimensions
FARMINGTON, CT 203-699-3000 FAX 860-677-7746
Installation Instructions for Remote Amplifiers
Catalog Series 5535

Electrical Specifications

INPUT POWER
Catalog
Number
Voltage
5535-N5
120V 60 Hz
120V 50 Hz
24V DC
5535-R5
240V 60 Hz
240V 50 Hz
24V DC

Installation

Installation should be completed in accordance with applicable
local codes and the latest edition of either NFPA 70, National
Electrical Code, or CSA C22.1, Canadian Electrical Code.
Each 5535 Series Remote Amplifier may be mounted to any flat
surface or may be used as a freestanding unit mounted to a rigid
pipe.
NOTE: During installation, take care not to damage the
components on the printed circuit board.
1. Mount Adaptatone (Figure 2).
a.
Remove (4) cover screws from the signal box and lift off
cover.
b.
Flat Surface Mounting. Secure unit to mounting surface
at the (2) mounting holes in rear of box with furnished
O-rings and #10 X 1 1/2" (38 mm) screws (supplied).
For mounting to dry wall or concrete surfaces, use
furnished O-rings and suitable hardware (not supplied).
c.
Rigid Pipe Mounting. Seal the (2) mounting holes in
rear of box with (2) furnished O-rings and #12 X 3/8"
(9.5 mm) long screws.
Remove the center knockout in lower wall of box and
mount box to a 1/2" (12.7 mm) conduit pipe using
suitable connector (not supplied).
2. Install wires through a knockout hole in the bottom of the
box when the signal is mounted to a flat surface, or through
the pipe when the signal is freestanding. In areas of high
electrical noise, use shielded audio cable.
Typical Current
Standby
Tone On
Current (A)
Current (A)
.11
.31
.30
.40
.02
.60
.053
.20
.064
.25
.018
.60
P-047550-0857 ISSUE 3 © 1998
