Muse M-235 User Manual

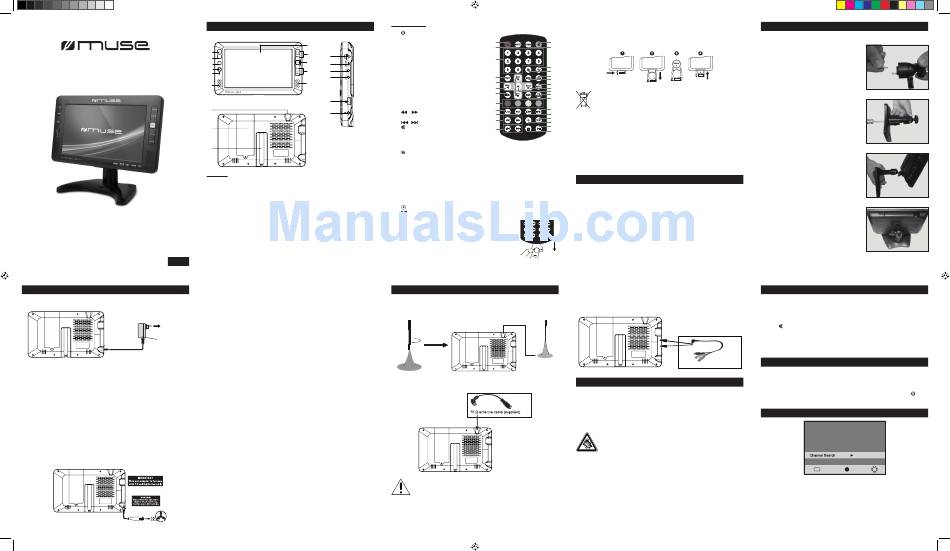

M-235 TV
Portable TV
User Manual
Please read the instruction carefully
before operating the unit.
English
POWER SUPPLY
Using the AC adaptor
Back view
2. To AC OUTLET
AC ADAPTOR
1. To DC IN 12V jack
The supplied AC adaptor is suitable for use on AC mains supplies of 100-240V ~ AC
and should only be connected to a mains supply within these parameters.
Cautions:
* The AC adaptor included with this unit is for its use only. Do not use it with other
equipment.
* Turn off the unit before unplugging the AC adaptor from the unit so as to avoid the
unit being damaged.
* When the unit is not going to be used for long time, disconnect the AC adaptor from
the AC outlet.
* Be sure to use it near the wall outlet and easily accessible. If a malfunction occurs,
disconnect the plug from the wall outlet at once.
* AC adaptor is used as the disconnect device. It shall remain readily operable and
should not be obstructed during intended use. To be completely disconnected the
apparatus from supply mains, the AC adaptor of the apparatus shall be disconnected
from the mains socket outlet completely.
* Never use an AC adaptor that is damaged, route power lead in a safe manner and
make sure it is not subjected to trapping or pinching. If the power lead is damaged
refer to a qualified service agent.
Using car plug
Back view
1. To CAR PLUG - 12V jack
2. To the cigarette
lighter socket
Car adaptor
GB - 5
PTM-3102N IB MUSE 001 REV0 - GB.1 1
LOCATION OF CONTROLS
Front View Side view
1
6
2
EXIT
15
7
MENU
3
8 16
OK
STANDBY
/MODE
9
4 17
10
18
5
5
9" PORTABLE LCD TV
Back View 19
11
14
12
13
Main Unit
1. TFT-LCD display 10. Indicator Light (Red: Standby Mode;
2. CH+/-, ▲ / ▼: Channel selection; Green: battery charging mode; Orange:
upward / downward keys. battery is under charging and the unit is
3. OK: To confirm the selection. in standby mode; Light turns off: battery
4. VOL+/-, ◄ /►: Volume adjustment; is fully charged and unit turn on)
leftward / rightward keys. 11. Antenna Input Jack
5. Speakers 12. Battery Compartment
6. Exit (Return Key): To exit current 13. Flute for installing the supporting
menu and return to previous Menu. stand
7. MENU: To access the main menu 14. Earphones jack
8. STANDBY /MODE: To turn on/off 15. DC INPUT (12V) jack
the unit; to select different operation 16. ON/OFF power switch
mode: HDTV/AV. 17. AV INPUT jack
9. Remote Sensor 18. AV OUTPUT jack
19. USB port
GB - 1
WARNING: Disconnect this car power adaptor when not in use. Not for use in
24V vehicles.
Cautions
* Use only the included 12V car power adaptor. Use of any other 12V car power
adaptor could damage the unit.
* The 12V car power adaptor included is for use with this unit only. Do not use it with
any other equipment.
* In the interest of traffic safety, drivers should not operate the unit or view videos while
driving.
* Make sure the unit is fastened correctly to prevent from falling in the vehicle in the
event of an accident.
* When the inside of the cigarette lighter socket is dirty with ashes or dust, the plug
section may become hot due to poor contact. Be sure to clean the cigarette lighter
socket before use.
* After use, disconnect the car power adaptor from both the unit and cigarette lighter
socket.
Using the Built-in battery
The unit has a built-in rechargeable battery (lithium-polymer). Charge the built-in
battery before using it for the first time. The charging indicator will change from red to
green when the battery becomes fully charged.
Warnings:
* To charge the battery, just connect the AC adaptor.
* Recharge the built-in battery when you are ready to use it again.
* While using the built-in battery, the environmental temperature should be 5°C (41°F)
to 35°C (95°F).
* To get the longest service life of the built-in battery, charge at indoor-temperature.
* The built-in battery in this device may present a risk of fire or chemical burn if
mistreated. Do not disassemble, heat above 100°C (212°F), or incinerate.
* The unit should not be exposed to excessive heat such as sunshine, fire or the like.
* When discarding the unit, environmental problems must be considered and local
rules or laws governing the disposal of such products must be strictly followed.
GB - 6
Remote control
H1. Standby button
H2. MODE: To select different operation mode
H1
(HDTV/AV) H13
H2
H3. 0...9: Number entry H14
H4. LIST: Nine picture guide function
H5. CH+/-, ▲ /▼: Channel selection; Upward/
H3
downward keys
H6. VOL+/-, ◄/►: Volume adjustment; leftward/ H15
H16
rightward keys
H17
H4
H7. MENU: To access the main menu
H18
H5
H8. Color buttons (red, green, yellow, blue): To
H19
activates the function according to different
H6 H6
H20
color shows on the display
H7
H21
H9. P.ADJ: Picture adjustment (for HDTV mode)
H22
H10. PICT: To select the different picture modes
H8
(Standard, Soft, Vivid, Light, Personal)
H9 H23
H11. / : To start reverse or forward
H10 H24
accelerated playback.
H25
H11
H12. / : next or previous H26
H13. : To cut off or restore the sound H27
H12
H28
H14. SEARCH: To start searching the channels
(for HDTV mode)
H15. FAV: To show your favorite channel (for
HDTV mode)
H16. : To return to last channel
H17. EPG (Electronic program guide): To show the preview of the program picture
(for HDTV mode)
H18. INFO: To show the information of current program
H19. AUDIO: To select different sound mode (for HDTV mode)
H20. OK: To confirm the selection
H21. TV/RADIO: To switch between TV and radio channels (for HDTV mode)
H22. EXIT: To exit current menu and return to previous menu
H23. SUBTITLE: To turn on / off the subtitle (for HDTV mode)
H24. SLEEP: To set the time to turn off the unit automatically
H25. TEXT: To turn on / off the teletext information (for HDTV mode)
H26. : Record button
H27. : To PLAY and PAUSE playback
H28. : stop button
The remote control operates on 1pc "CR2025" lithium battery
(included). To power up the remote control, remove the
insulation tab from the back of unit.
GB - 2
CONNECTIONS
Disconnect all devices from the main supply before connecting.
1. Connecting external antenna
* Connect with DVB-T antenna (for outdoor reception)
DVB-T Antenna
(supplied)
* Connect with 75 ohm transferring antenna cable (for indoor cable TV)
Another end of this cable will be connected to public antenna for TV.
If you connect the DVB-T antenna, set the antenna setting "ON". While
connect 75ohm transferring antenna, set the antenna setting "OFF". (Please
refer to the "DVB-T Installation Guide".)
GB - 7
INSTALLING BATTERY
1. Push the button toward right.
2. Pull the battery loader out.
3. Insert one "CR2025" size battery with the positive side (+) facing up.
4. Replace the cover.
Before throwing any batteries away, consult your distributor who may be able
to take them back for specific recycling.
NOTES:
- Never recharge the batteries, apply heat to them or take them apart.
- In order to avoid leakage, always remove the batteries when unit will not be used for
a long period of time.
- If the remote control is not going to be used for a long time, remove the battery to
avoid damage caused by battery leakage corrosion.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
ACCESSORIES
Remote control x1
AC adapter x1
Car plug x1
AV cable x1
DVB-T antenna, x1
75 Ohm transferring antenna cable x1
Supporting stand with rubber pad x1
Earphones x1
GB - 3
2. Connecting the A/V cable
Connect the A/V cable to the AV OUT jack or AV IN jack. The yellow, white and red
end of this cable will be connected to video/audio accordingly. Press MODE button to
select "AV".
Note: AV OUT is only available in HDTV or USB Mode.
AV transfer-connected cable (supplied)
USING HEADPHONES / EARPHONES
Maximum output voltage ≤150mV.
HEADPHONE VOLUME WARNING
Connect earphones with the volume set low and increase it if required. Prolonged
listening through some earphones at high volume settings can result in hearing
damage. When headphones / earphones are connected, no sound will be emitted from
the unit's speaker. Caution: Avoid listening to sound at levels which may be harmful to
your ears.
Continuous use of earphones at high volume can damage the user's
hearing.
GB - 8
INSTALLATION
Install the supporting stand
1. Pick out 2 screws form the stand head.
2. Put the screws into the hole of stand. Tight
the screw to fix the stand and stand head.
3. Slide the stand into the back of unit.
4. Adjust the stand head and lock the stand by
stand head's locker.
GB - 4
BASIC OPERATION
1. Connect the AC adapter to wall outlet and slide ON/OFF switch to turn on the unit.
2. Press the STANDBY/MODE button repeatedly to select different source mode:
HDTV/ AV.
3. In HDTV mode, press CH+/- to change the TV channel,
4. Press VOL+/ ►, VOL-/ ◄ buttons to adjust the volume level.
5. Press to cut off the sound temporarily, press this button again to resume the
sound.
6. Press and hold STANDBY/MODE button for 3 seconds to switch the unit to standby
mode; slide the ON/OFF switch to turn off the unit; disconnect the AC adapter from
wall outlet, the unit will be completely shut off.
SLEEP FUNCTION
In sleep mode, the unit will turn off automatically after a specified time.
You can select duration in minutes before the unit turns off automatically.
1. Press SLEEP button on remote control repeatedly to select 15-30-45-60-75-90-105-
120-OFF.
2. If the unit fall into sleeping mode, press STANDBY/MODE button on unit or button
on remote control to turn the unit ON.
DVB-T INSTALLATION GUIDE
Installation Guide
OSD Language English
Country England
EXIT EXIT OK Confirm
Press ▲ /▼ to select different item, press ◄ / ► to adjust the setting accordingly.
Press EXIT to return to main menu.
• OSD Language: To select the language of unit's menu.
• Country: To set country according to your location.
Note: Less or no channel could be received if "Country" setting is incorrect.
GB - 9
