SC10 Single Pump Controller
Installation and User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC10 and is the answer not in the manual?

Questions and answers

Related Manuals for 2iB SC10

Summary of Contents for 2iB SC10

  • Page 1 SC10 Single Pump Controller Installation and User Manual...

  • Page 2: Unpacking, Inspection And Recycling

     1 x SC10 Quick Reference Guide If any of these items are missing or damaged at the time of delivery, please contact 2iB Pty Ltd. Please retain the product packaging and return the product for inspection if damaged. A 4-20mA CT is required for snore control operation. This can be purchased separately from 2IB.
  • Page 3 The SC10 also has a pump cleaning feature. The pump will stop periodically to allow a backflush as water runs back down the discharge hose. This helps clear the impellor and the suction strainer of debris reducing the chance of blockage and cavitation, as well as increasing the flow rate and efficiency.
  • Page 4 (single- or three-phase) the variation of current with load will be smaller which may make the setup more critical. In particular, the Current Window setting may need to be smaller. Take a note of the current reading displayed on the SC10 and compare that for normal operation and snoring and use this as a guide.
  • Page 5 Start and Stop Pushbuttons. Alarm Relay Activation Alarm Relay Activates for … The SC10 has a single alarm output can be set to any combination of four functions and displayed externally with a fault lamp if desired. Ref DIP Setting Switches (6, 7, 8, 9) on front of SC10.
  • Page 6 CT current. Note: This settings is non-volatile. It is stored through power-cycles of the SC10. Display and LED Indication Current % Display PA = PAUSING.

  • Page 7: Troubleshooting

    Troubleshooting Question / Problem Answer   Pump Starts too early / often. Increase the Pump Cycle Time. The controller will wait longer before starting  Level does not rise high enough before the the pump. See section 5.2. pump starts. ...

  • Page 8: Specifications

    Frequency 45–65 Hz Power Consumption <10VA Motor Current Sensor 4-20mA input CT. Range to suit attached load. SC10 provides 24VDC drive for CT. Operating Temp 0-55 degrees Celsius Run Relay Contact Rating 5 A, 48 VAC Resistive, 1.5 A 48 VAC Pilot duty / AC12 Alarm Contact Rating 5 A, 48 VAC Resistive, 1.5 A 48 VAC Pilot duty / AC12...

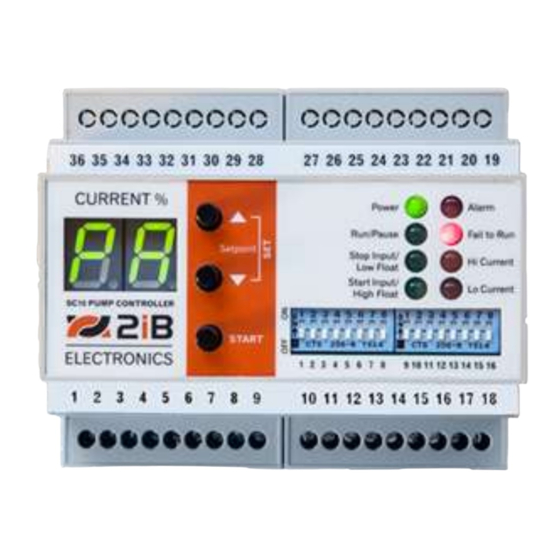

  • Page 9 SC10 Connections See section 12 Reference for terminal identification. Figure 1 – SC10 Front Panel Figure 2 - Connections...
  • Page 10 Pump starter wiring example Pump 415VAC/24VAC 250VA + 4-20mA F1-6A Ref – Line 23 24 VAC - 4-20mA Ref – Line F2-6A 24 VAC 24 VAC - A 24 VAC - N Power On Pump Run O/L 1 Emergency Stop Overload Fault O/L Panel Reset Overload Reset...

  • Page 11: Other Options

    Range Setting on the SC10 This gives a range of 10A and at FLC this shows 60%. (If you mount the SC10 so that its front panel is accessible then this change could be done safely without opening the starter panel.)
  • Page 12 Reference Terminals DIP Switches Power DC+ / AC Current Range 24VAC DC- / AC (Earth) Setting 12-24VDC Earth 100% (default) Pump Run Relay Alarm Relay 12.5% Pump Current Pump Run Time Target CT (4-20mA) Setting Digital Inputs DIN Common 3 min DIN 1: Start / High Float 5 min (default) DIN 2: Stop / Low Float...
  • Page 13 Remote / Local Configuration Mode (for Use with HMI) Normally, when used standalone, the SC10 is configured using the DIP switches. When used with a HMI, the SC10 has a remote configuration mode to enable configuration from the HMI (via the Modbus interface).
  • Page 14 Register Coil / Read Only Description Address Discrete (RO) or Address Read/Write (RW) Disable Snore Stop. Disable (Pause) Timer Start. Unused Unused Discrete Status Values Low Float / Stop Input is active. High Float / Start Input is active. Pump Run Relay is On. Alarm Relay is On.
  • Page 15 Software Version Number/Date: LSB = Least Significant Bit, MSB = Most Significant Bit. Legal 14.1 Product Warranty See Warranty information at www.2ib.com.au. 14.2 Document Subject to Change This Document: This document and its contents are subject to change without notice. 14.3 Third Party Software Acknowledgement FreeModbus Library: A portable Modbus implementation for Modbus ASCII/RTU.
  • Page 16 2iB Pty Ltd Tel. +61-7-3822 1005 4 Barkala St, Fax +61-7-3822 1008 Wellington Point, QLD support@2ib.com.au Australia www.2ib.com.au © 2018 2IB Pty Ltd. All Rights Reserved. SC10 Installation and User Manual V20180709...
