Summary of Contents for Pakedge Device & Software P2

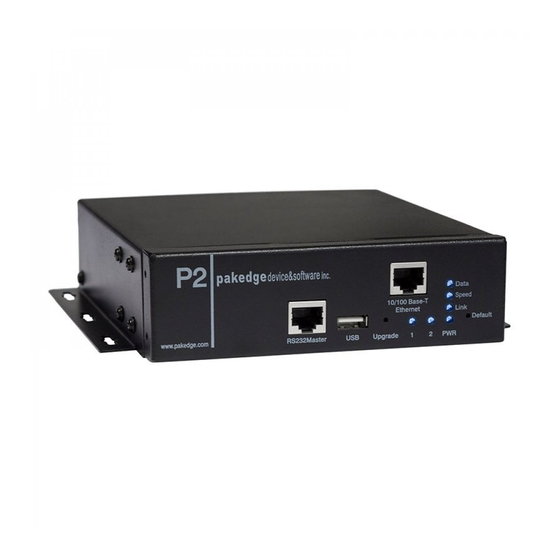

- Page 1 P2/P2E Boot Sequence Power Distribution Unit with Remote Power Cycling and Monitoring User Guide – Version 1.0...
-
Page 2: Table Of Contents
Table of Contents Introduction..............................1 P2 Package ..............................2 Installation ..............................3 Product Guide .............................. 4 Web Interface .............................. 5 System Operation Status .......................... 5 Outlet Setup ............................. 6 Outlet Timer Setup ........................... 7 User Account Setup ..........................8 System Control ............................8 Serial Port Setup............................10... -
Page 3: Introduction
Out of the box, the P2 is labeled for easy installation: Just plug in the modem, router and switches into Outlet 1 or Outlet 2 and you are ready to go. -
Page 4: P2 Package
P2 Package The standard P2 package contains a Power Distribution Unit with supporting hardware and software. The components of the package are: Power Distribution Unit Side Rack Mount Brackets Console Cable Quick Start P2 User Manual Version 1.0... -
Page 5: Installation
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, make sure the P2’s operating temperature is below the manufacturer’s specifications. B) Reduced Air Flow – The P2 should be installed in a rack with proper air flow for safe operations. -
Page 6: Product Guide
Product Guide P2 User Manual Version 1.0... -
Page 7: Web Interface
Web Interface Open your preferred web browser and type in the P2’s IP address in the address bar. IP Address: 192.168.1.210 You will be prompted to enter a User ID and a Password. Use the following: Default ID: pakedge Password:... -
Page 8: Outlet Setup
On/Off: Specifies the status of the port after the P2 reboots. If you reboot the P2, the status of the outlet will depend on whether it is set to ON or OFF. If set to OFF, the P2 will reboot and the port will be OFF. -
Page 9: Outlet Timer Setup
Duty Cycle. This parameter is meaningful if the Timer Loop Count is > 0. The value of this parameter should be 0 < Toggle Duration < Timer Period P2 User Manual Version 1.0... -
Page 10: User Account Setup
User Account Setup The P2 can allow up to 8 user accounts. By default, there are 2 accounts created: An “Admin” account and a “User” account. Use the following guidelines when creating user accounts: Admin: An admin account will be able to remove or change existing user accounts, take over power outlets or user serial console ports, and change system settings. - Page 11 Enable Telnet Anonymous User: Enables you to allow anonymous logins using Telnet with no need for a username or a password. Enable Command Control via Email: Enables you to send emails to the P2 to manage it from a remote location. ...
-
Page 12: Serial Port Setup
Serial Port Setup The Serial Port Setup menu already has pre-defined settings that would need to access the P2 using Telnet. When setting up a Telnet session, make sure the settings on your Telnet client match the settings under the Serial Port Setup menu. - Page 13 Access Control List (ACL) Enable: Enable or disable controlling client IP addresses to access the system. Network Connection Check Using This IP: This entry specifies an IP address or a URL that the P2 will ping periodically for verification of network connectivity if the network connection is down or inactive, and “AutoPing”...
-
Page 14: Help
Help The Help section for the P2 is a quick startup reference that includes general information about the P2. P2 User Manual Version 1.0... -
Page 15: Email Commands
By default the “username” and “password” are pakedge and pakedgep. The “command” is what you tell the P2 to do. For example, if you want to turn off all the ports on the P2 you would compose the email using the following: From:xxx@xxx.com... -
Page 16: Appendix A - Specifications
ICMP, IP, TCP/UDP, DHCP, Telnet, DNS, POP3/SMTP, SNMP, Network Protocols HTTP Operating Temperature F - 122 F ( 0℃ - 50℃ ) Storage Temperature F - 140 F ( -25℃ - 60℃ ) Humidity 10-90% RH P2 User Manual Version 1.0... -
Page 17: Appendix B - Technical Support
Appendix B – Technical Support Please visit our website for up-to-date support information: Website: www.pakedge.com Email: support@pakedge.com CONTACT INFORMATION: Pakedge Device & Software Inc. 1163 Triton Drive Foster City, CA 94404 U.S.A P2 User Manual Version 1.0... -
Page 18: Appendix C - Limited Warranty
God. P2 User Manual Version 1.0... - Page 19 In this case, the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Warranty Registration Please register Pakedge products at www.pakedge.com. This allows Pakedge to communicate product updates and service enhancements. P2 User Manual Version 1.0...
- Page 20 Prior to returning a defective Product directly to Pakedge, you must obtain a Return Material Authorization number and shipping instructions. Pakedge Device & Software Inc. 1163 Triton Drive Foster City, CA 94404-1213 U.S.A. 877-274-6100 Email: support@pakedge.com P2 User Manual Version 1.0...
- Page 21 1163 Triton Drive Foster City CA 94404 U.S.A Visit Us At: www.pakedge.com P2 User Manual Version 1.0...
