IP-NC328-VDZ
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP-NC328-VDZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Nace IP-NC328-VDZ

  • Page 1 IP-NC328-VDZ Quick Start Guide...
  • Page 2 IP-NC328-VDZ·Quick Start Guide About this Manual The manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the manual is subject to change, without notice, due to firmware updates or other reasons.
  • Page 3 IP-NC328-VDZ·Quick Start Guide Regulatory Information FCC Information Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 4 IP-NC328-VDZ·Quick Start Guide FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 IP-NC328-VDZ·Quick Start Guide See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point.
  • Page 6 IP-NC328-VDZ·Quick Start Guide ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region. Please refer to technical specifications for detailed information. ● Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard.
  • Page 7 IP-NC328-VDZ·Quick Start Guide ● Do not aim the camera at the sun or extra bright places. Blooming or smearing may occur otherwise (which is not a malfunction), and affect the endurance of the sensor at the same time. ● The sensor may be damaged by a laser beam, so when any laser equipment is in using, make sure that the surface of the sensor will not be exposed to the laser beam.
  • Page 8 IP-NC328-VDZ·Quick Start Guide disassemble the camera yourself. (We do not assume any responsibility for problems caused by unauthorized repair or maintenance.)

  • Page 9: Table Of Contents

    IP-NC328-VDZ·Quick Start Guide Table of Contents 1 Appearance Description ............... 9 2 Installation ..................11 Memory Card Installation ..........12 2.2 Mounting Preparation............ 12 2.3 Camera Mounting ............14 2.3.1 Ceiling Mounting..........14 2.3.2 Wall Mounting..........17 2.3.3 Pendant Mounting..........19 3 Setting the Network Camera over the LAN ........20 3.1 Wiring ................

  • Page 10: Appearance Description

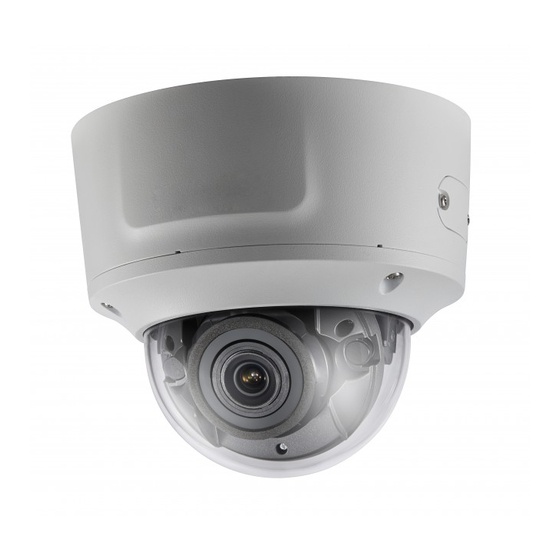

    IP-NC328-VDZ·Quick Start Guide 1 Appearance Description Figure 1-1 Overview of Dome Camera...
  • Page 11 IP-NC328-VDZ·Quick Start Guide Description Description Dome Junction Box Sealing Plugs Alarm input/output Audio input/output Lens Network Interface (PoE) Reset Button Power Interface (12 VDC) Memory Card Slot Video Out (BNC) Grounding screw Note: Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.

  • Page 12: Installation

    IP-NC328-VDZ·Quick Start Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12 VDC or PoE (802.3 af), please make sure your power supply matches with your camera.

  • Page 13: Memory Card Installation

    IP-NC328-VDZ·Quick Start Guide Memory Card Installation Steps: 1. Unscrew the memory card slot cover. Memory Card Cover Install Memory Card Figure 2-1 2. Insert the memory card into the memory card slot, and push to fully seat. 3. (Optional) To unmount the memory card, push to eject it.
  • Page 14 IP-NC328-VDZ·Quick Start Guide Unscrew the bubble. Dome Junction Mounting Plate Disassemble the Camera Figure 2-2...

  • Page 15: Camera Mounting

    IP-NC328-VDZ·Quick Start Guide Camera Mounting 2.3.1 Ceiling Mounting Before you start: Plan the cable routing before installation. This camera supports cable-routing through the ceiling and through the side outlet of the camera. ● If routing through the ceiling, cut a hole in ceiling according to the mounting and route the cables in advance.
  • Page 16 IP-NC328-VDZ·Quick Start Guide 2. (Skip if not needed) Route cables through conduit. Screw the supplied conduit joint to the conduit. Conduit Conduit Joint (Supplied) Connect the Conduit Joint to Conduit Figure 2-4 Fit the mounting plate over the the conduit joint using the tabs as a guide.
  • Page 17 IP-NC328-VDZ·Quick Start Guide Thread cables through the sealing plugs. Note: For RJ45-terminated cables, use the supplied cable routing tool. Sealing Plug Cable Routing Tool Route RJ45-terminated cable through Sealing Plug Figure 2-6 Junction Box Route Cables through Junction Box Figure 2-7...
  • Page 18 IP-NC328-VDZ·Quick Start Guide 5. Align the “FRONT” marks on junction box and mountaing plate, then secure the junction box to the mounting plate. Safety Rope Install Junction Box Figure 2-8 6. Hang the camera body on the safety rope. 7. Connect the cables to corresponding ports on the camera.
  • Page 19 IP-NC328-VDZ·Quick Start Guide 8. Affix the camera body to the junction box. Affix the Camera Body Figure 2-10 9. Adjust the viewing angle of the camera (aim). Use supplied BNC video out cable to connect the camera to a monitor. Power on the camera to obtain live image of the camera.
  • Page 20 IP-NC328-VDZ·Quick Start Guide Hold the lens to adjust the panning, tilting, and rotating position. Pan: 0° to 355° Rotate: 0° to 355° Tilt: 0° to 75° Adjust Viewing Angle Figure 2-12 10. Peel off the protective films and reinstall the dome to the...

  • Page 21: Wall Mounting

    IP-NC328-VDZ·Quick Start Guide This camera supports mounting with wall mounting brackets, and pendant mounting brackets. 2.3.2 Wall Mounting The wall mounting bracket is not included in the package. Note: When choosing a wall mounting bracket, the cap must match the mounting plate of the camera.

  • Page 22: Pendant Mounting

    IP-NC328-VDZ·Quick Start Guide 4. Route the cables through the cable hole on the mounting plate and secure the mounting plate to the cap. Set Screw Install Mounting Plate to Bracket Cap Figure 2-14 5. Repeat step 4 to step 10 of Section 2.3.1 Ceiling Mounting to complete camera installation.
  • Page 23 IP-NC328-VDZ·Quick Start Guide Set Screw Install the Pendant Mounting Bracket Figure 2-15 3. Align the screw holes of the mounting plate with the corresponding screw holes of the cap. 4. Route the cables through the cable hole in the mounting plate and secure the mounting plate to the cap.

  • Page 24: Wiring

    IP-NC328-VDZ·Quick Start Guide 3 Configuring the Camera over the LAN Note: By using this product, you acknowledge that the use of the product with Internet access might present network security risks. For avoidance of any network attacks and information leakage, please strengthen your network protection.

  • Page 25: Activating The Camera

    IP-NC328-VDZ·Quick Start Guide 3.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, activation via SADP, and activation via Client Software are all supported. Activation via SADP software and activation via web browser will be shown as examples to illustrate camera activation.
  • Page 26 IP-NC328-VDZ·Quick Start Guide Figure 3-3 Activation Interface(Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including...
  • Page 27 IP-NC328-VDZ·Quick Start Guide Obtain the SADP software from the supplied disk or the official website, and install SADP according to the prompts. 1. Run the SADP software to search for cameras on the LAN. 2. Select the inactive camera in the device list.

  • Page 28: Modifying The Ip Address

    IP-NC328-VDZ·Quick Start Guide STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.
  • Page 29 IP-NC328-VDZ·Quick Start Guide Steps: 1. Run the SADP software. 2. Select an activated camera. 3. Change the device IP address to the same subnet as your computer by either modifying the IP address manually or checking the Enable DHCP checkbox.
  • Page 30 IP-NC328-VDZ·Quick Start Guide Note: You can enable the STGO2 service for the device during activation. Refer to Chapter 5.1 for detailed information. 4. Input the admin password and click Modify to save IP address modification. Batch IP address modification is supported by the SADP software.

  • Page 31: Accessing Via Web Browser

    IP-NC328-VDZ·Quick Start Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer v8.0 and above, and Google Chrome v18 and above (via IE Tab).
  • Page 32 IP-NC328-VDZ·Quick Start Guide 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 33: Operating Via Stgo2 App

    IP-NC328-VDZ·Quick Start Guide 5 Operating via STGO2 App Purpose: STGO2 is an application for mobile devices. With the app, you can view the live stream of the camera, receive alarm notifications and so on. 5.1 Enable STGO2 Service on Camera...
  • Page 34 IP-NC328-VDZ·Quick Start Guide Service” “Privacy Policy” Figure 5-1 Verification Code Setting (SADP) Note: The verification code is required when you add the camera to the STGO2 app. 3. Click and read the "Terms of Service" and "Privacy Policy". 4. Confirm and save the settings.
  • Page 35 IP-NC328-VDZ·Quick Start Guide Steps: 1. Access the camera through a web browser. (Refer to Chapter 4) 2. Enter the platform access configuration interface: Configuration > Network > Advanced Settings > Platform Access STGO2 dev.guardingvision.com Figure 5-2 Platform Access Configuration (Web) 3.

  • Page 36: Stgo2 Setup

    IP-NC328-VDZ·Quick Start Guide 5.2 STGO2 Setup Steps: 1. Download and install the STGO2 app by searching “STGO2” in the App Store (iOS) or Google Play (Android). 2. Launch the app and register for a STGO2 user account. 3. Log into the STGO2 app after registration.
  • Page 37 IP-NC328-VDZ·Quick Start Guide You can find the QR code on the camera or on the camera packaging. Figure 5-4 Scan QR Code Note: If the QR code is missing or too blurry to be recognized, you can also add the camera by tapping the icon and inputting the camera's serial number.

  • Page 38: Initializing The Memory Card

    IP-NC328-VDZ·Quick Start Guide Initializing the Memory Card Steps: Check the memory card status by clicking on "Storage Status" in the "Device Settings" interface. If the memory card status displays as "Uninitialized," click to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
