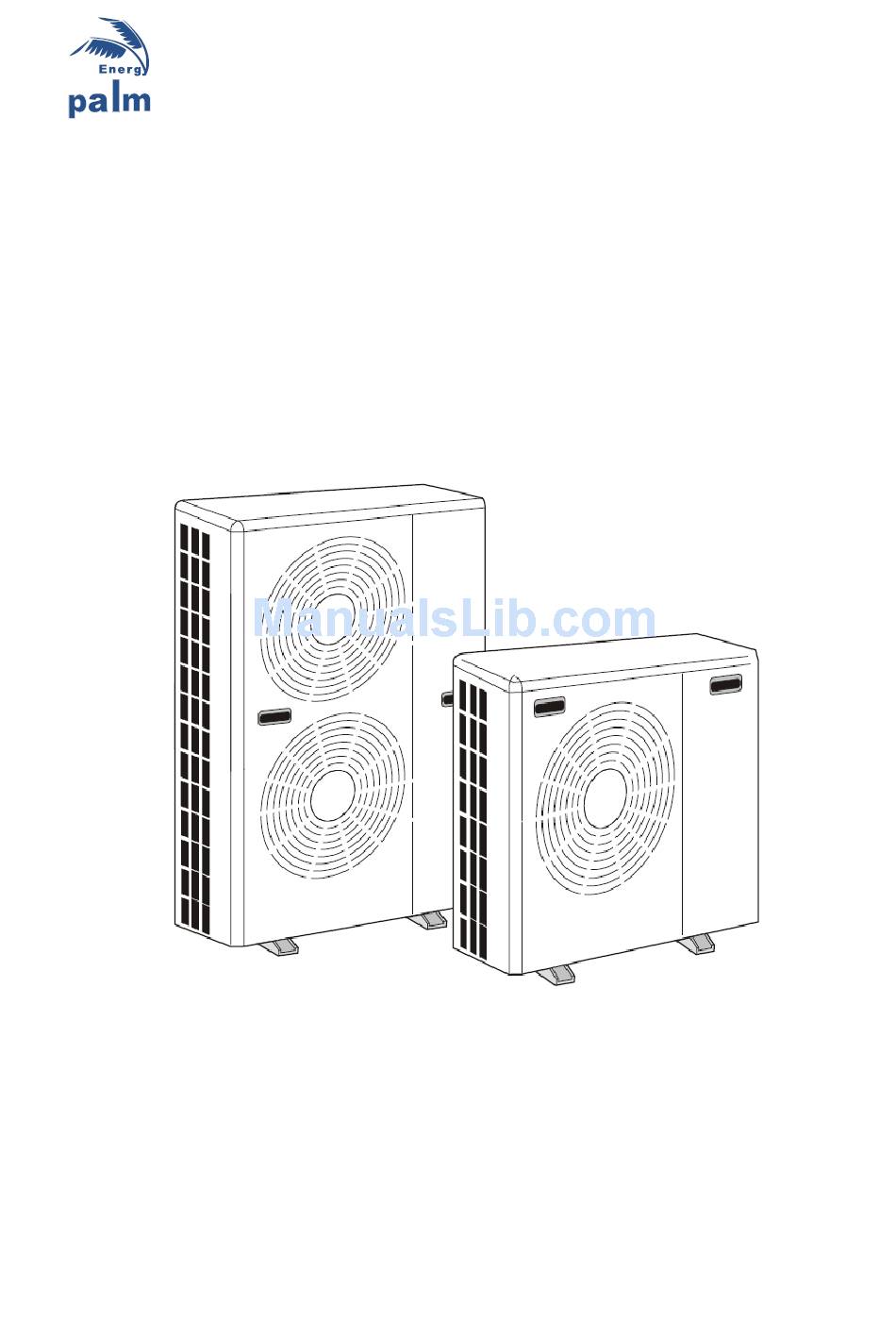

- Page 1 DC INVERTER MONOBLOCK AIR TO WATER HEAT PUMP AND CHILLER User Manual REV:WR-2017V8 - 1-...
-
Page 2: Table Of Contents
Contents list 1. General ------------------------------------------------------------------------- 3 2. System description ---------------------------------------------------------- 3 3. Installation --------------------------------------------------------------------- 3-10 4. Controller manual------------------------------------------------------------ 11-19 5. Specification ------------------------------------------------------------------ 19-21 6. Maintenance------------------------------------------------------------------- 22 7. How to get the most out of your heat pump--------------------------- 23 Safety notice Never perform any cleaning operations before switching off the external isolator Do not modify safety or control devices without consultation with the manufacturer Do not pull, detach or twist the electrical cables coming from the unit... -
Page 3: General
1. GENERAL The AH9/11/16 model is an air source heat pump for space heating and sanitary water heater for houses, apartment blocks and small industrial premises. Outdoor air is used as a heat source creating free energy to heat your home. - Page 4 3.1-4: Controller: The AH9/11/16 is equipped with an external electronic controller that handles all functions necessary for heat pump operations. Defrosting, stop at max/min temperature, connection of the compressor heater as well as enabling the aux electrical heater, monitoring of motor protection and pressure switches are all controlled.
- Page 5 The safety equipment must be installed in accordance with current regulations for all installation options. When connecting with the AH9/11/16, the total water volume in the heat pump pipe system and buffer tank must be at least 10 liters per KW of output.
- Page 6 D). 3X8/11/16 Installation. Space Heating/Cooling + DHW. Solar Application 1 DHW with solar heating Solar hot water system antifreeze glycol Tap Water Inlet antifreeze 1. Heat Pump glycol 3. DHW sensor 4. Water filter 5. Ball valve Supply 6. Air discharge valve Return Solar Application 2 - 6-...
- Page 7 Solar Application 3 (Most saving to use solar for space heating and DHW) Pipe Connection 28mm pipe is recommended. The pipe work must be flushed before the heat pump is connected, so that any contaminants do not damage the components parts. The heating/cooling water inlet and outlet direction must be connected according to the marked areas on the heat pump.
- Page 8 AH9/11/16, which takes the outdoor temperature and temperature in pipe into consideration to decide whether to circulate water within the system. Shut-off valves and drain valves are fitted so that AH9/11/16 can be emptied in the event of prolonged power failures.
- Page 9 Wiring Diagram 3 Phase 3.4-1: Installation Drawing - 9-...
- Page 10 3.4.2 Important: You need to install a separate circuit breaker in all installations. 3.4-3: A Water Flow Switch must be installed to avoid plate heat exchanger broken. A water flow switch must be installed at the water loop near the plate heat exchanger to protect the heat exchanger and compressor.
-
Page 11: Controller Manual
Fill the system slowly ensuring bleed valves are open (if not automatic). 3.5-2: Inspection Before Start up Mechanical Inspection: a. Check the cabinet and inside pipe system for possible damage during transportation. b. Check that the heating water circuit is filled and well vented. Check the pipe system for leaks. c. - Page 12 When parameter P27= 0, E2 is AC heating control port, When parameter P27 = 1, E2 is 2 heat source control port d) DHW Auxiliary Electric Heater E1 When parameter P27 = ―1‖, When E2 not start, E1 will work as normal DHW assistant heater.
- Page 13 otherwise set out by a engineer. The defrost time will vary depending upon the conditions the heat pump is working in. The length between defrosts will either extend or contract depending upon the parameters set. 4.3.1、 wire controller There are 6 keys for operation. Auto restart function, weekly timer. 16 17 18 19 20 21 22 23 24 4.3.2、Buttons definition （1）...
- Page 14 4.4.2 Modify the setting parameters A, When the selected mode is running, the unit will run in accordance with the factory set default values or the last modification of the temperature. B, The modification method of set the temperature value In the On or Standby cases, press M and keys at the same time 3 seconds, the current operation mode flashes;...
- Page 15 press▲ ▼ to set the date，press for confirmation。Then the minute digit flash. As below: press▲ ▼ to set the date，press for confirmation。Then exit. 4.4.4、timer setting One day can set 3 points for on, 3 poins for off . Point 1、3、5 is on，can set the working mode，2、4、6 is off。...
- Page 16 Timer setting is valid, icon flash, as below. (5) Press up key, timer icon does not flash, means setting is valid, press to confirm. Press down key, timer icon disappear, means the setting is not valid （6） Press up and key at the same time for 3 seconds, all the setting is cleared.
- Page 17 4.5 . System Protection and Error Codes If error，unit display―Ex‖ ―Px‖ or―Fx‖。 For example：E2、P5 code meaning LED2 remark compressor overheat or discharge Decided by outdoor unit high temp protection red and flash Outdoor air temp sensor error Flash 3 times Outdoor air temp sensor open circuit or short circuit pipe or return air temp sensor error Flash 6 times...
- Page 18 AC temp differentia 2~15℃，minus differentia 2℃ Coil copper pipe temp to active defrost -20~5℃ 0℃ water source side anti freeze temp (for Geo heat pump) -20~5℃ 2℃ ℃ Coil copper pipe temp to stop defrost 10~35℃ defrost time (defrost action lasting max time, will stop defrost if 15~99 minutes longer than this value) defrost interval time ( time between 2defrosts, less than this value, it...
- Page 19 setting on the work site. In case reset all the parameters, the below points have to be reset according to below table for different model, otherwise the unit can not work properlly. Correct Parameter value Code Meaning Range 11KW 16KW Correct Correct Correct...
-
Page 20: Specification
parameter D AC leaving water temp -30~97℃ hot water pipe temp -30~97℃ solar pipe temp -30~97℃ 0（cooling only） ；1（heating only） DIP switch input state 0（air source） ；1（water source） DIP switch input state 0（DHW invalid） ；1（DHW valid） DIP switch input state 0（G1 valid）... - Page 21 5.1 Internal View System Drawing AH9/11/16/17S/25S - 21-...
- Page 22 Dimensions: Model 1090 16/17S 1280mm(for 16/17S) 1462mm (for 25S) - 22-...
-
Page 23: Maintenance
Maintenance Maintenance and Cleaning for User It is good practice to inspect your heat pump regularly. Maintenance should be carried out at least annually to maintain a good lifespan of your heat pump. 1. Regularly clean the Y type filters every 6 months to ensure that the system is clean and to avoid blockage to the system. -
Page 24: How To Get The Most Out Of Your Heat Pump
How To Get The Most Out Of Your Heat Pump It is important to understand that you should operate heat pumps differently to conventional heating systems such as gas boilers. Below are some points you should be aware of: Since heat pumps produce water at a lower temperature (than gas boilers), it is important to remember the heat up time of your property is slower.
