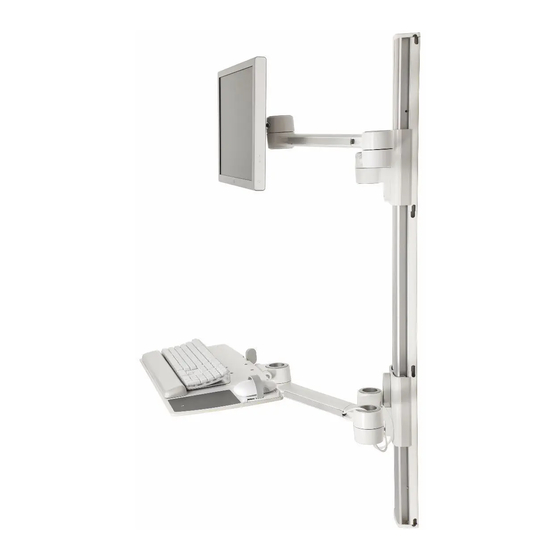

Summary of Contents for Humanscale V7
- Page 1 Installation Instructions...
- Page 2 b. Choose the desired INSTALLATION HARDWARE hole location for top fastener, ideally 66” to Hardware Kit 68” off the floor. Drill hole and install appropriate 66 - 68 “ fastener. c. Hold Track against the wall and fasten using the 10 mm Flat Wrench Two-Prong Spanner Wrench Hex Key (2mm)
- Page 3 Note: Release Handle will b. Slide Aluminum Bushing into not function properly unless top Slider Assembly (B), cable is evenly distributed ensuring set screw is aligned throughout the arm. with the small notch in the mount. Be sure Plastic Washer d.
- Page 4 STEP 5: ATTACH MONITOR TO CABLE MANAGEMENT MONITOR ARM a. Attach appropriate VESA a. Route monitor cables starting from Monitor going bracket to Monitor. to Track. i. Place VESA Bracket in position on back of i. Remove gray arm covers Monitor with Lips (A) on from one side of Monitor the left and right.
