2SC0435T
Target
2SC0435T Description and Application Manual
Dual-Channel High-power Low-cost IGBT Driver
Abstract
The new low-cost SCALE-2 dual-driver core 2SC0435T combines unrivalled compactness with broad
applicability. The driver was designed for universal applications requiring high reliability. The 2SC0435T drives
all usual high-power IGBT modules up to 1700V. The embedded paralleling capability allows easy inverter
design covering higher power ratings. Multi-level topologies are also supported.
The 2SC0435T is the most compact driver core in its power range available for industrial applications, with a
footprint of only 57.2 x 51.6mm and an insertion height of max. 20mm. It allows even the most restricted
insertion spaces to be efficiently used.

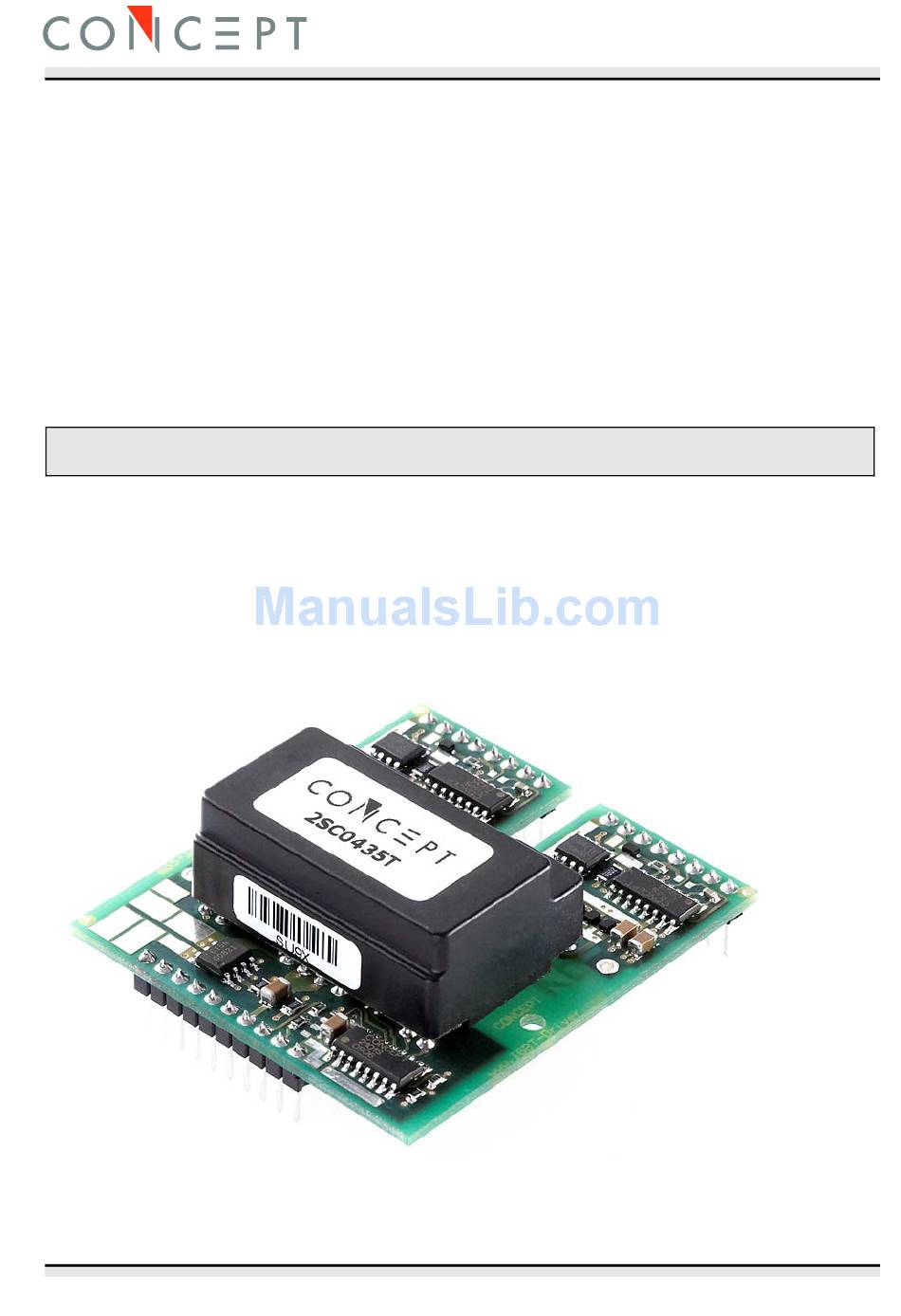

Fig. 1 2SC0435T driver core
IGBT-Driver.com
Page 1
Advertisement
Table of Contents
Summary of Contents for Concept2 2SC0435T
- Page 1 Multi-level topologies are also supported. The 2SC0435T is the most compact driver core in its power range available for industrial applications, with a footprint of only 57.2 x 51.6mm and an insertion height of max. 20mm. It allows even the most restricted insertion spaces to be efficiently used.
-
Page 2: Table Of Contents
Active clamping (ACLx) ......................11 Gate turn-on (GHx) and turn-off (GLx) terminals ..............11 How Do 2SC0435T SCALE-2 Drivers Work in Detail?..............12 Power supply and electrical isolation ..................12 Power-supply monitoring...................... 12 IGBT and MOSFET operation mode ..................12 monitoring / short-circuit protection ................ -
Page 3: Driver Overview
Target Driver Overview The 2SC0435T is a driver core equipped with CONCEPT’s latest SCALE-2 chipset /1/. The SCALE-2 chipset is a set of application-specific integrated circuits (ASICs) that cover the main range of functions needed to design intelligent gate drivers. The SCALE-2 driver chipset is a further development of the proven SCALE technology /2/. - Page 4 2SC0435T Description and Application Manual Mechanical Dimensions Fig. 3 Mechanical drawing The primary side and secondary side pin grid is 2.54mm (100mil) with a pin cross section of 0.64mmx0.64mm. Total outline dimensions of the board are 57.2mmx51.6mm. The total height of the driver is max.
- Page 5 2SC0435T Target Pin Designation Pin No. and Name Function Primary Side DC/DC converter supply Status output channel 1; normally high-impedance, pulled down to low on fault Status output channel 2; normally high-impedance, pulled down to low on fault Mode selection (direct/half-bridge mode) Set blocking time Supply voltage;...
-
Page 6: Recommended Interface Circuitry For The Primary Side Connector
The connecting distance between ground pins must be kept at a minimum. Description of Primary Side Interface General The primary side interface of the driver 2SC0435T is very simple and easy to use. The driver primary side is equipped with a 10-pin interface connector with the following terminals: •... -
Page 7: Vdc Terminal
2SC0435T Target VDC terminal The driver has one VDC terminal on the interface connector to supply the DC-DC converters for the secondary sides. VDC should be supplied with 15V. It is recommended to connect the VCC and VDC terminals to a common +15V power supply. -
Page 8: Ina, Inb (Channel Drive Inputs, E.g. Pwm)
2SC0435T Description and Application Manual The value of the dead time T is determined by the value of the resistor R according to the following formula (typical value): μ Ω ⋅ where 0.6μs< <4.1μs and 72kΩ< <182kΩ INA, INB (channel drive inputs, e.g. PWM) INA and INB are basically drive inputs, but their function depends on the MOD input (see above). -
Page 9: Recommended Interface Circuitry For The Secondary Side Connectors
Driver 2SC0435T Cacl2 4.7k Rg,off1 Gate 1 Rg,on1 VISO1 Channel 1 Emitter 1 COM1 Rth1 REF1 120k Rvce1 VCE1 ACL1 Collector 1 Racl1 Cacl1 Fig. 6 Recommended user interface of 2SC0435T with advanced active clamping (secondary sides) IGBT-Driver.com Page 9... -
Page 10: Description Of Secondary Side Interfaces
2SC0435T Description and Application Manual Description of Secondary Side Interfaces General Each driver’s secondary side (driver channel) is equipped with an 8-pin interface connector with the following terminals (x stands for the number of the drive channel 1 or 2): •... -
Page 11: Active Clamping (Aclx)
Basic active clamping topologies implement a single feedback path from the IGBT’s collector through transient voltage suppressor devices (TVS) to the IGBT gate. The 2SC0435T supports CONCEPT’s advanced active clamping, where the feedback is also provided to the driver’s secondary side at pin ACLx: as soon as the voltage on the right side of the 20Ω... -
Page 12: How Do 2Sc0435T Scale-2 Drivers Work In Detail
The turn-off voltage is set to 0V. This MOSFET mode is activated by connecting the secondary-side terminals COMx and VEx. If 2SC0435T drivers are to be used in the MOSFET mode, please consult CONCEPT’s technical support service. -
Page 13: Vce Monitoring / Short-Circuit Protection
Overcurrent protection has a lower timing priority and is recommended to be realized within the +Vdc host controller. In order to ensure that the 2SC0435T can be applied as universally as possible, the response Collector/Drain time capacitor C is not integrated in the driver, Voltage but must be connected externally. -
Page 14: Parallel Connection Of 2Sc0435T
If parallel connection of 2SC0435T drivers is required, please consult CONCEPT’s technical support service. 3-level or multilevel topologies If 2SC0435T drivers are to be used in 3-level or multilevel topologies, please consult CONCEPT’s technical support service. Desaturation protection with diode network “Collector... -
Page 15: The Information Source: Scale-2 Driver Data Sheets
2SC0435T Target The Information Source: SCALE-2 Driver Data Sheets CONCEPT offers the widest selection of gate drivers for power MOSFETs and IGBTs for almost any application requirements. The largest website on gate-drive circuitry anywhere contains all data sheets, application notes and manuals, technical information and support sections: www.IGBT-Driver.com... -
Page 16: Information About Other Products
2SC0435T Description and Application Manual Ordering Information The general terms and conditions of delivery of CT-Concept Technologie AG apply. Type Designation Description 2SC0435T2A0-17 Dual-channel SCALE-2 driver core Product home page: www.IGBT-Driver.com/go/2SC0435T Refer to www.IGBT-Driver.com/go/nomenclature for information on driver nomenclature Information about Other Products...
