Inaxsys IN-84POE User Manual

IN-84POE
User Manual
8 Port Fast Ethernet
with 4 PSE PoE Switch

FCC Warning

This device has been tested and found to
comply with limits for a Class A digital device,
pursuant to Part 15 of FCC
These limits are designed to provide
reasonable protection against harmful
interference when the equipment
operated in a commercial environment.
This equipment generates
and radiates radio frequency energy and,
if not installed and used in accordance with
the user manual, it may cause interference
in which case users will be required to
correct interference at their own expenses.
CE Warning
This is a Class A product. In a domestic
environment, this product may cause radio
interference in which case the user may
be required to take adequate measures.

Introduction

This switch provides 8 10/100M ports. It was
designed for easy installation and high
performance in an environment where traffic
is on the network and the number of users
increases continuously.
It consists of 4 PSE/PoE ports. That can solve
the limitation of the power outlet location and
offer the system designer a flexible solution to
locate the network device everywhere.
The compact rigid desktop size
specifically designed for small to medium
workgroups. It can be installed where space
is limited; moreover, it provides smooth
network migration and easy upgrade to
network capacity.
8272 Pascal Gagnon


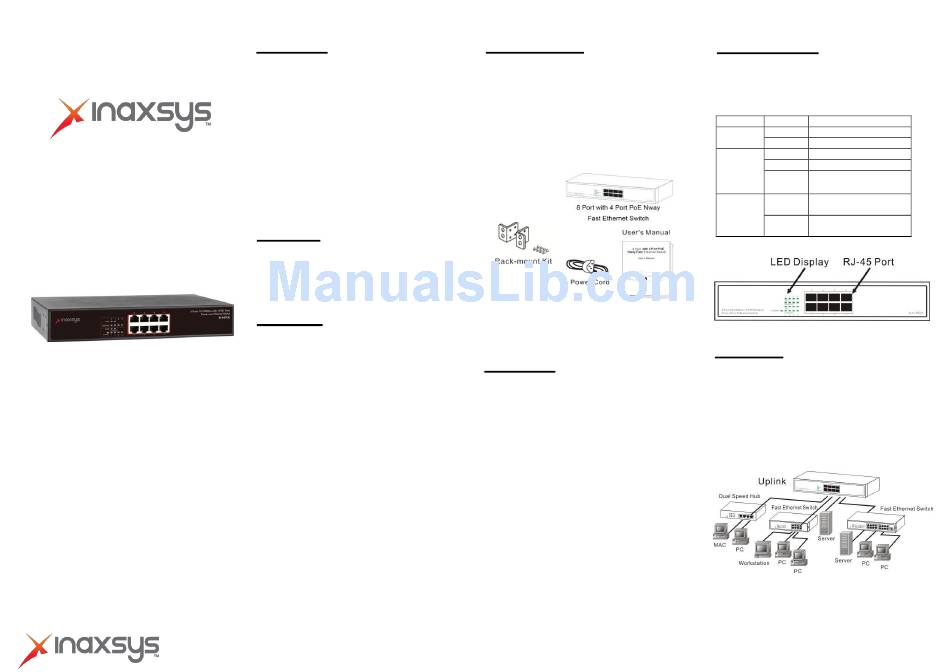

Package Contents

Before you start the installation of the switch,
please verify that your package contains the
Rules. following items:
 One PoE Fast Ethernet Switch
 One Power Cord
is
 One User Manual
 Rack-mount Kit
Note: If any of these items is found missing or
damaged, please contact your local supplier
for replacement.

Key Features

 8 Port 10/100M Nway (Auto-negotiation)
Switch
 4 PSE/PoE function ports
 Supporting the power Max. 15.4 W for each
PSE/PoE port
 11" Desktop size with metal case
a 19" cabinet by
 Can be installed in
was
rack-mount kits
 Auto-learn of networking configurations
 Auto-detect full/half-duplex modes for any
port
 Dedicated full-duplex 200Mbps bandwidth
 Store-and-Forward switching methods
 IEEE 802.3x flow control for full-duplex and
back-pressure flow control for half-duplex
 Non-blocking & Non-head-of-line blocking
full wire speed forwarding
 Auto-MDI/MDI-X function for any port
Saint-Leonard, Quebec, Canada
 

Front Panel (LEDs)

 Smart plug & play
Led Indicators of 8 Port with 4 Port
PoE 10/100M Switch
LED Status
Power On
Off
LINK/ACT On
Off
Flashing
PoE On
Off

Connections

Switch/Hub to this 8 Port with 4 Port
PoE Fast Ethernet Switch
This switch provides automatic crossover
detection functionality for any port.
simple and friendly to up-link to another switch
without crossover cable.
H1P 1Y4 www.inaxsys.com

Description
Power is on.
Power is off.
Port is for connection.
No connection.
Data is transmitting or
receiving
Port is linked to Power
Device
No Power Device is
connected
It is
