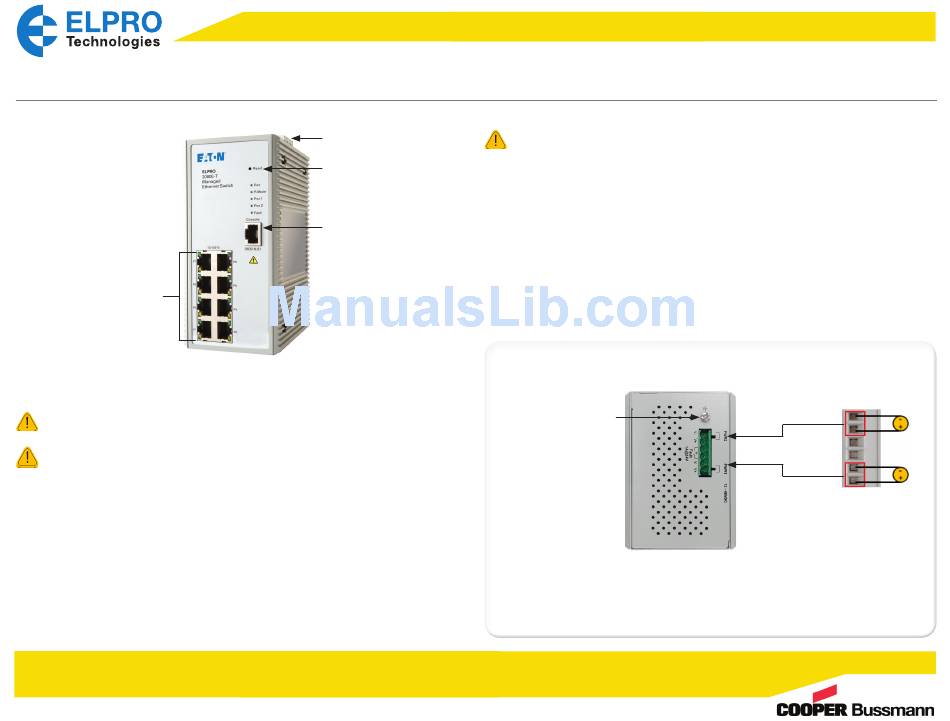

2080E-T MANAGED ETHERNET SWITCH INSTALLATION GUIDE
10/100 TX RJ-45 Ethernet Ports (8)
Power Input and Fault Alarm Contact Wire Gauge: 12–24 AWG RJ-45.
Port Connection: Use four twisted pair Cat 5, 5e, or 6 cables less than 100 meters long.
NOTE This equipment is suitable for use in Class I, Division 2, Groups A, B, C, and D or
non-hazardous locations only.
WARNING – EXPLOSION HAZARD!
• Do not disconnect equipment while the circuit is live unless the area is known to be free
of ignitable concentrations.
• Do not disconnect equipment unless power has been removed or the area is know to be
non-hazardous.
• Substitution of any components may impair suitability for Class I, Division 2.
• The area must be known to be non-hazardous before servicing or replacing the unit and
before installing the unit.
• These devices are open-type devices that are to be installed in an enclosure suitable for
the environment. The Console port connector is not for operational or maintenance use
in hazardous locations. Use of the Console port connector in hazardous locations could
result in an explosion.
©2014 Cooper Bussmann
www.cooperbussmann.com/wirelessresources
3/7
Terminal Block for Power 1,
Power 2 and Fault Alarm Contact
Reset Button
Conditions of Safe Use
RS-232 Console Port
• These devices are to be installed in an ATEX-certified IP54 (as defined in IEC 60529) enclosure,
• These devices are for use in an area of not more than pollution degree 2, in accordance with IEC
• Provision shall be made to prevent the rated voltage from being exceeded by the transient
DC Power Input Range:
12VDC–48VDC
1. Insert DC power wires into the contacts for Power Supply 1 and 2.
2. Tighten the terminal screws to ensure that the wires do not come loose.
Page 1 of 2
WARNING – CHEMICAL EXPOSURE HAZARD!
Exposure to some chemicals may degrade the sealing properties of materials used in the
sealed relay device. It is recommended to inspect the sealed relay device periodically and to
check for any degradation of the materials and replace the complete product (not the sealed
device) if any degradation is found.
and accessible only by the use of a tool.
60664-1.
disturbances of more than 140% of the peak-rated voltage.
POWER SUPPLY WIRING
2080E-T
Surge EARTH
Version 1.1
Power Supply 2*
DC
DC
Power Supply 1
*Power Supply 2 is used for
redundant supplies.
