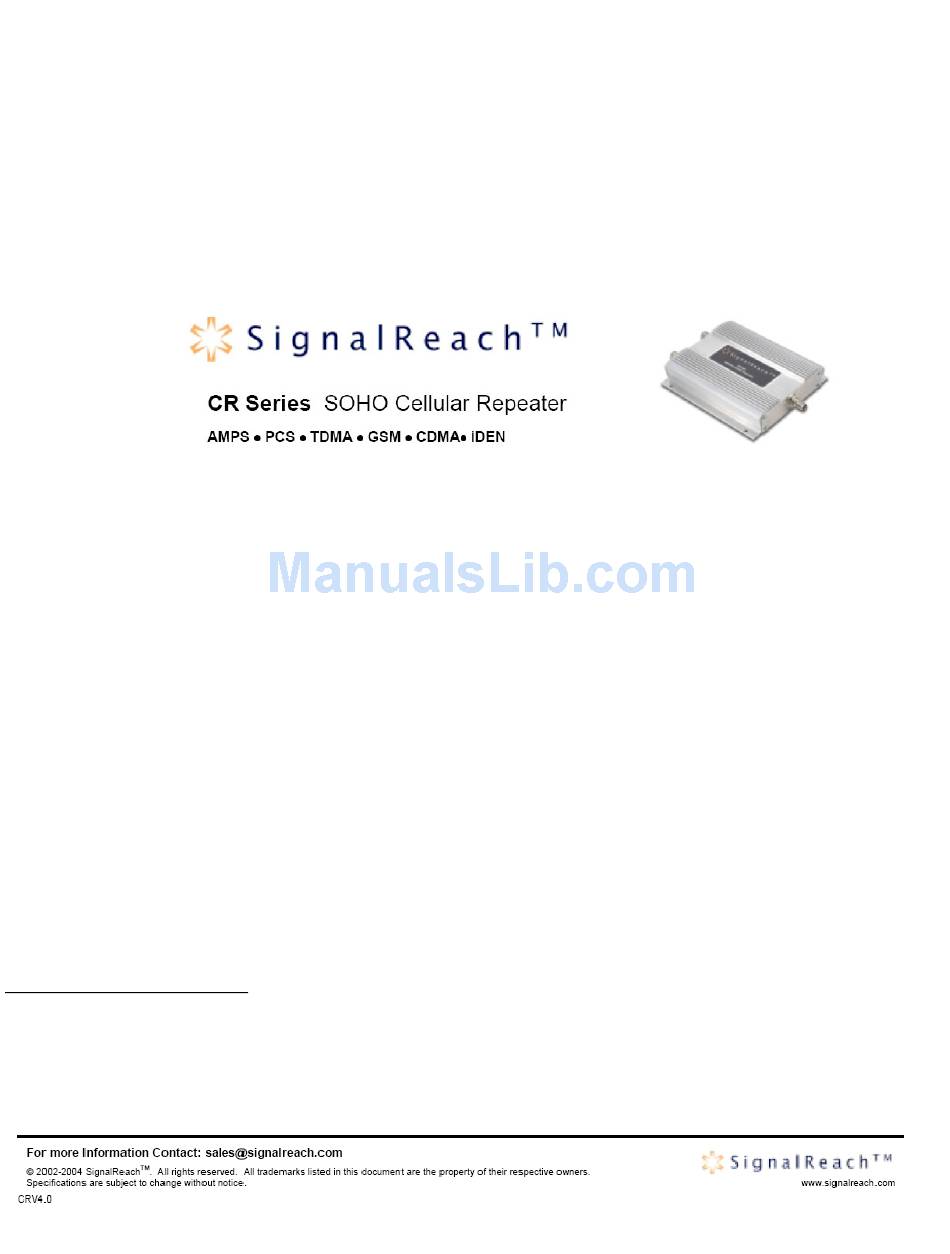

Installation & User Manual
CR100 Bi-Directional Repeater
Document Number: 102-2001-001
Product release:
Document version:Prelim 2.02
Date:Jan 2004
4
Copyright1 Printing2Legal statements3 Trademarks
1Copyright 2000- 2004 SignalReach Inc., All Rights Reserved
2Printed in Canada
3Information is subject to change without notice. Arrista Technologies Inc. reserves the right to make changes in design or components as progress in
engineering and manufacturing may warrant.
4
Trademarks are property of their respective owners
Advertisement
Table of Contents
Related Manuals for SignalReach CR100
Summary of Contents for SignalReach CR100
- Page 1 Date:Jan 2004 Copyright1 Printing2Legal statements3 Trademarks 1Copyright 2000- 2004 SignalReach Inc., All Rights Reserved 2Printed in Canada 3Information is subject to change without notice. Arrista Technologies Inc. reserves the right to make changes in design or components as progress in engineering and manufacturing may warrant.
- Page 2 Linear operation is guaranteed under all conditions. The CR100 allows up to two indoor antennas to be used without the need of external components. Its auxiliary indoor antenna port allows a second indoor zone to be easily connected. The repeater can be powered by its AC adapter or through the in-building primary subscriber antenna port using an optional power inserter.
- Page 3 This product is designed for installations where cellular coverage is available outside the building, and indoor coverage is inadequate. CR100 Features: Easy Installation – No calibration required • Automatic feedback detection and warning circuitry •...
- Page 4 As well, the automatic gain/level control ensures that in normal operation the downlink and uplink gain mirror each other. The CR100 also has primary and secondary subscriber ports, allowing the repeater to double the in-building coverage area.
- Page 5 Installation The repeater unit should be installed in a sheltered area, it’s operating temperature range is extensive, but is not sealed to prevent water (rain) Procedure ingress. The repeater unit should not be installed in an area where the ambient temperature is expected to exceed +60°C. The indoor and outdoor antenna locations must be chosen carefully to avoid re-generative feedback.
- Page 6 • To ensure compliance to FCC rules and regulations, Arrista recommends that trained technicians install this product. • The SignalReach CR100 does not come packaged with cabling or any antennae. In order to satisfy FCC regulations pertaining to Maximum Permissible Exposure, specified antenna gain (dBi) for the outdoor donor antenna should be limited to 18 dBi or less, while the gain of the indoor subscriber antenna should be limited to 9dBi or less.
- Page 7 This uses the third pin in the power connector. This pin is rated at 12V, 200mA and is at ground potential when a fault condition exists. Product The CR100 does not require maintenance, as long as the it is properly installed following the guidelines stated in this manual. Arrista recommends Maintenance...
-
Page 8: Specifications
Specifications RF Specifications Uplink Downlink Frequency Range 824-849 MHz 869-894 MHz Maximum Output Power + 20dBm +15dBm Maximum Gain 60 dB 60 dB Poor Isolation Detection & If re-generative feedback between indoor and outdoor Warning Indicator antennae is detected, condition will be indicated with an amber LED indicator Maximum Possible Human exposure to non-ionizing radiation meets or exceeds...
