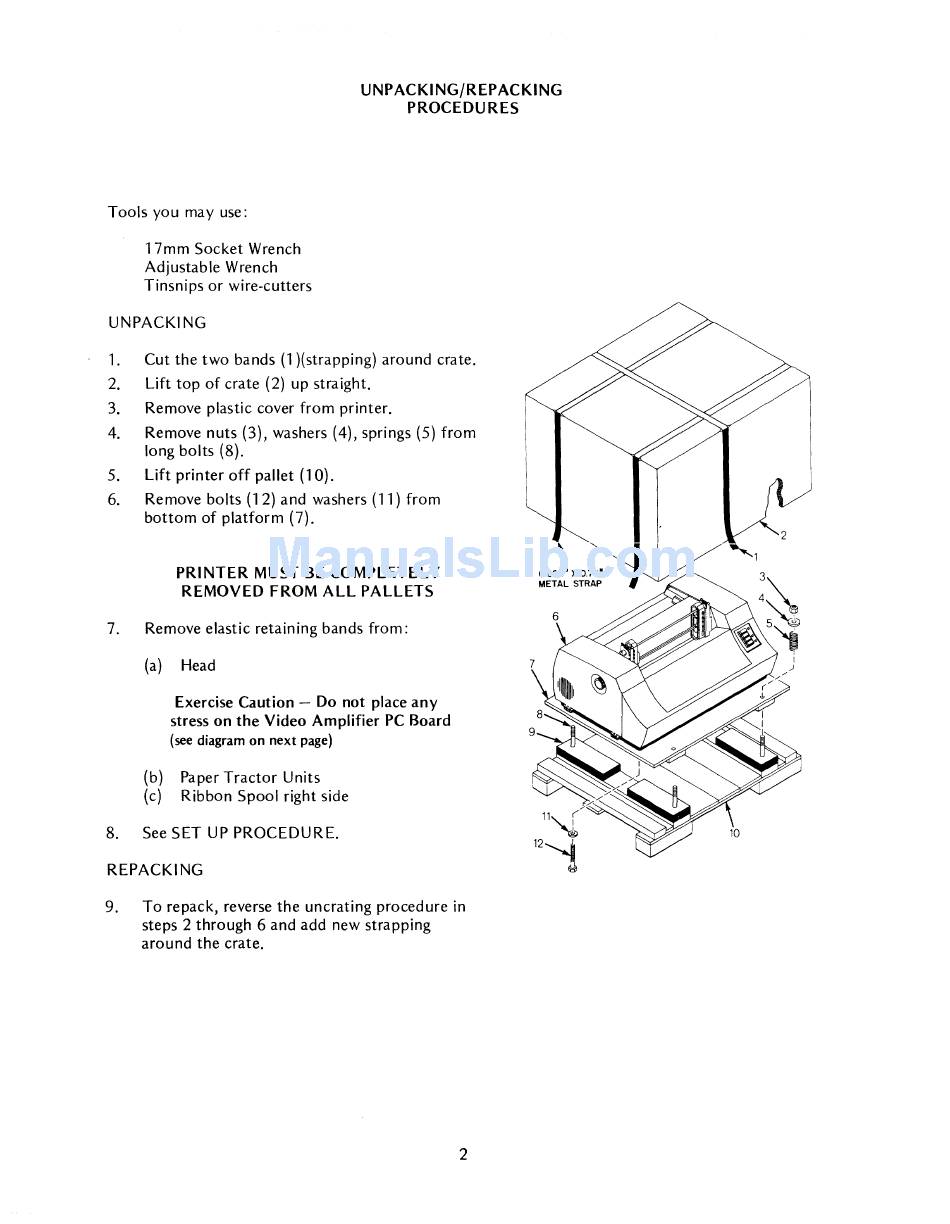

UNPACKING/REPACKING
PROCEDURES
Tools you may use:
17mm Socket Wrench
Adjustable Wrench
Tinsnips or wire-cutters
UNPACKING
1. Cut the two bands (1 )(strapping) around crate.
2. Lift top of crate (2) up straight.
3. Remove plastic cover from printer.
4. Remove nuts (3), washers (4), springs (5) from
long bolts (8).
5. Lift printer off pallet (10).
6. Remove bolts (12) and washers (11) from
bottom of platform (7).
PRINTER MUST BE COMPLETELY
REMOVED FROM ALL PALLETS
7. Remove elastic retain ing bands from:
(a) Head
Exercise Caution - Do not place any
stress on the Video Amplifier PC Board
(see diagram on next page)
(b) Paper Tractor Units
(c) Ribbon Spool right side
8. See SET UP PROCEDURE.
REPACKING
9. To repack, reverse the uncrating procedure in
steps 2 through 6 and add new strapping
around the crate.
