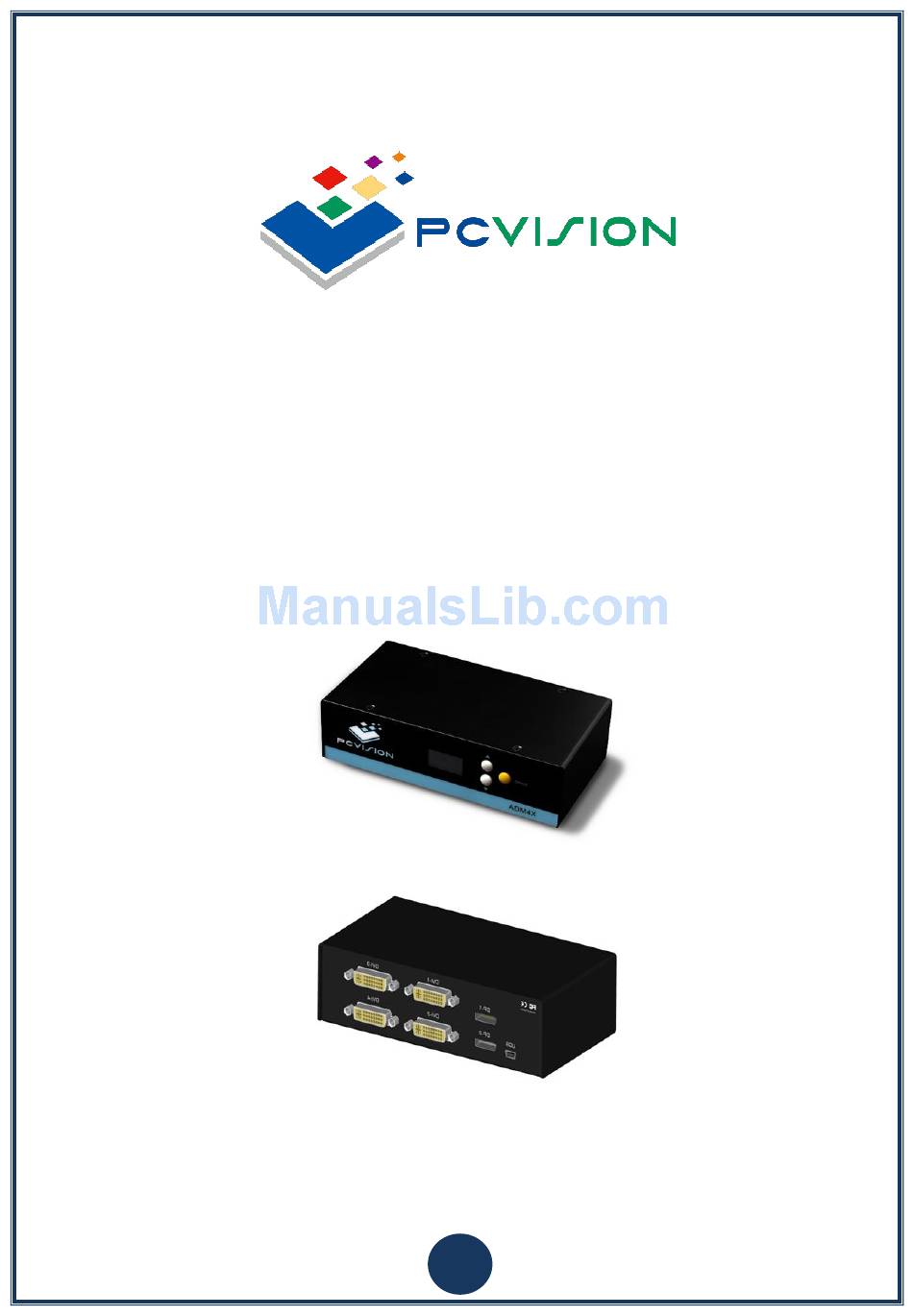

- Page 1 ADM-4X User Manual...
-
Page 2: Copyright Information
Product warranty or service will not be extended if : (1) the products is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by PC Vision; (2) the serial number of the product is defaced or missing. - Page 3 PC Vision Limited Address: 11F., No.70, Section 1, Chengde Road, Datong District, Taipei 10355, Taiwan R.O.C. Tel: (886) 02-2555-2578 Fax: (886)02-2558-7287 Website: www.pcvision.com.hk...
- Page 4 Overview Thank you for purchasing PC Vision ADM 4X. The ADM 4X are designed to power multiple screens for digital signage applications. The ADM 4X effective support Intel, AMD, nVidia’s graphics card and operating system into thinking that output devices is one extremely wide monitors. it also has an operational mode allowing you to "Clone"...
-
Page 5: Hardware Supplied
Hardware supplied Please check the package list: ADM 4X 2 * Input Cable (mini Display Port to Display Port) 1 * USB Power/Control Cable Optional items not included in the product which you have purchased. If you find the product package components are damaged, please contact your dealer immediately. - Page 6 ADM-4X Connection Setup Notes: To make sure that ADM 4X input cable connected with graphics card or motherboard’s two DP input terminals 。Please check that ADM 4X output can connect up to 4 external display output then check the plug in the ADM 4X USB power control line.
-
Page 7: Oled Display
OLED Display The OLED display provides that connect status and parameter settings. Changing Display Setting for Stretch Mode Enter Main Menu to select Display Control As following setting: Mode Status: Stretch Mode Status: Stretch Display Layout: 2x2 Display Layout:1x4 Up/Down Port: 3840 x 2400 Up/Down Port:7680 x 1200 Installing AMD-Eyefinity / Nvidia-Mosaic &... - Page 8 Changing Display Setting for Clone Mode Enter Main Menu to select Display Control. As following setting: Mode Status: Clone Mode Status: Clone Display Layout: 1x4 Display Layout: 2x2 Up/Down Port: 1920 x1200 Up/Down Port: 3840 x 1200 Done Bezel Correction Setting Enter Main Menu to select Display Control。...
- Page 9 ADM 4X Control Center Make sure to the ADM 4X Installer Main Menu for start installing 2 set of drivers: 「CP210x Bridge Driver」 and 「ADM4X Control Center」。 To installing CP210x Bridge Driver (This is the UART Driver)，please following step as: Step 1: following and click next。...
- Page 10 Step 2: Accept then click next Step 3: Done Step 4: please check the CP210xUSB to UART Bridge is appears after done.
- Page 11 To Installing ADM4X Control Center, please following as step 1 then click next Step 2: Accept then click next Step 3: Installing then click next Step 4: Done...
- Page 12 ADM 4X Control Center Execution Step 1: Click the shortcut to execute ADM4X Control Center, it will appears trademarks and software version. Step 2: To see ADM 4X Control Center Software home page after execution.
-
Page 13: Troubleshooting
How do I enable ADM 4X provides that RBGW four color scale image？ Select the RGBW ON/OFF」(Only ADM 4X Control Center to support ) 。 「 Where can I get the latest version of ADM 4X software？ A： Please visit to PC Vision official website：http://www.pcvision.com.hk/... -
Page 14: Supported Display Modes
Supported display modes Display resolution Stretch mode : 1x4 Stretch mode : 2x2 Stretch mode 120Hz 7680x1200, 7680x1080, 6720x1050 3840x2400, 3840x2160, 3360x2100 2048x1536, 2560x1400, 2560x1536 6400x1200, 6400x900, 5760x1050 3200x2400, 3200x1800, 2880x2100 2560x1600, 2560x2048 5760x900, 5600x1050, 5464x768 2880x1800, 2800x2100, 2732x1536 5120x1024, 5120x800, 5120x768 2560x2048, 2560x1600, 2560x1536 5120x720, 4096x768 2560x1440, 2048x1536...
