Summary of Contents for ANTIhum.com CCT818

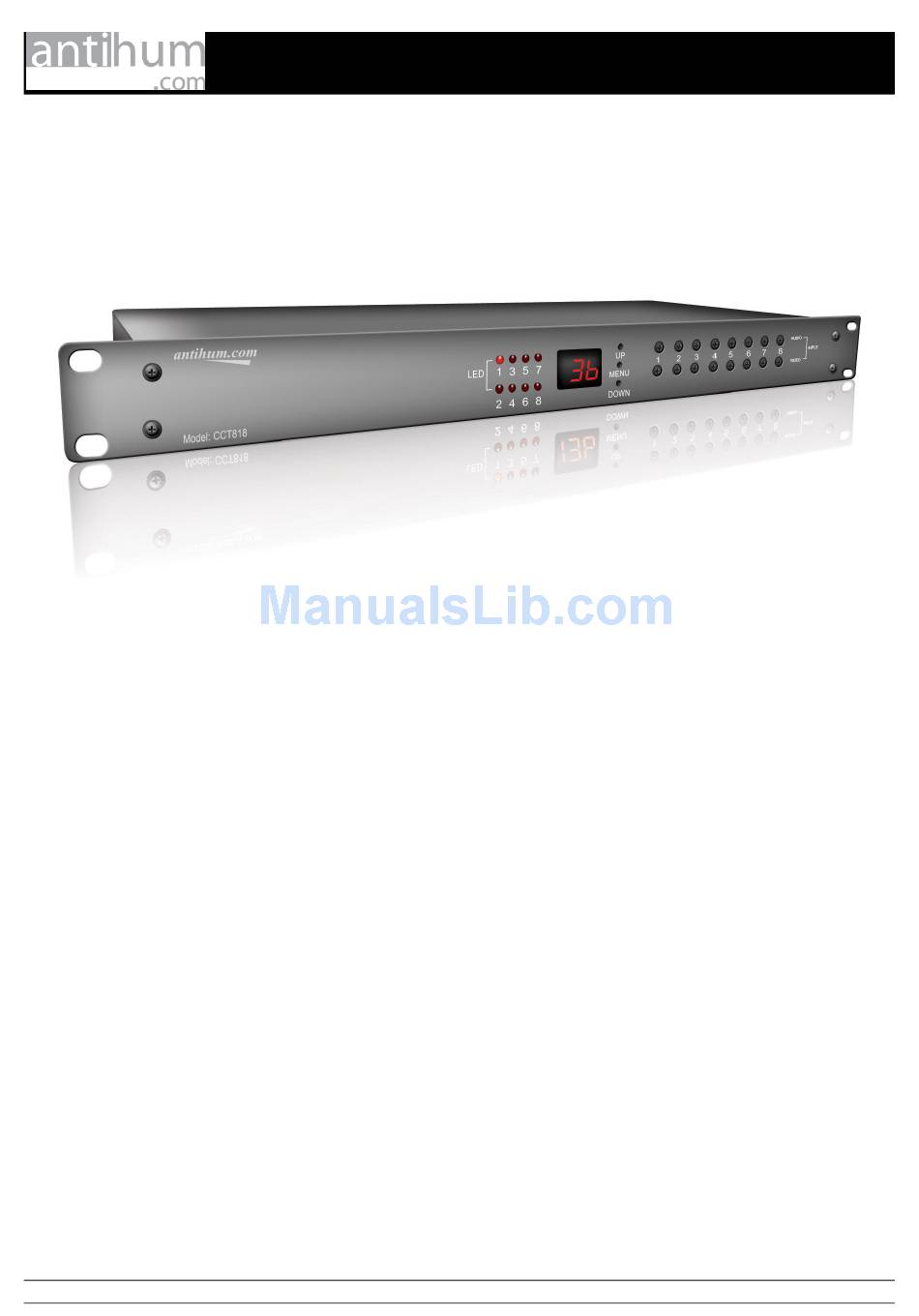

- Page 1 Document No: XCCT818 CCT818 ANTIhum.com 8 Channel RF Modulator Product Code: CCT818 ANTIhum.com Digital Modulator Instructions Email: support@antihum.com Last Updated: 14/08/2012...
-
Page 2: Front Panel
Document No: XCCT818 CCT818 ANTIhum.com 8 Channel RF Modulator Features Tunable output channel from 21-69, Push button channel selection, Microprocessor tuning, Channel Memory, Audio input, LED channel display, Easy to fit F Connector, 240vAC, Rack Mount Front Panel LED camera channel number display 1 ~ 8... - Page 3 Document No: XCCT818 CCT818 ANTIhum.com 8 Channel RF Modulator Installation 1. Connect video and audio inputs via phono connections at back of unit. 2. Connect RF out using F connector co-ax lead into the analogue aerial downlead using an aerial combiner part number AER195 prior to any RF distributor.
- Page 4 Document No: XCCT818 CCT818 ANTIhum.com 8 Channel RF Modulator Adjusting Audio/Video Frequency Channels 1. On the front panel you will see trimmers for audio and video. Use a small screwdriver to obtain best video and audio for each individual channel.
-
Page 5: Specifications
All specifications are approximate. ANTIhum.com reserves the right to change any product specification or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, ANTIhum.com cannot be held responsible in any way for any losses no matter how they arise from errors or omissions in these instructions.
