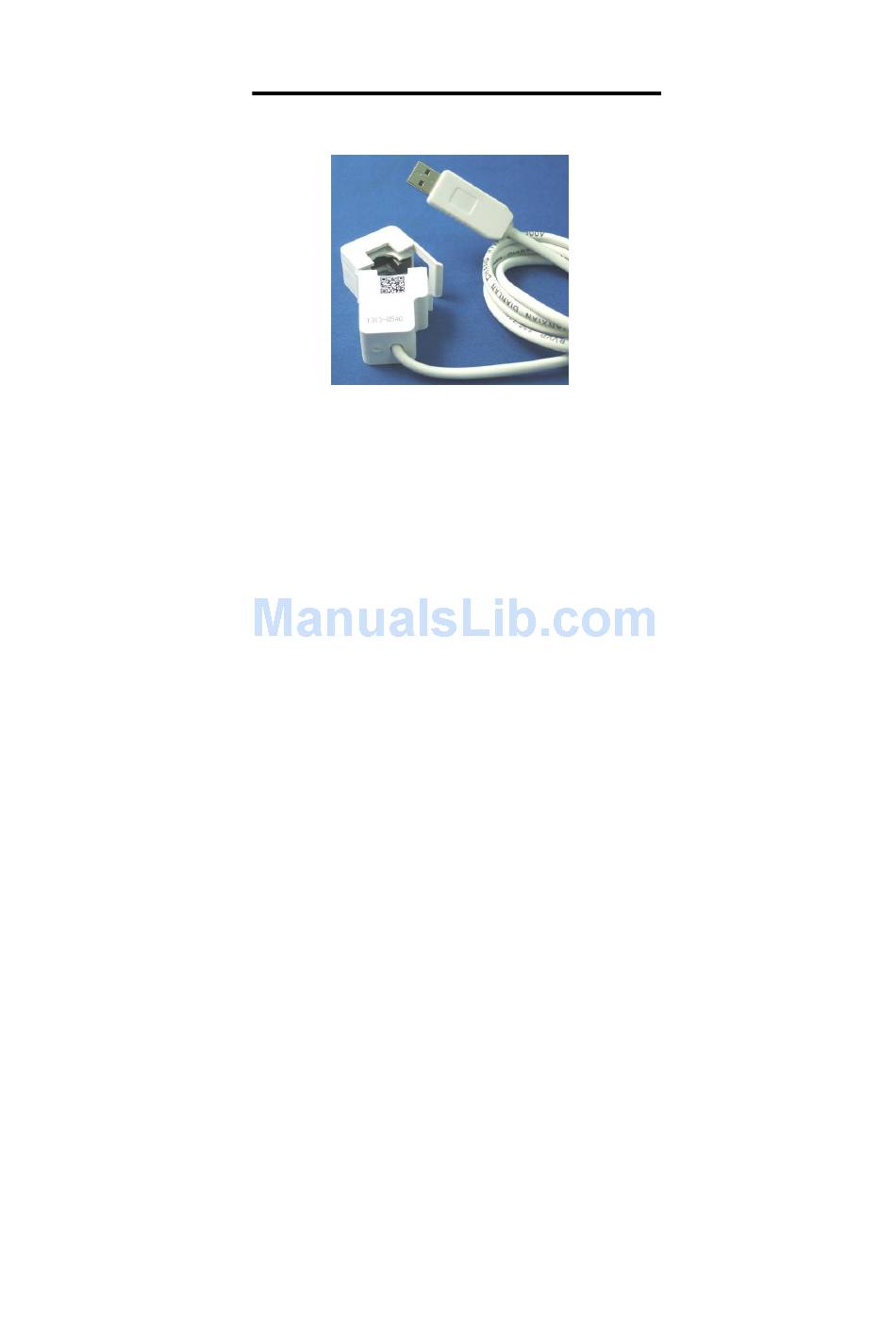

Aviosys USB e-Meter 8870 Manual

Non-contact current meter recorder
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

Introduction

USB e-Meter 88700 is a very convenient and economical "Non-Contact USB Current Meter".
Just open the meter and put the L or N cable then you can get and record the current value in
PC. Support USB CDC Emulation model for wild supplication .
* Without having to make physical contact of power line , simply place around an
electrical conductor.
* Safety measure the power current in " D
* Auto record the current value and save in PC for evaluation and application .
Measure the current range of electricity device at 0A~ 10A, User do not need to search the metal
part and can quick and safely get detect the value of current.

Features:

Small size , light weight , convenient and safe.
Fit for long time display record in PC
Support USB CDC emulation mode ( RS232 control ). Read the current in Hyper terminal. .
Support SDK for system integrator or hobbyist to make development

How to use the 8870 Current clamp ?

Open the clamp and put the L or N line of power line pass through .
Do not put more than ONE line .
USB e-Meter 8870 Manuel
Non-Contact Current Meter Recorder
istribution Box"
.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB e-Meter 8870 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aviosys USB e-Meter 8870

  • Page 1 USB e-Meter 8870 Manuel Non-Contact Current Meter Recorder Introduction USB e-Meter 88700 is a very convenient and economical “Non-Contact USB Current Meter”. Just open the meter and put the L or N cable then you can get and record the current value in PC.
  • Page 2 Hardware” and then select the driver in CD suggest to save into your desktop to install the USB driver of 8870. 3.) After install the driver, you can get “Aviosys Port (COM X) in Ports (COM& LPT) device manager as following .
  • Page 3 4.) After install the software “Current Sensor “ , please execute it and you will get the software as following : 5.) User can record the current value ( from 1 hour to 1day ) into PC: If need long time record please do keep PC awake and turn off the sleep function ) . ...
  • Page 4 VB.NET 2008 , Microsoft NET. Framework Version 3.5 , Microsoft office access 2007 USB CDC series emulation model . USB e-Meter 8870 support USB CDC emulation model , Please refer the following : 1. First , make sure that the 8870 is connect with your PC. Please go to Control Panel ...
