Summary of Contents for Alpha Digital BH-530

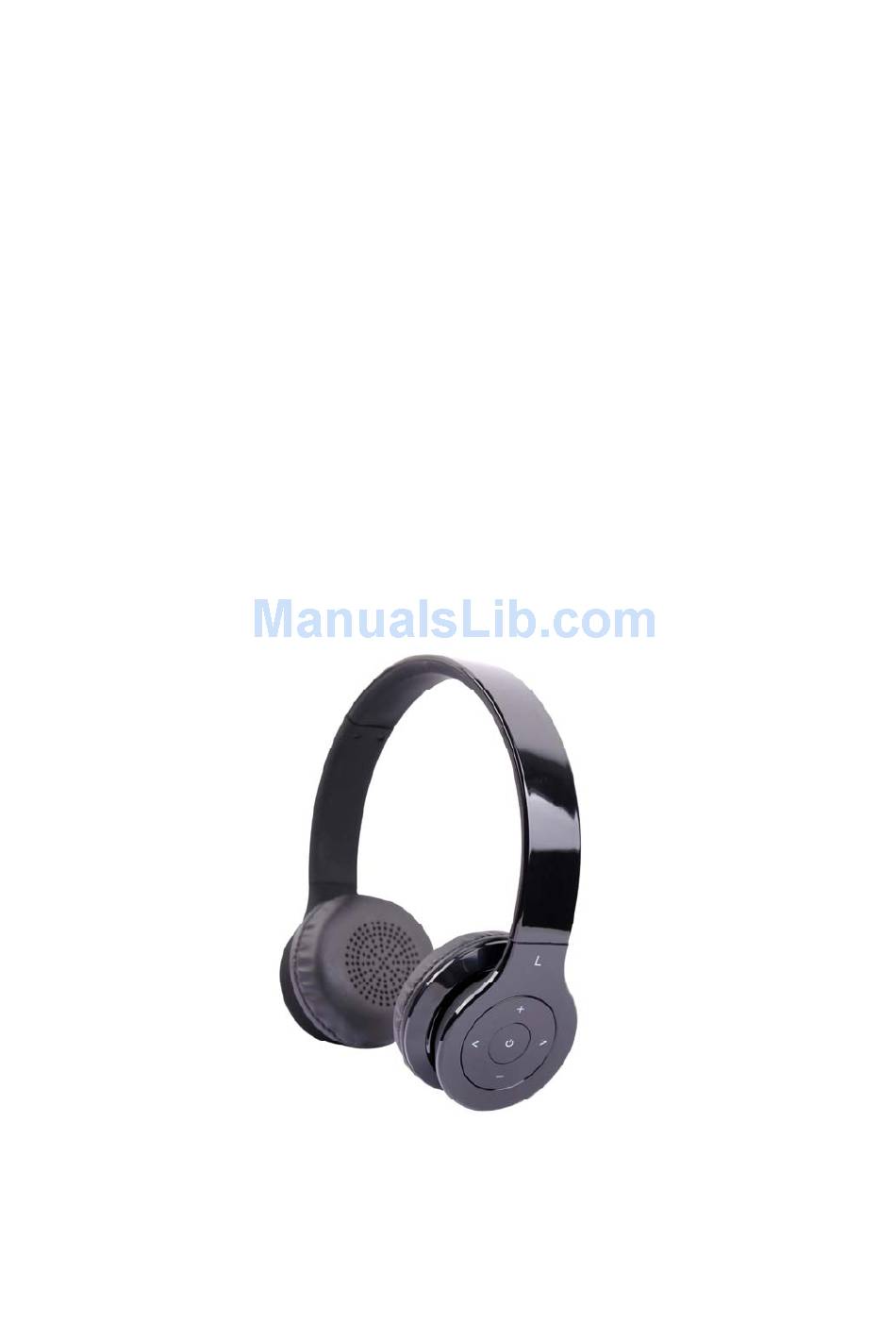

- Page 1 User’s manual BH-530 Bluetooth Stereo Headset ...
-
Page 2: Specifications
Specifications Bluetooth V3.0+EDR Bluetooth version SUPPORT: HSP, HFP, A2DP and AVRCP Volume up/down Buttons Song last/next MFB pair/pick up call/hang up call/redial Effective range 10 meters Music: Up to 10 hours Working time Talk: Up to 11hours Standby time Up to 250 hours Input DC: 5V/160mA Charging time Approx 3 hours Bulid‐in 360° Omin directional Microphone Rechargable Micro USB cable Welcome use Bluetooth stereo headset, BH‐530 BH‐530 is a Bluetooth stereo headset which supports following Bluetooth profiles: HSP —— Headset Profile HFP —— Hands‐free Profile A2DP—— Advanced Audio Distribution Profile AVRCP——Audio/Video Remote Control Profile You can enjoy wireless music and hand free talking by using BH‐530. ... - Page 3 Function: 1) Pairing with any mobile phone with built‐in Bluetooth devices (e.g. iPhone, HTC, Samsung) and Tablet PC (such as iPad). Answer, end and reject call from the headset • Redial last number. • Voice dial. • Listen to music wirelessly • Fully remote control buttons on the headset for pause/play/last song/next song/re‐ • dial/voice call. 2) Automatic switching in between conversation and music, you will not miss any incoming call during music listening. 3) Automatic connecting with the last paired device when turn on the headset. 4) Feature of the battery indicator is available on iOS5, 6 on iPhone, iPad. it will show the battery status for the headset without installing any Apps. 5) Multilink technology allows you to connect to two devices at the same time. All you need to do is simply repeat the pairing process for the second device and manually reconnect from the first device. 6) Voice prompt now comes with five status alerts in English. Power on, power off, pairing, pairing completed, incoming call. The voice notice comes directly through the headset and tells what the current status is about. Note: Even though the paired device and headset support the same Bluetooth profiles, the functions may be different due to the specification difference of the paired devices. ...
- Page 4 I ‐ Before using 1) Overview 6. 1. 2. 3. 5. 4. 7. 1.extension panel can fit different size user. • 2.> key :next song • 3.< key :last song • 4.LED Indicator for different states • 5.Multifunction button (MFB):Switch on/off the headset, answer, stop call, voice dial, • redial last number, pause and play 6/7.+ key: volume up / – key: volume down • 2) Charging the headset First time charging : first time charger battery ,please be sure the battery has been • charged fully before use. Next time: When you hear warning tones of “DU DU DU” out and at the same time the • red light blinks two times. It means battery is almost run out ,you need to charge it. A. Charging the battery with Micro USB cable Step1: Insert USB charging cable into USB port which have support 5V power (such as • AC/DC USB adapter or PC USB port) Step2: Connect charging cable to the charging port of headset. •...
- Page 5 When the red light is on, the headset is in charging. • When the blue light is on, the headset is fully charged. • It takes about almost 3 hours to charge the headset fully. • Note: when you plug the charger cable please turn off the BH‐530. II ‐ How to use 1) Switching on / off headset Function Operation LED indicator Voice prompt Press the MFB button for 3 Switch seconds, and release it till Power On Blue LED blink 3 times. on the blue LED is on Press the MFB button for 5 Switch seconds, and release it till Power Off Red LED blink 3 times off the red LED is on 2) Pairing the headset with Bluetooth devices A. How to enter pairing mode Function Operation LED indicator Voice prompt Make sure the headset is off. Press and hold MFB Enter pairing Red and blue LEDs button for 6 seconds, and ...
- Page 6 Start the Bluetooth function of mobile phone and search for new Bluetooth devices. • After searched, select “BH‐530”in the Bluetooth device list. According to indication, enter password or PIN No:”0000”, and press the key of” Yes” • or “confirmed”. ( it depends on the Bluetooth device setting ) After successful pairing, select “BH‐530" in the Bluetooth device list, and press • “connect”. After connect successfully, the blue LED of the headset will keep blinking. • Notes: If the pairing is not successful, please switch off headset firstly, and then re‐pair again. • After pairing is successful, paired devices will remember each other. Unless pairing • information is deleted because of new pairing, no need to pair when use next time. If you want to pair the headset with other devices, please pair it with the new device according to steps 1～6 mentioned above. Multilink technology allows simultaneous connection to two different devices, just • simply repeat the pairing process on both devices. Although WIN7 is a superior operating system with most drivers already built‐in, in • some cases this does not cover the various hardware configurations built into the device (e.g. PC, Note book, Net book etc) from the manufacturer. In this case, please visit the manufacturer’s web site for the latest Bluetooth drivers for your onboard Bluetooth device. 3) Re‐connecting to a Bluetooth device Automatic connecting • Every time the headset is switched on, it will connect to last connected device automatically, of course the source device Bluetooth must be on “on” states Manual connecting to last connected HFP device • When the headset is in standby mode and doesn’t connect to any HFP devices, short press MFB button once, it will connect to last connected source device automatically. ...
- Page 7 ‐ On some Bluetooth devices, take some Nokia mobile phones for example, you have to allow automatic connecting in the mobile phone’s settings. Please refer to your mobile phone’s manual for further information. 4) Making calls with the headset Function Status of headset Operation Press and hold MFB button for 1 second, release it Voice dial Standby mode till hearing indication sound ,then speak the call you want to. Redial last Standby mode Short press MFB twice quickly number Volume up Conversation mode Short press + key Volume Conversation mode Short press ‐ key down Answer Ringing Short press MFB calling Press and hold MFB button for 1 second, and release Reject calling Ringing until you hear indication sound Not all the mobile phones support all the functions listed above. Please refer to the • instruction of your mobile phone. Some functions and indication tones may vary with different mobile phones. • When the volume is adjusted to max or min, you will hear a indication tone. •...
- Page 8 5) Playing music When the headset connects with the mobile phone or Bluetooth transmitter , you can enjoy music through headset wirelessly. Function Status of headset Operation Pause Playing music Short press MFB Play Pausing Short press MFB Next song Playing music Short press > key Last song Playing music Short press < key Volume up Playing music Short press + key Volume down Playing music Short press ‐ key Notes: For some of mobile phones, when they are playing music, the music will transmit to • the speaker of mobile phone, you have to choose “transmit the sound through Bluetooth” in the “setting” of music play interface, and then choose “BH‐530” in the device list, the music will be transmitted to the headset. Please refer to the instruction of your mobile phone for further information. When the volume of headset is adjusted to max. or min, you will hear a indication DU • DU tone. Remote control the function of last song/next song/pause, it needs your mobile ...
- Page 9 2) Operation mode LED Indicator Status of the headset Red and blue LEDs blink alternately Pairing mode Blue LED quickly blinks twice every 1 seconds. Not connected to a device Blue and Red LED quickly blinks three times every 2 Set up HFP and A2DP connection seconds Red LED blinks twice every 20 seconds Low power 8) Low power Indication tone “DU” tones every 20 seconds Care and maintenance • Please read the following suggestions carefully, that will help you to fulfill any warranty obligations and to enjoy this product for many years. Keep dry and don’t put it in the dump place, in case of effecting the interior circuit of • product. Don’t put the product under the sunlight or place hot areas. High temperature will • short the life of electronic device, destroy the battery, or distort certain plastic. Don’t expose the product in the cold areas. It may damage the internal circuit board. • Don’t try to take apart the product. It may damage the product if you are not • professional. Don’t fall off on the floor or knock the hard substance. It may damage interior circuit. • Don’t use intensify chemical or detergent to clean the product. • Don’t scrap the surface with sharp things. In case the product doesn’t function • properly, send it to the store you bought it. The staff will help you to solve the problem. ...
