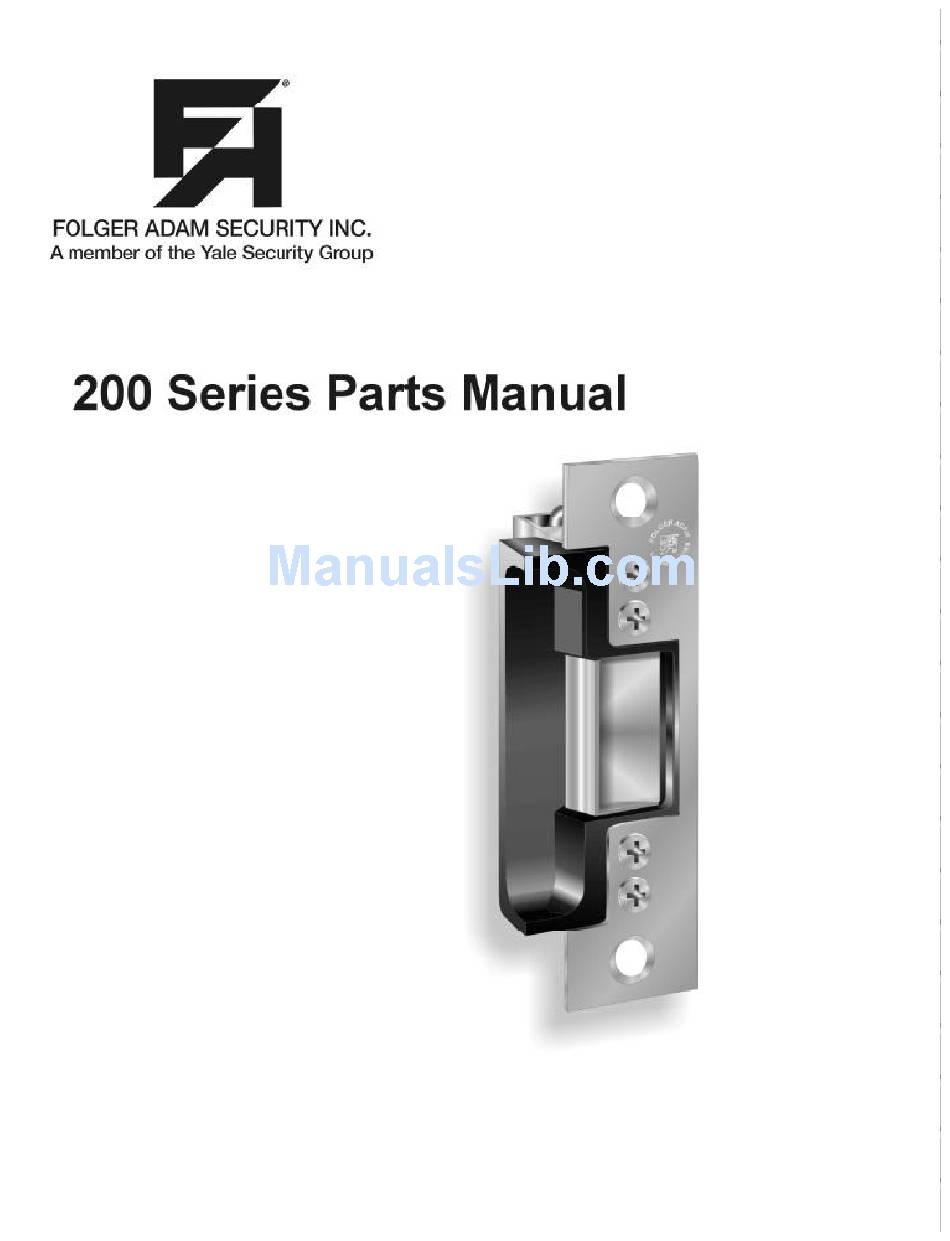

Summary of Contents for FOLGER ADAM SECURITY 200 Strike
- Page 2 FOLGER ADAM SECURITY INC. A member of the Yale Security Group Table of Contents 200 StrikeMaintenance and Lubrication Instructions............. 1 200 Strike Installation Instructions ..................2 200 Strike Keeper Installation ....................3 200 Strike Wiring Diagram ....................4 200 Strike Assembly Illustration ....................
-
Page 3: Maintenance And Lubrication Instructions
Maintenance and Lubrication Under normal usage the 200 strike should be cleaned and lubricated once a year to maintain its reliability. In applications with high usage or dirty conditions more frequent service may be necessary. Lubrication points are identified in the illustration. When servicing the 220, inspect the internal parts for excess wear or breakage and lightly lubricate per instructions below. -
Page 4: Installation Instructions
Installation Instructions Installation: 1. For proper installation of the 200 strike refer to the appropriate template drawing. 2. Prior to installation, make the necessary wire connections per the appropriate wiring diagram. 3. Proper operating voltage must be supplied to the strike if it is to function correctly. Voltage at the strike must be within +/- 10% of the required voltage listed on the strike label. - Page 5 200 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Installation of 200 Strike Keepers Illustration showing the assembly of a strike keeper and LBM switch tripper. Illustration is to be used with instructions on page — for changing and replacing keepers.
- Page 6 Style "B" 076-0712-008 Rect.Assy 1.5Amp Style "C" 076-0712-014 24V Pigtail Style "D" 076-0603-001 Field Recep Assy 200 Strike Wire Harness Options Optional Connection (24 VDC Option) AC Bridge Rectifier Harness To Solenoid Black W (-) Yellow From STYLE "C" External...
- Page 7 200 Strike 200 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group 200 Assembly Illustrations & Parts List Description Item Part Number Slide Carrier 013-0201-001 Keeper Pin 011-0200-001 Keeper 013-0202-001 Keeper Spring 003-0204-002 Case 013-0200-001 Solenoid...
- Page 8 200 Strike 200 Series Parts FOLGER ADAM SECURITY INC. A member of the Yale Security Group Description Item Part Number 202 FP/SVR Pkg -US10B 008-0202-001 Pk 202 FP/SVR Pkg -US28 008-0202-003 Pk 202 FP/SVR Pkg -Anod Blk 008-0202-004 Pk 202 FP/SVR Pkg -Anod Brz...
