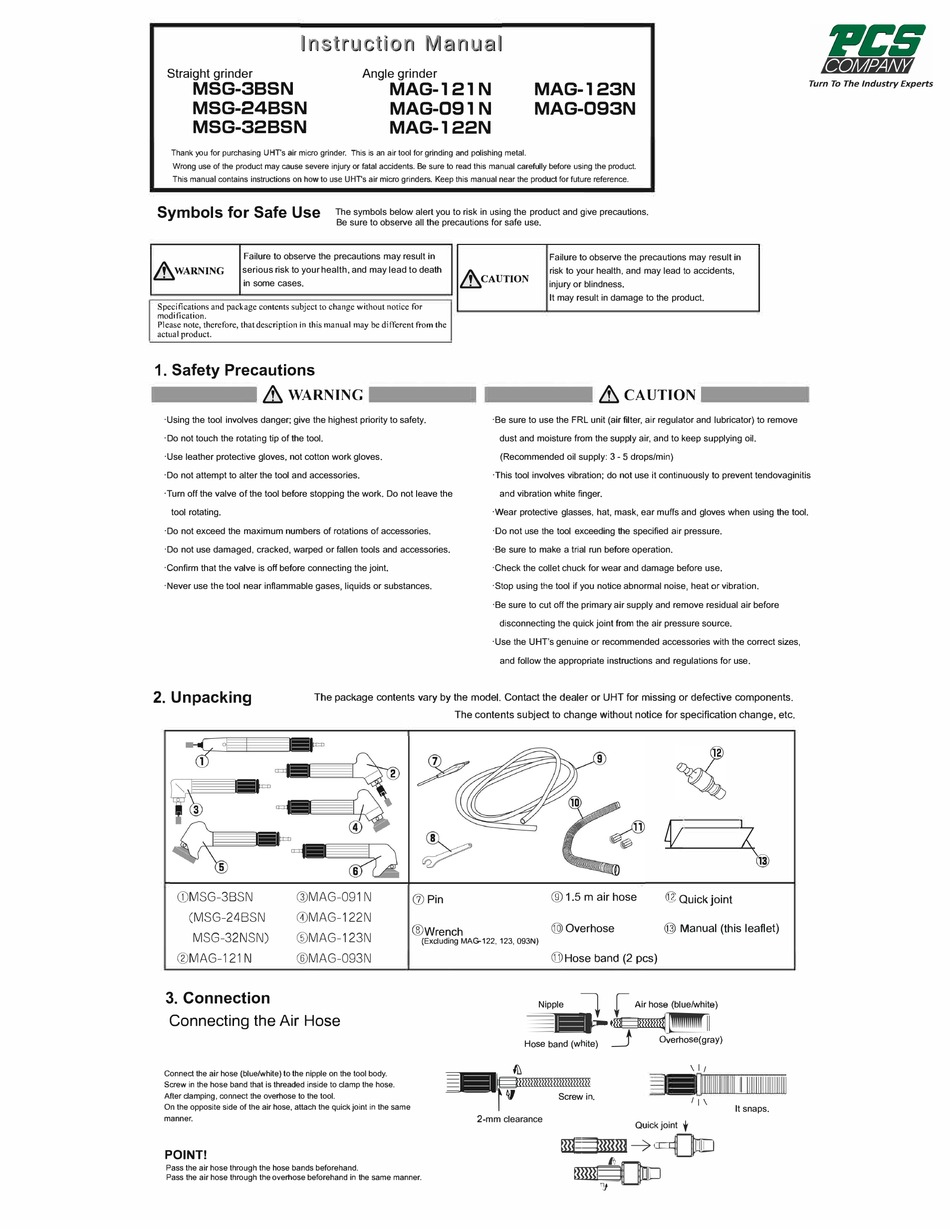

PCS MSG-38SN Instruction Manual

Straight grinder
MSG-38SN
MSG-248SN
MSG-328SN
Thank you for purchasing UHT's air micro grinder. This is an air tool for grinding and polishing metal.
Wrong use of the product may cause severe injury or fatal accidents. Be sure to read this manual carefully before using the product.
This manual contains instructions on how to use UHT's air micro grinders. Keep this manual near the product for future reference.
Symbols for Safe Use
Failure to observe the precautions may result in
serious risk to your health, and may lead to death
&WARNING
in some cases.
Specifications and package contents subject to change without notice for
modification.
Please note, therefore, that description in this manual may be different from the
actual product.

1. Safety Precautions

&
WARNING
·Using the tool involves danger; give the highest priority to safety.
· Do not touch the rotating tip of the tool.
·Use leather protective gloves, not cotton work gloves.
·Do not attempt to alter the tool and accessories.
·Turn off the valve of the tool before stopping the work. Do not leave the
tool rotating.
·Do not exceed the maximum numbers of rotations of accessories.
·Do not use damaged, cracked, warped or fallen tools and accessories.
·Confirm that the valve is off before connecting the joint.
·Never use the tool near inflammable gases, liquids or substances.
2. Unpacking
The package contents vary by the model. Contact the dealer or UHT for missing or defective components.
(DMSG-3BSN @MAG-091 N
(MSG-24BSN @MAG-122N
MSG-32NSN) ®MAG-123N
®MAG-121N ®MAG-093N
3. Connection
Connecting the Air Hose
Connect the air hose (blue/white) to the nipple on the tool body.
Screw in the hose band that is threaded inside to clamp the hose.
After clamping, connect the overhose to the tool.
On the opposite side of the air hose, attach the quick joint in the same
manner.
POINT!
Pass the air hose through the hose bands beforehand.
Pass the air hose through the overhose beforehand in the same manner.
Angle grinder
MAG-121 N
MAG-091 N
MAG-122N
The symbols below alert you to risk in using the product and give precautions.
Be sure to observe all the precautions for safe use.
&CAUTION
·Be sure to use the FRL unit (air filter, air regulator and lubricator) to remove
dust and moisture from the supply air, and to keep supplying oil.
(Recommended oil supply: 3 - 5 drops/min)
·This tool involves vibration; do not use it continuously to prevent tendovaginitis
and vibration white finger.
·Wear protective glasses, hat, mask, ear muffs and gloves when using the tool.
·Do not use the tool exceeding the specified air pressure.
·Be sure to make a trial run before operation.
·Check the collet chuck for wear and damage before use.
·Stop using the tool if you notice abnormal noise, heat or vibration.
·Be sure to cut off the primary air supply and remove residual air before
disconnecting the quick joint from the air pressure source.
·Use the UHT's genuine or recommended accessories with the correct sizes,
and follow the appropriate instructions and regulations for use.
The contents subject to change without notice for specification change, etc.
G) Pin
®Wrench
(Exduding MAG-122, 123, 093N)
fl':,
��mammmmmmi
I
4/
2-mm clearance
MAG-123N
MAG-093N
Failure to observe the precautions may result in
risk to your health, and may lead to accidents,
injury or blindness.
It may result in damage to the product.
&CAUTION
42
® 1.5 m air hose
@ Quick joint
@Overhose
@ Manual (this leaflet)
@Hose band (2 pcs)
:-i
[
Nipple Air hose (blue/white)
��
Ove rhos e (gra y)
_}
H ose band (white)
\ I /
Screw in.
/ I \
t
Quick joint
tm;;;nmm � cni]ID
�
w
j
'@
It snaps.
