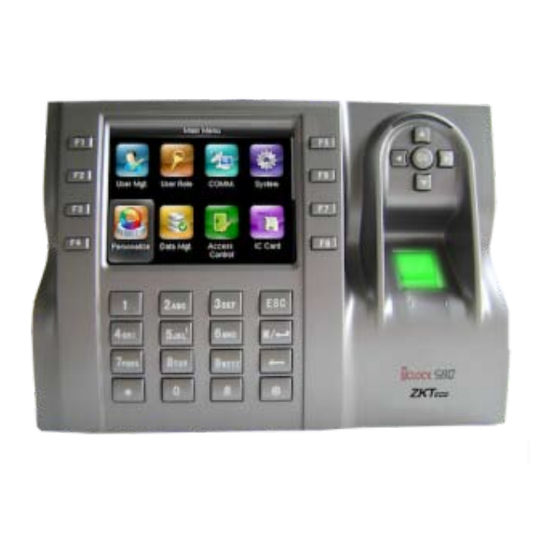

iClock560/580 - uputstva
http://www.clarionllc.net/cms/index.php/kp-erv/uredjaji
Professional Firmware Manual ver.1.0
Odnosi se na modele iClock-880, iClock-580, iClock 700, iClock-S680, iClock-
S900, iClock-S500, iClock-360, iClock-560, iClock-260 / 360, iClock-S560,
iClock-660, iClock-S880
2
Advertisement
Table of Contents
Summary of Contents for Clarion iClock 560

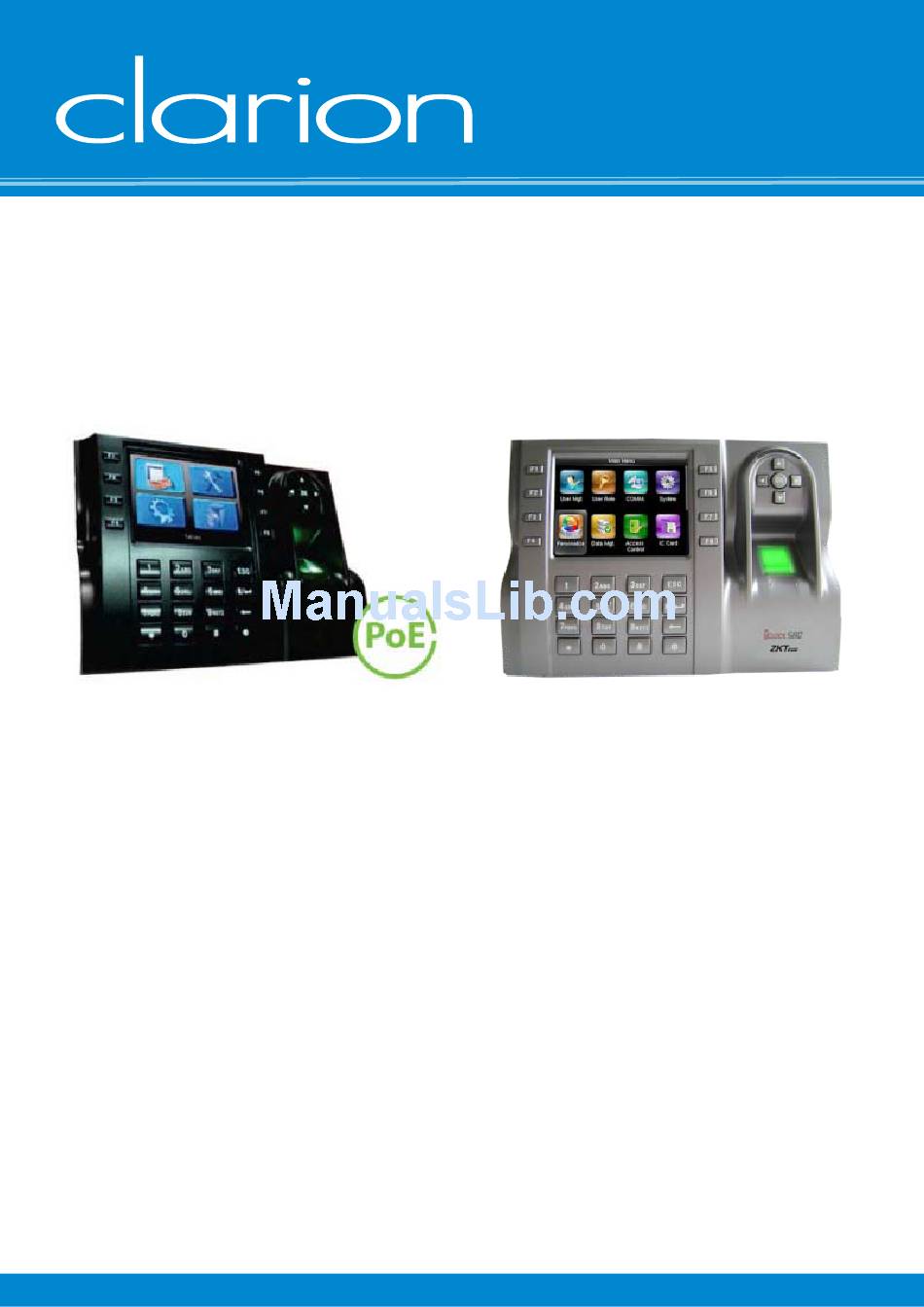

- Page 1 http://www.clarionllc.net info@clarionllc.net iClock560/580 - uputstva http://www.clarionllc.net/cms/index.php/kp-erv/uredjaji Professional Firmware Manual ver.1.0 Odnosi se na modele iClock-880, iClock-580, iClock 700, iClock-S680, iClock- S900, iClock-S500, iClock-360, iClock-560, iClock-260 / 360, iClock-S560, iClock-660, iClock-S880...
-
Page 2: Table Of Contents
PROFESSIONAL FIRMWARE VERSION 2013 Index: Getting started ........................3 1.1 Fingerprint Placement ......................3 1.2 Instruction for Card Swipe....................3 1.3 Precautions ......................... 4 Introduction of Device ......................4 2.1 Overview of Device Functions .................... 4 2.2 Important Safeguards ......................4 2.2.1 Installation Location .................... - Page 3 PROFESSIONAL FIRMWARE VERSION 2013 3.1.6 Dial –Up settings GPRS (Only for terminals with GPRS) ........... 15 3.2 Language ........................... 15 3.3 Fingerprint ........................16 3.4 Update ..........................17 3.5 Display ..........................17 3.6 Advanced options ......................18 3.7 System info ........................18 3.7.1 Record capacity ......................
-
Page 4: Getting Started
PROFESSIONAL FIRMWARE VERSION 2013 Getting started 1.1 Fingerprint Placement Recommended fingers: The index finger, middle finger or the ring finger; the thumb and little finger are not recommended (because they are usually clumsy on the fingerprint Collection screen). Please enroll and verify your fingerprint by using the proper finger placement mode. We shall not be held accountable for any consequences arising out of the degradation in verification performance due to improper user operations. -
Page 5: Precautions
PROFESSIONAL FIRMWARE VERSION 2013 1.3 Precautions Protect the device from exposure to direct sunlight or bright light, this greatly affects the fingerprint collection and leads to fingerprint verification failure. It is recommended to use the device under a temperature of 0–50°C so as to achieve the optimal performance. -
Page 6: Use Of Sensor
PROFESSIONAL FIRMWARE VERSION 2013 2.2.2 Use of Sensor Do not abuse the fingerprint sensor by scratching the surface, contacting the sensor’s surface with heat, pressing hard during placement of fingerprint for verification. Clean the sensor occasionally with cellophane tape to maintain the performance of the sensor. -
Page 7: Date / Time Adjustment
PROFESSIONAL FIRMWARE VERSION 2013 • Fingerprint and password enrolment Under this option, a user can enroll both fingerprint and password at the same time. The user can either use fingerprint or password to report attendance or to gain access. • RFID card enrolment User can enroll RFID Card 2.4 Date / Time Adjustment... -
Page 8: Password Enrolment
PROFESSIONAL FIRMWARE VERSION 2013 2.6 Password Enrolment If a user cannot enroll his fingerprint or wants also another kind of verification, he can choose to use passwords. Password may contain numbers ranging from 1 – 8 digits. 2.7 RFID Card Enrolment 2.7.1 ID Technology If a user cannot enroll his fingerprint, he can choose to use a RFID Card. -
Page 9: Mf Technology (Only For Terminals Which Include Mf Module)
PROFESSIONAL FIRMWARE VERSION 2013 2.7.2 MF Technology (Only for terminals which include MF Module) This menu only will be showed when the terminal includes Mifare module and the configuration about how we want the MF cards work will be defined here. MF cards are special and we can read and write data, so we can set the cards as PIN Card, or store the templates in the MF Card which is very useful to ensure data protection laws in some countries... -
Page 10: Events
PROFESSIONAL FIRMWARE VERSION 2013 2.9 Events In this menu will be created all the events we are going to use depend of the time and attendance system we want, being possible create usual events like (Doctor, smoke, lunch, breakfast and so on…). This system offers to control perfectly the work time of each employ. -
Page 11: System
PROFESSIONAL FIRMWARE VERSION 2013 Parameters, Alarm and Misc. Options: Using this three sub-menus we configure some kind of parameters as relay delay, alarm settings, antipassback etc… SYSTEM 3.1 Communications When the device and PC are used to transmit data, it is necessary to use communication wire to set communication parameters in the device. -
Page 12: Network
PROFESSIONAL FIRMWARE VERSION 2013 3.1.1 Network When Ethernet is used for communication of device and PC, the following settings need to be checked: Device IP address: IP is 192.168.1.201 by default. You can modify it if it is necessary. But it cannot be the same with that of PC. Subnet mask: It is 255.255.255.0 by default. You can modify it if it is necessary. -
Page 13: Security Options
PROFESSIONAL FIRMWARE VERSION 2013 3.1.3 Security options When RS232/RS485 is used for communication of device and PC, it is necessary to set device ID. Device ID: 1—254. If RS232/RS485 is used, this ID needs to be input on the software communication interface. To improve the security of attendance data, connection password needs to be set here. - Page 14 PROFESSIONAL FIRMWARE VERSION 2013 3.1.4.2 Output Opt. Format: It is the defined format in the system. User need not specify total digit and the information position. There are 4 definition formats by default in the system: Wiegand 26 with site code, Wiegand 34 with site code, Wiegand 26 without site cod and Wiegand 34 without site code.
-
Page 15: Wireless Setup (Only For Terminals With Wi-Fi)
PROFESSIONAL FIRMWARE VERSION 2013 3.1.5 Wireless setup (Only for terminals with WI-FI) Before the device is used for wireless network, other physical groupware of 802.11 networks, such as joint, distributing system, wireless medium must be in existence. ESSID to connect to the network must be known (network ID). Network ID: Network ID to be connected to wireless network. -
Page 16: Dial -Up Settings Gprs (Only For Terminals With Gprs)
PROFESSIONAL FIRMWARE VERSION 2013 3.1.6 Dial –Up settings GPRS (Only for terminals with GPRS) When the equipment is in the Dial-Up Network, making sure the device is in the coverage of GPRS or CDMA signal, and it is must know of the used modem type, APN name and access number and so on. -
Page 17: Fingerprint
PROFESSIONAL FIRMWARE VERSION 2013 3.3 Fingerprint 1:1 matching threshold value: The similarity of ID + fingerprint verification and the enrolled template 1:N matching threshold value: The similarity of verification and the enrolled template Recommended matching threshold value: Matching threshold value High Middle Middle... -
Page 18: Update
PROFESSIONAL FIRMWARE VERSION 2013 3.4 Update Use software to upgrade firmware program. Notice: If you need such upgrade file, please contact technician. Usually, firmware upgrade is not recommended. Operation Insert U disk with upgrade file into the slot. The device will identify the file automatically. -
Page 19: Advanced Options
PROFESSIONAL FIRMWARE VERSION 2013 3.6 Advanced options Sleep time: When it is the scheduled sleep time, the device not in operation will enter sleep status. Press any key or finger to awake it. (Set 0 always on). Key beep: It controls the key sound to be enable or not. ... -
Page 20: Record Capacity
PROFESSIONAL FIRMWARE VERSION 2013 3.7.1 Record capacity Display the count of enrolled user, administrator and password enrollment and the capacity of fingerprint, the enrolled fingerprint, attendance record and the current saved attendance record in the form of diagram, as shown below: 3.7.2 Device information Display device name, serial number, version information, and manufacture date in device information for check:... -
Page 21: Terminal Settings
PROFESSIONAL FIRMWARE VERSION 2013 Terminal settings 4.1 Keypad In this menu you configure all terminal function keys as we desire to terminal giving total flexibility as we will explain in the next point. This menu has two sections we will detail below. -
Page 22: Barcode Settings
PROFESSIONAL FIRMWARE VERSION 2013 Conf. Status keys: The flexibility offered by the professional version of firmware allows us to define a status key whatever such as F1 = Doctor, that key can be set to automatically change state, one key for a time can have a state and automatically switch to another state and you can even set the day of the week you want this operation happens. -
Page 23: Pen Drive Management
PROFESSIONAL FIRMWARE VERSION 2013 4.3 Pen drive Management 4.3.1. Download Download user data Save all users’ information and fingerprint in the device to U disk. Download SMS Save SMS added to the device to U disk. Download user photo Save employee’s photo into U disk. -
Page 24: Pen Drive Settings
PROFESSIONAL FIRMWARE VERSION 2013 4.3.2. Pen drive Settings From the menu pen drive can perform all data downloads from the device, these download can be done: (Logs, user information, SMS, user photo, and terminals that have camera allow download capture photos too.) In the same way you can upload data to the terminal if we want to move data quickly and safely from one terminal to another. -
Page 25: Bell
PROFESSIONAL FIRMWARE VERSION 2013 4.3 Bell Many companies need bell for on-duty and off-duty. Some use manual bell. Some use electronic bell. To save cost and provide convenience for management, we integrate bell functions to the device. You can set time for bell. When it is the scheduled time, the device will play the selected ring automatically. -
Page 26: Multi-Verify Settings
PROFESSIONAL FIRMWARE VERSION 2013 4.4 Multi-verify settings Using professional firmware version will be available the option to set by terminal the default verification mode. If each user has not defined their specific verification mode the system will check this value which will be default for all users in the terminal. We are able to make multiple modifications for many users at the same time. -
Page 27: Auto Test
PROFESSIONAL FIRMWARE VERSION 2013 4.6 Auto test The device can test various modules automatically to help operator to judge the module with fault quickly, including test of TFT display, voice prompt, clock, keyboard, and fingerprint sensor. TFT display test The device can automatically test TFT color display effect (through color display, white display and black display) to see whether the screen works normally... -
Page 28: Data Management
PROFESSIONAL FIRMWARE VERSION 2013 Data Management 5.1 Data Management Employee’s attendance record will be saved in the device. For query convenience, query record function is provided. Data query Query attendance: According to user’s input query condition, the records will be displayed on the screen for user selected. Only shows log related with attendance and job costing only with date and time.
