Summary of Contents for MediaRange MR734

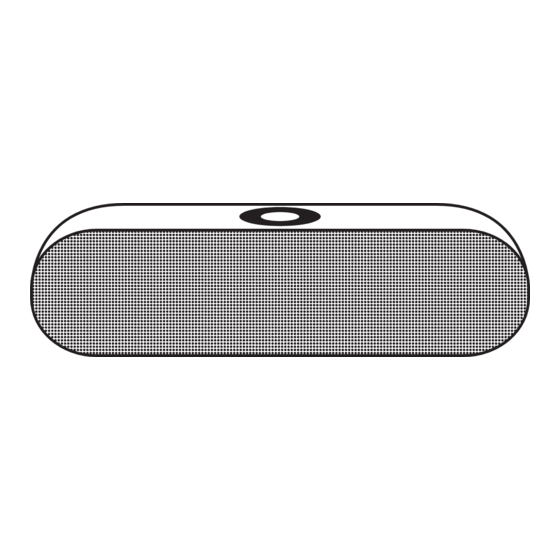

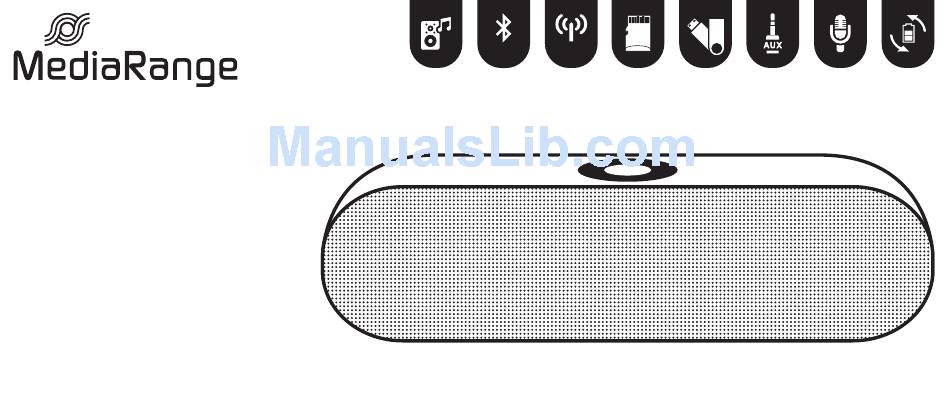

- Page 1 FM Radio Bluetooth® PORTABLE BLUETOOTH® SPEAKER STEREO AUDIO SYSTEM GB User manual, Operating- and safety instructions, Warranty conditions Item no.: MR734...
- Page 2 GB Getting started and operation Next title; FM channel search Play I Pause; Raise volume Playback mode; Answer phone calls; automatic FM tuner channel search Previous title; FM channel search Lower volume ● Select the requested playback mode by keep this button pushed: 1.
- Page 3 GB Getting started and operation built-in Micro USB port microphone On / Off switch Slot for memory cards 3.5mm AUX I Line in; USB flash drive FM antenna output port Slot for memory cards and USB flash drives: The device is supporting micro SD, micro SDHC and micro SDXC memory cards. Insert a memory card, with the contacts up, into the slot.
- Page 4 Bluetooth devices. 2. Turn on your device and be sure Bluetooth is activated to pair it with the speaker. The speakers Bluetooth name is „MR734“. As soon as your device has been connected successfully, you are able to stream your music. You can use your connected device or the navigation pannel on the speaker for music control.
- Page 5 Playback mode I Memory card slot 1. Turn on the speaker and insert a memory card, with the contacts up, into the memory card slot. The slot will latch the card and you will hear a „click“ if it is inserted correctly. 2.
- Page 6 Playback mode I USB flash drive 1. Turn on the speaker and connect an USB flash drive into the USB port of the speaker. 2. The USB flash drive will be detected automatically and the speaker starts to playback your music. Use the navigation pannel for music control. Note: If the speaker will be turned off or if you switch the playback mode, the speaker will memory the last played title and starts to playback this title if you select the playback mode again.
- Page 7 Playback mode I FM tuner FM Radio 1. Plug in the 3.5mm AUX cable and turn on the speaker. Keep the „Play I Pause“ button pushed once to switch to the FM tuner mode. 2. Start and stop the automatic FM tuner channel search by pushing the „Play I Pause“ button. To adjust or search a radio station manually, use the buttons „Back“...
- Page 8 GB Playback mode I 3.5mm AUX line in 1. Turn on the speaker and plug in the 3.5mm AUX cable. The speaker will switch automatically to the AUX playback mode. 2. Connect your device by using the AUX cable to the speaker and start to stream your music. Use the music player of your device for music control. The volume can be lowered and raised by the navigation pannel of the speaker and/or the connected device.
- Page 9 Explanation: Hands-free function Push the button to answer incoming calls Push the button during a call to redirect the call to your paired device. Connect your smartphone or tablet via Bluetooth with the speaker in order to use the hands-free function. Therefor please switch to the Bluetooth mode: ●...
- Page 10 Explanation: LED indicator lights and acoustic signals Explanation of LED indicator lights: ● LED indicator is flashing rapidly: The speaker is running in the Bluetooth-mode and is searching for previous Bluetooth settings; The speaker is ready for getting paired to a device; The connected device is out of range. ●...
- Page 11 Explanation: Charging the speaker ● Plug the charging cable into the micro USB port of the speaker and connect it to a bus-powered USB port on your computer. ● Plug the charging cable into the micro USB port of the speaker and connect it with an external power supply with USB port. When the speaker is charging the indicator is red.
- Page 12 Warranty I Support service I Package contents I Intended use Warranty MediaRange GmbH assumes no liability and provides no warranty for damage resulting from improper installation/mounting, improper use of the product or from failure to observe the operating and/or safety instructions.
- Page 13 Operation- and safety instructions ● Do not insert any objects into the speaker which are not designed for its use. ● Do not use this device in damp environments and do not expose the speaker or any of its supplied parts with water or other liquids. ●...
- Page 14 By disposing the batteries in this prescribed manner, you can avoid environmental damages. Technichal specification Model MediaRange Portable Bluetooth® speaker, item no.: MR734 Playback modes and specifications Battery Integrated Lithium-ion battery, 1.200mAh I Charging time: ~ 4.5 hours •...
- Page 15 The warranty only covers material and production defects. The free warranty service covers the repair or replacement of defective parts. All MediaRange products are subject to constant quality inspections and the legal warranty period applies, of course, from the date of purchase.
-
Page 16: Important Notes
There are no warranty claims if the product is exposed to shocks, electrostatic discharges, heat or humidity effects beyond the product specifications. MediaRange is not liable for any collateral damages or consequential losses, for violation of warranty conditions or any other losses irrespective of the cause.
