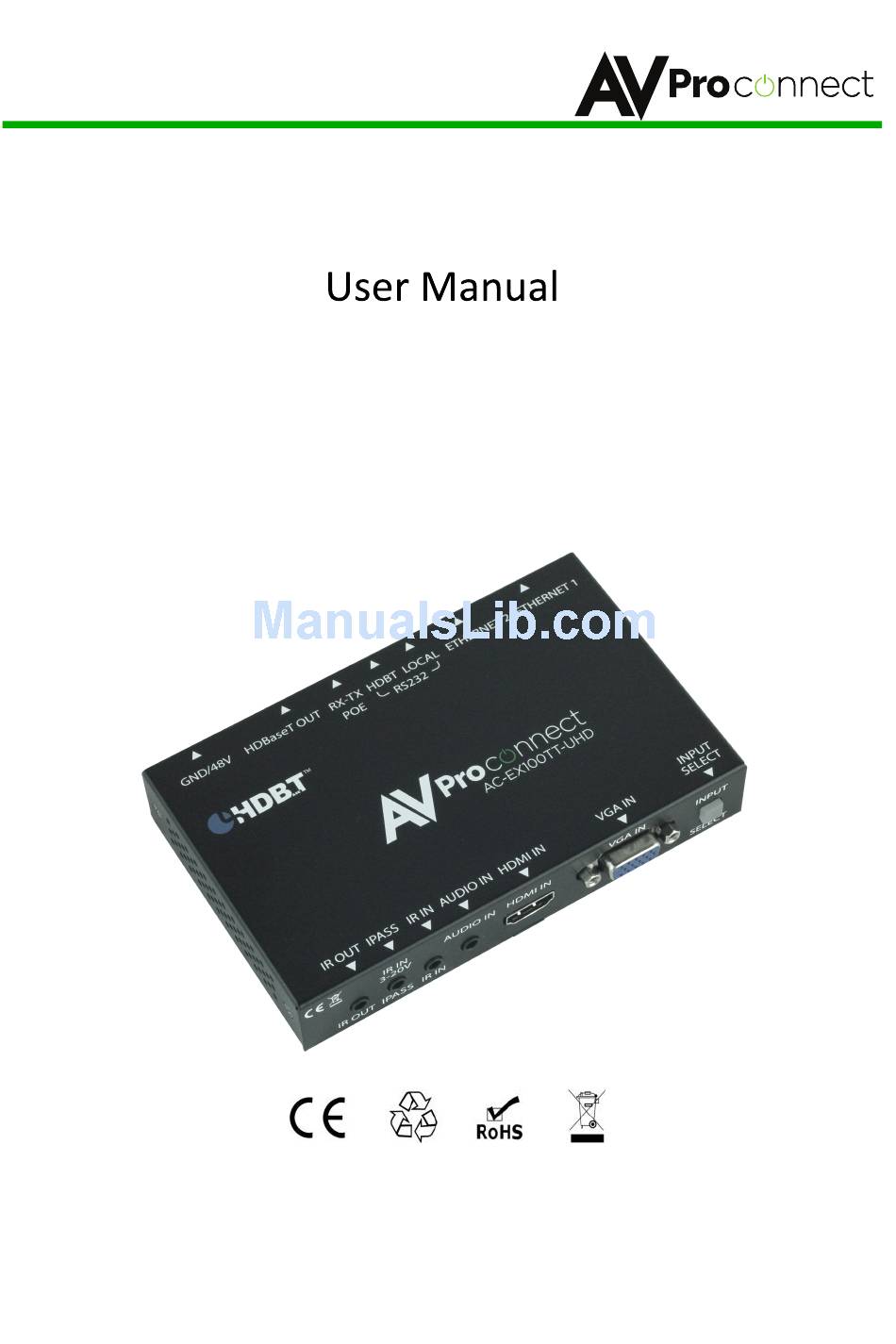

AV Proconnect AC-EX100TT-UHD-T User Manual

Table top/under table, dual input (hdmi/vga), auto sensing hd baset transmitter
Hide thumbs

Advertisement

Quick Links

Download this manual
AC-EX100TT-UHD-T
AC-EX100TT-UHD-T
Table Top/Under Table, Dual Input
(HDMI/VGA) Auto Sensing HDBaseT
Transmitter
A V P r o C o n n e c t
3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4
1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5
s u p p o r t @ a v p r o c o n n e c t . c o m
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AC-EX100TT-UHD-T and is the answer not in the manual?

Questions and answers

Summary of Contents for AV Proconnect AC-EX100TT-UHD-T

  • Page 1 AC-EX100TT-UHD-T AC-EX100TT-UHD-T Table Top/Under Table, Dual Input (HDMI/VGA) Auto Sensing HDBaseT Transmitter A V P r o C o n n e c t 3 5 1 8 N C a s c o A v e n u e ~ S i o u x F a l l s , S D 5 7 1 0 4 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o c o n n e c t .
  • Page 2 AC-EX100TT-UHD-T Introduction The AC-EX100TT-UHD-T is a 100m HDBaseT Tx with the ability to be powered by the Rx. It features RS-232 & IR Pass-through inputs along with its auto sensing HDMI and VGA ports. Key benefits of using AC-EX100TT-UHD: 1) ULTRA HIGH DEFINITION: Our AC-EX100TT-UHD supports 4K up to 70M (230FT) &...
  • Page 3 4K 60Hz 4:2:0 8-bit & HDR 4K 30 4:2:2 12-bit. VGA supports DCI 2K, 1080P, 1920x1200x60. In addition to its compact and robust design, The AC-EX100TT-UHD-T transmits digital signals up to 100 meters (328’) giving you ultimate flexibility, especially in large rooms like libraries or auditorium style rooms/classrooms.
  • Page 4 AC-EX100TT-UHD-T Table-top/under-table HDBaseT Transmitter Features ■ • HDMI 2.0 & VGA Inputs 4K 30 4:4:4, 4K60 4:2:0 HDMI Support • HDR 4:2:2 12 Bit Support • • DCI 2K, 1080P, 1920x1080x60 VGA Support HDCP 2.2 & Earlier Supported • •...
  • Page 5 AC-EX100TT-UHD-T  Notice AVProConnect reserves the right to make changes to the hardware, packaging and any accompanying documentation without prior written notice. Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this device to 6.
  • Page 6 AC-EX100TT-UHD-T What’s In The Box? Two ways to purchase: ■...
  • Page 7 AC-EX100TT-UHD-T Specifications ■...
  • Page 8 AC-EX100TT-UHD-T Powering the AC-EX100TT-UHD-T ■ There are 2 ways to power the unit: 1. Use a HDBaseT Receiver that provides up stream power. We recommend using the AC-EX100-UHD-R2. 2. If you will be using the unit directly into a NON PoE provider (AVR, projector, display, or other HDBaseT receiver), you can power it using a 48v, .5A - 2 pin type power supply.
  • Page 9 HDBT Rx -- The PoE slide switch should be set to Tx. 3. Be sure you have the power supply plugged in on the newly selected PoE origination side. 4. Continue normal operation. AC-EX100TT-UHD-T (Tx) Slide Switch Location AC-EX100-UHD-R2 (Rx) Slide Switch Location...
  • Page 10 AC-EX100TT-UHD-T IR Configuration ■ The AC-EX100TT-UHD-T has an IR input designed to work when connected directly to control processors, or other IR signal generators like Global Cache, On Controls, etc... IR signals are routed through the entire HDBaseT link to the Rx (AC-EX100-UHD-R2).
  • Page 11 RS-232 Pass-Through ■ The AC-EX100TT-UHD-T has a bi-directional RS-232. RS-232 signals are routed through the entire HDBaseT Link to the Rx (AC-EX100-UHD-R2). You must plug into the "HDBT" RS232 port - This will pass unaltered commands to the Rx. This...
  • Page 12 RS-232 port and the HDBaseT stream. As soon as a properly formatted command is detected, the command is executed inside of the AC-EX100TT-UHD-T. This means you can control/switch ports from a distance or from local RS-232 with proper commands. Commands that are not listed below, get forwarded to the RS-232 port at the remote Rx.
  • Page 13 The RS-232 port is also connected to the HDBT extender, and available on the remote end. We allow a control system to communicate both with the device on the other end as well as the AC-EX100TT-UHD-T directly. To do this, the commands above must be prefixed with either @ex100tt or @<hostname>...
  • Page 14 AC-EX100TT-UHD-T Using Ethernet (as a HUB): ■ Ethernet usage is very straight-forward. It is used for driving network communication over the HDbaseT link. This of these ports as a "Hub", if you plug one port into a router all the other ports on both the Tx & Rx now have access to the network.
  • Page 15 By default the unit is reached by using the STATIC IP above. You can toggle DHCP on/off as well by pressing and holding the input select button for 5 SECONDS as you power up the AC-EX100TT-UHD-T. Press and hold to toggle DHCP Using DHCP/Host Alias - The Host Alias is an alternate way to access &...
  • Page 16 AC-EX100TT-UHD-T Ethernet (IP/LAN) Control cont. (Commands) ■...
  • Page 17 AC-EX100TT-UHD-T Ethernet (IP/LAN) WebOS Example Page ■...

  • Page 18: Selecting The Source

    You also have the ability to select a source if VGA and HDMI are both occupied. Selecting the source is a single press on the "Input Select" button on the front of the AC-EX100TT-UHD-T. There are only 2 possible states: When the light is ORANGE/AMBER the HDMI source is active.

  • Page 19: Mounting Options

    AC-EX100TT-UHD-T Mounting Options ■ While the AC-EX100TT-UHD-T can be mounted any way or anywhere you see fit with the supplied mounting ears, there are three common BYOD end user configurations: 1. In a "Table-Top" configuration: The unit is out on a top of a table for the user to plug into.

  • Page 20: Maintenance

    Maintenance  To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 21: Warranty

    Support  Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...
