Summary of Contents for Sumig NANOCUT 40
- Page 1 OPERATING MANUAL Please read and understand this instruction manual carefully before the installation and operation of this equipment.
-
Page 2: Table Of Contents
Thank you for your purchase of NANOCUT 40 Plasma Cutting Machine. We are proud of our range of welding equipment that has a proven track record of innovation, performance and reliability. Our product range represents the latest developments in Inverter technology put together by our professional team of highly skilled engineers. -
Page 3: Safety
Safety Welding and cutting equipment can be dangerous to both the operator and people in or near the surrounding working area if the equipment is not correctly operated. Equipment must only be used under the strict and comprehensive observance of all relevant safety regulations. Read and understand this instruction manual carefully before the installation and operation of this equipment. - Page 4 Arc rays: harmful to people’s eyes and skin. Arc rays from the welding process produce intense visible and invisible ultraviolet and infrared rays that can burn eyes and skin. • Always wear a welding helmet with correct shade of filter lens and suitable protective clothing including welding gloves whilst the welding operation is performed.
-
Page 5: Caution
Electronic magnetic fields. MAGNETIC FIELDS can affect Implanted Medical Devices. • Wearers of Pacemakers and other Implanted Medical Devices should keep away. • Implanted Medical Device wearers should consult their doctor and the device manufacturer before going near any electric welding, cutting or heating operation. Noise can damage hearing. -
Page 6: Maintenance
2.4 Do not come into contact with the output terminals while the machine is in operation. An electric shock may possibly occur. Maintenance Exposure to extremely dusty, damp, or corrosive air is damaging to the welding machine. In order to pre - vent any possible failure or fault of this welding equipment, clean the dust at regular intervals with clean and dry compressed air of required pressure. -
Page 7: Machine Features And Technical Data
Machine Features and Technical Data... -
Page 8: Machine Layout Description

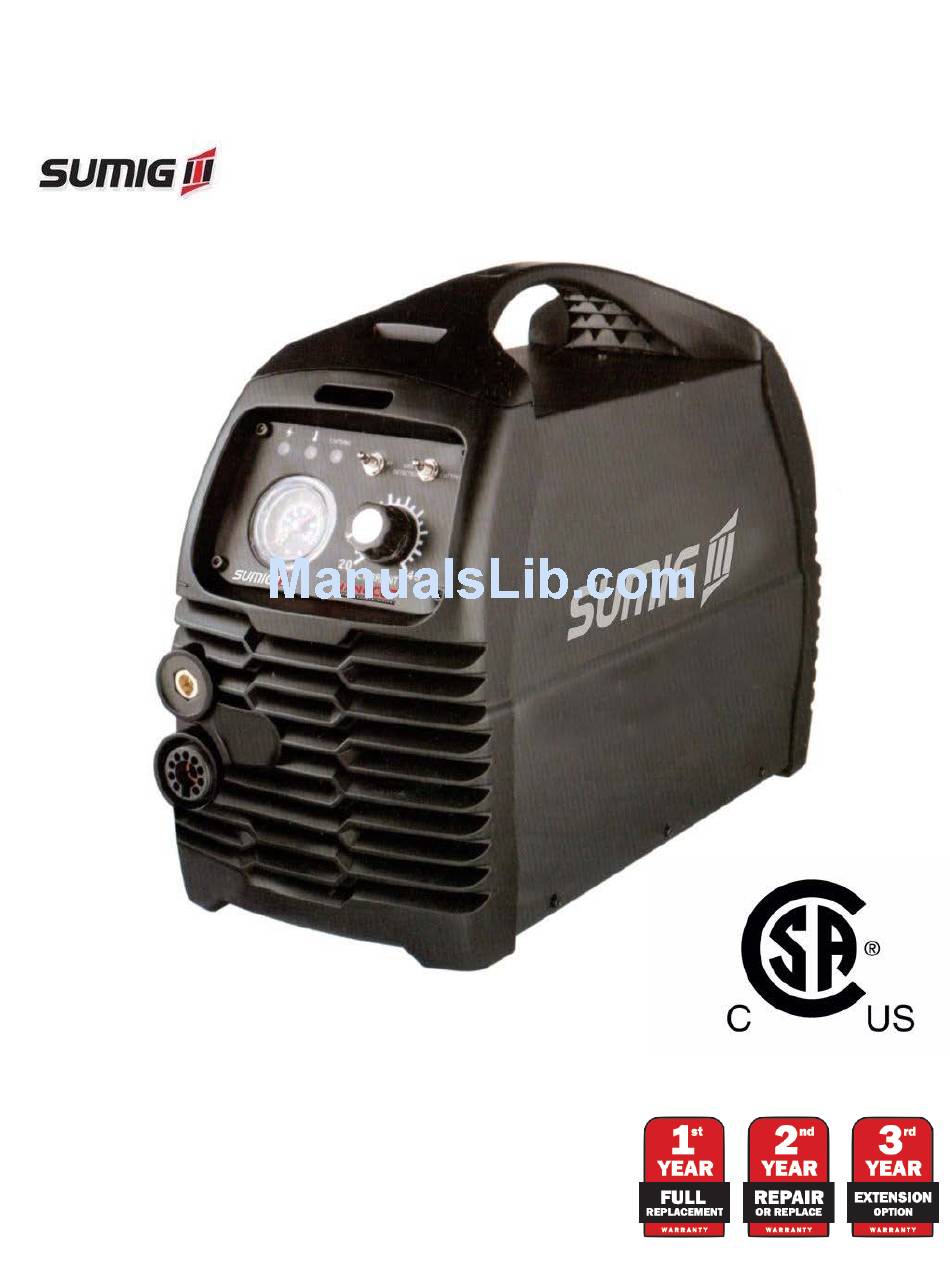

Machine Layout Description Front Panel Layout 1- TORCH CONNECTION 2- EARTH CONNECTION 3- AIR PRESSURE GUAGE 4- CURRENT ADJUSTMENT 5- CUTTING MODE SWITCH 6- TRIGGER LATCH OPERATION 7- CUTTING OPERATION LIGHT 8- OVERLOAD LIGHT 9- POWER LIGHT Rear Panel Layout 10- POWER SWITCH 11- INPUT POWER CABLE... -
Page 9: Installation And Machine Setup
Installation and Machine Setup... -
Page 10: Operation Procedures And Techniques For Plasma Cutting
Operation Procedures and Techniques for PLASMA Cutting The best quality cut will be produced when all these variables are set correctly for the material thickness and type of material being cut. -
Page 14: Limited Warranty Terms
(clause 3) 1 year on torch body, cables and connectors only. (MIG Guns, lifetime on trigger switch & handles) Sumig makes no warranties expressed or implied of fitness for a purpose, on any order except that seller warrants that all goods described on seller’s bill of sale will be manufactured in accordance with the specifications, if any, set forth in said bill of sale and... - Page 15 Sumig USAs discretion. In no event shall Sumig USA be liable for any consequential or incidental damages, including, without limitation, any loss of anticipated production costs, revenue or profits incurred by purchaser with respect to any goods or services furnished by seller.
