3B SCIENTIFIC PHYSICS 1000562 Instruction Sheet

3B SCIENTIFIC ® PHYSICS
Instruction Sheet
10/15 Hh

1. Safety instructions

The light sensor must only be used for educa-
tional purposes!

The light sensor is not suitable for safety-
related applications!

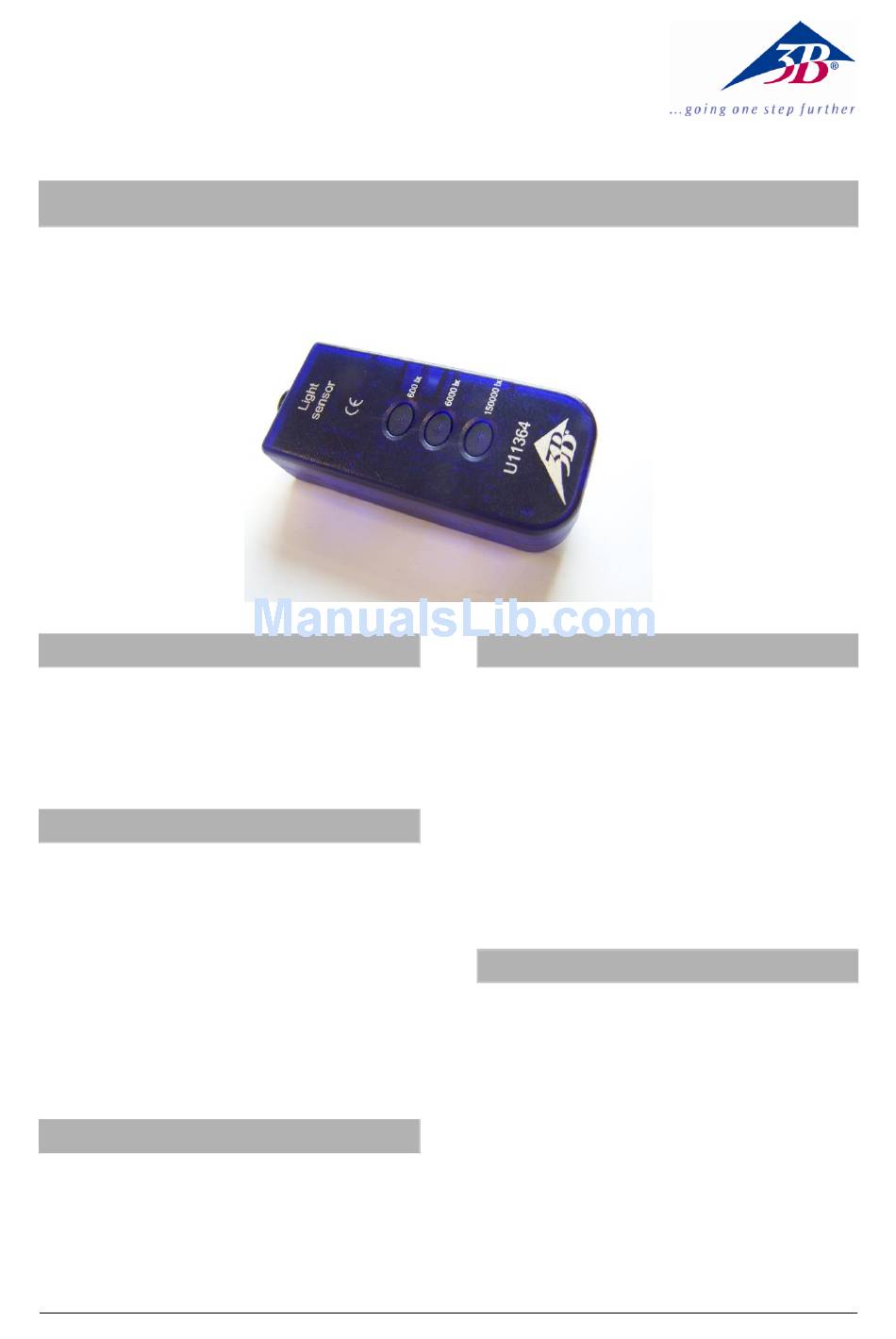

2. Description

Sensor box incorporating photodiode with opti-
cal filter for the measurement of light intensity
(illuminance), especially in the visible region.
Push-button selection of measurement ranges
600 lx, 6000 lx or 150000 lx, with visual indica-
tion of range.
8 mm light tube for excluding unwanted light
from sides.
The sensor box and range setting are recog-
nised automatically by the 3B NETlog

3. Equipment supplied

1 Sensor box
1 Stand with screw thread, 120 mm
1 miniDIN 8-pin connecting cable, 600 mm
long
1 Instruction sheet
Light Sensor 1000562
TM
.
1

4. Technical data

Measurement ranges
and resolution
Sensor type:
Sensitivity:
Non-linearity:
Bandwidth:

5. Operation


Place the sensor box close to the experi-
ment.

Read off the light intensity value on the
display of the 3B NETlog

If the light intensity exceeds the measure-
ment range, switch to the next higher
range.
0 to 600 lx / 0.8 lx
0 to 6000 lx / 8 lx
0 to 150000 lx / 200 lx
Silicon photodiode with
low dark current
Typically 0.65 µA at
100 lx
Max. ±1 % of the total
measurement range
Typically 10 kHz
