Preliminary remark:
The following must be checked prior to starting the assembly of the ladder and the accessories:
- is the structure of the wall or wall unit suitable (cabinet side panels and cabinet bases min. 19mm thick)
- is a sufficient stability of the wall unit available (in case of any doubts, ask an expert)
Only original parts of the ladders and/or fixing materials from our firm may be used.
Material and/or product liability cannot be granted in case of improper assembly or the use of outside
supplied parts and/or modifications.
Single parts for the ladder:
A) 2 pieces top roller fittings
B) 2 pieces safety lock screws M5 x 25 mm with self-locking nut M5
C) 2 pieces plastic oval end caps
D) 2 pieces bottom castors
E) 4 pieces hexagon bolts M8 x 40mm
F) 4 pieces steel springs M8

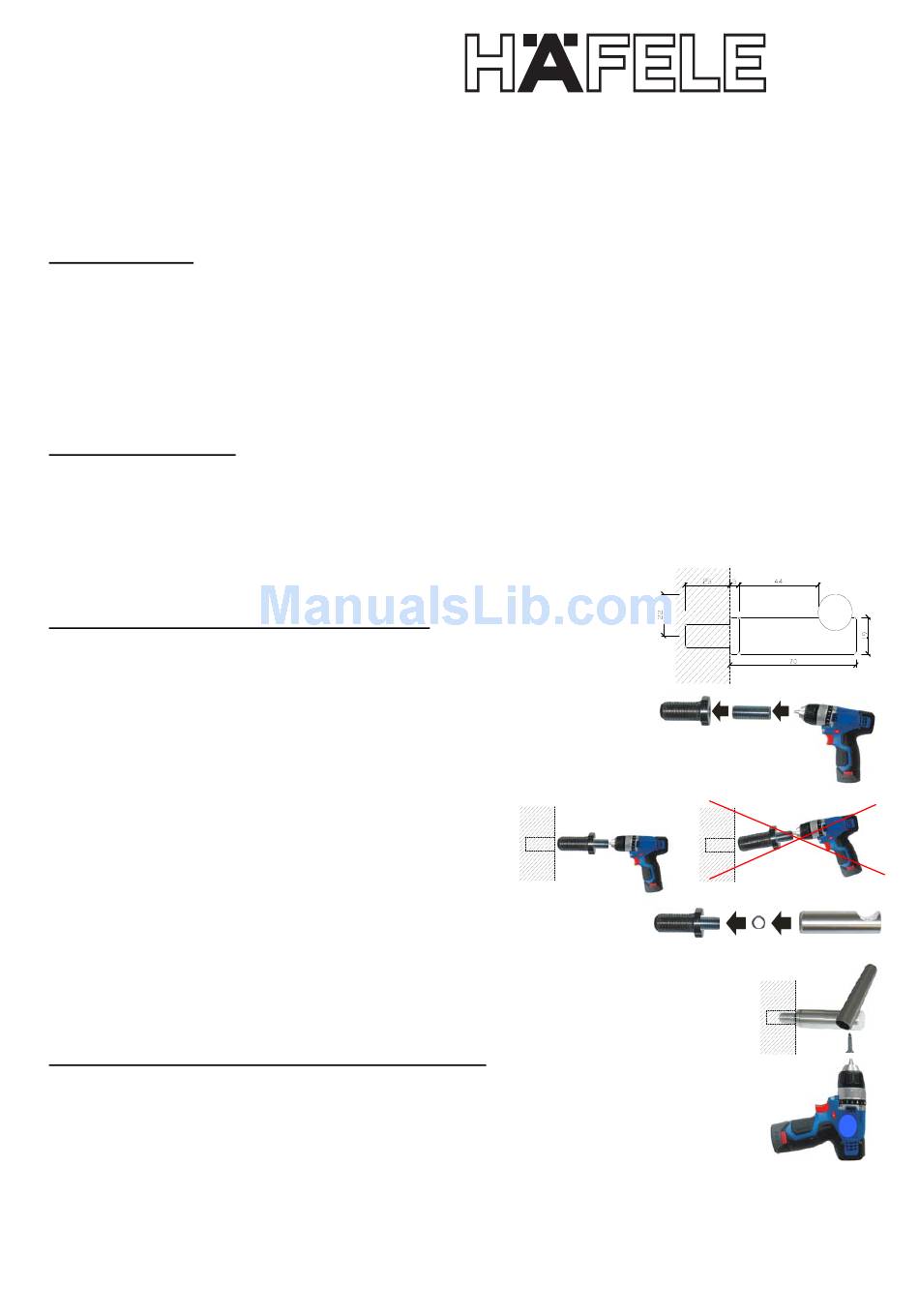

Assembly of the tube holders on cabinet and wall units:
(1) Drill cabinet side panel, cabinet panel or shelves (D=11mm)
- check the dimension of the hook-in height to the drill hole centre.
(2) Turn the provided grub screw into the mounting bushing.
(3) Turn the mounting bushing with the grub screw into the hole (D=11mm) with a
cordless screwdriver and a socket bit insert (size 4).
Please verify that ...
...the mounting bushing is not placed diagonally
...the mounting bushing is positioned properly on the
panel and/or the wall unit or the shelves.
(4) Push the black O-ring onto the grub screw.
(5) Turn the tube support tightly onto the grub screw and align it so that the
semi-circular recess is on top.
(6) Place the running tube onto the holders and tighten by using the provided
drill head screw (you can pre-drill the tube for simplification (D=3.2mm)).
Assembly of the tube holders to masonry or plasterboard walls:
Version 1: Place a sleeve with an M8 internal thread and tighten the holder
via the provided M8 grub screw and align it so
that the semi-circular recess is on top.
Version 2: Place the dowel into the wall and tighten an M8 threaded pin (length of approx. 70mm)
so far into the dowel until only 15 mm show. Then tighten the holder onto the threaded pin and align it so
that the semi-circular recess is on top.
Assembly Instructions
Sliding ladder G1102
System 20
Page 1 of 2
