Summary of Contents for Lightspeed Rocket

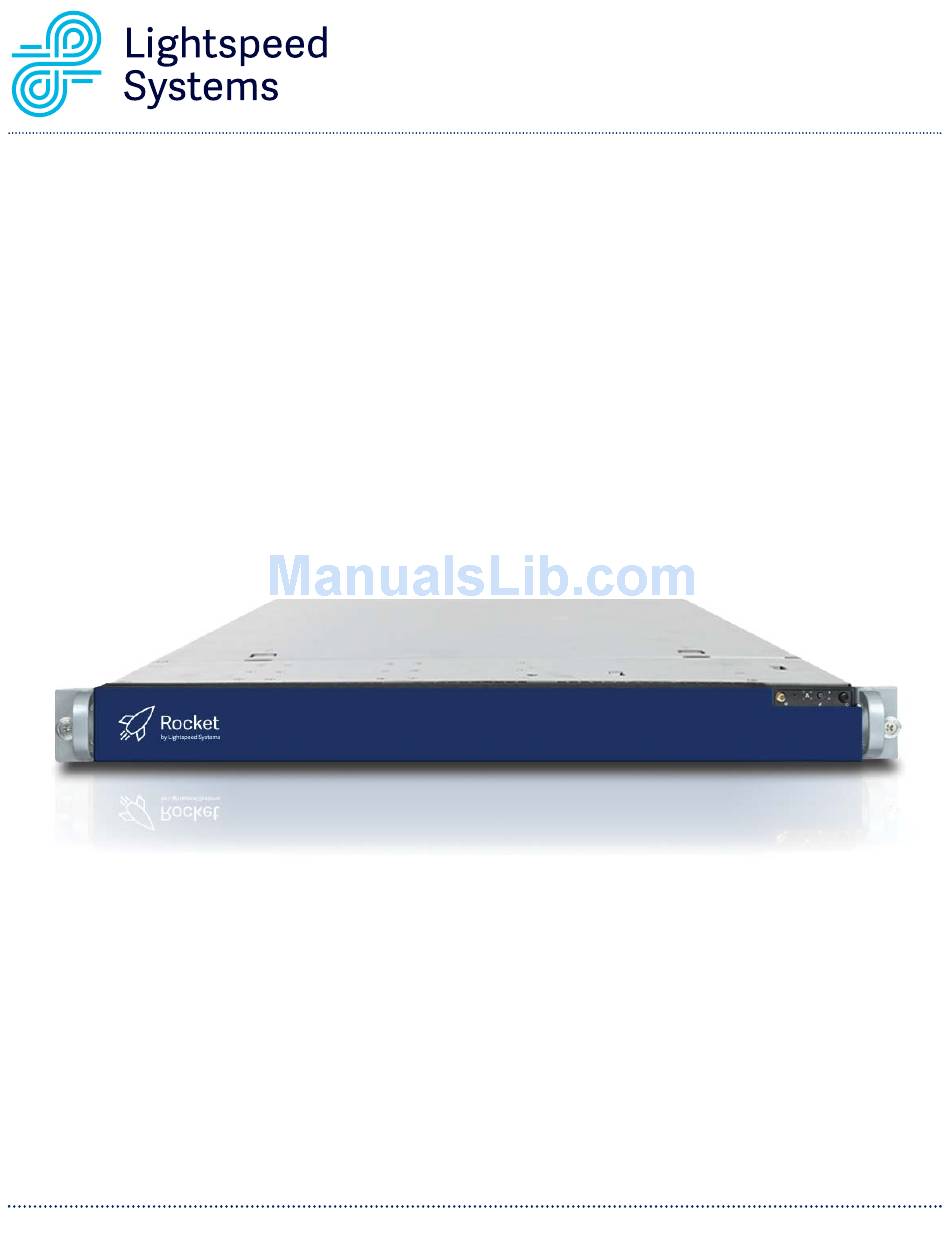

- Page 1 Lightspeed Rocket Hardware Installation Guide 1800 19th Street Bakersfield, CA 93301 Tel: 661.716.7600 Toll Free: 877.447.6244 / www.lightspeedsystems.com...
-
Page 2: Table Of Contents
Section 6C Lightspeed Rocket Web Filter - 1Gb Rear Panel Connections ......9 Section 6D Lightspeed Rocket Web Filter - 1Gb Fiber Rear Panel Connections . -
Page 3: Safety Notice And Warnings
Practices for Perchlorate Materials. This product/part includes a battery that contains perchlorate material. Ratings AC input voltage: 100 - 240 VAC (auto-range) Hz: 50/60 A: 100 - 127V ~/4A Max 200 - 240V ~/2A Max Lightspeed Rocket Hardware Installation Guide... -
Page 4: Electrical And General Safety Guidelines
Be sure to recycle the old battery packs properly. Comply with all applicable battery disposal and hazardous material handling laws and regulations in the country or other jurisdiction where you are using the BBU. Lightspeed Rocket Hardware Installation Guide... - Page 5 Put the motherboard and peripherals back into their antistatic bags when not in use. • For grounding purposes, make sure your computer chassis provides excellent conductivity between the power supply, the case, the mounting fasteners and the motherboard. Lightspeed Rocket Hardware Installation Guide...
-
Page 6: Site Preparation
Follow the rail installation instructions included in the rail kit to install the appliance in your rack. • After the appliance is installed in the rack, proceed to Section 6 on page 7 for rear panel connections. Lightspeed Rocket Hardware Installation Guide... -
Page 7: Lightspeed Rocket Email Management - 1Gb Rear Panel Connections
6A. Lightspeed Rocket Email Management - 1Gb Rear Panel Connections Power Cords Power Cor USB Ports USB Ports Network Interface Connectors Network Interface Connectors Network Interface Connectors Power Good LEDs Power Good LEDs Management Managemen Management Port Port Auxilliary Auxilliary... -
Page 8: Lightspeed Web Filter Policy Parent Rear Panel Connections
6B. Lightspeed Web Filter Policy Parent Rear Panel Connections Power Cords Power Cor USB Ports USB Ports Network Interface Connectors Network Interface Connectors Network Interface Connectors Power Good LEDs Power Good LEDs Management Managemen Management Port Port Auxilliary Auxilliary xilli... -
Page 9: Lightspeed Rocket Web Filter - 1Gb Rear Panel Connections
6C. Lightspeed Rocket Web Filter - 1Gb Rear Panel Connections Power Cords Power Cor r d USB Ports USB Ports Network Interface Connectors Network Interface Connectors Network Interface Connectors Power Good LEDs Power Good LEDs Internal ernal Management Managemen Management... -
Page 10: Lightspeed Rocket Web Filter - 1Gb Fiber Rear Panel Connections
6D. Lightspeed Rocket Web Filter - 1Gb Fiber Rear Panel Connections Power Cords Power Cor r d USB Ports USB Ports Network Interface Connectors Network Interface Connectors Network Interface Connectors Power Good LEDs Power Good LEDs Internal ernal Management Managemen... -
Page 11: Lightspeed Rocket Web Filter And Traffic Bridge - 10Gb Fiber Rear Panel Connections
6E. Lightspeed Rocket Web Filter and Traffic Bridge - 10Gb Fiber Rear Panel Connections Power Cords Power Cor r d USB Ports USB Ports Network Interface Connectors Network Interface Connectors Network Interface Connectors Power Good LEDs Power Good LEDs Internal... -
Page 12: Lightspeed Rocket Web Filter - Dual Bridge 1Gb Fiber Rear Panel Connections
Lightspeed Rocket Web Filter - Dual Bridge 1Gb Rear Panel Connections Power Cords Power Cor USB Ports USB Ports Network Interface Network Interface Power Good LEDs Power Good LEDs Internal 1 Inte nal 1 na a l 1 Connectors Connectors... -
Page 13: Front Panel Operation And End User License Agreement (Eula)
System Cold Reset Button still functioning Hard Drive Activity LED Critical, non-recoverable - AMBER Solid - On system is halted Power Button with integrated LED NIC 1 Activity LED NIC 3 Activity LED Lightspeed Rocket Hardware Installation Guide... -
Page 14: Bezel Installation On The Appliance
Left Flexible Left Flexible Right Fixed Right Fixed Bezel Tab Bezel T T a Bezel Tab Bezel T T a Lightspeed Rocket Hardware Installation Guide... - Page 15 This page intentionally left blank Lightspeed Rocket Hardware Installation Guide...
- Page 16 Support: 800.444.9267 www.lightspeedsystems.com Lightspeed Systems Europe: Jubilee House The Drive, Brentwood Essex CM13 3FR; Reg No: 05336060 England and Wales Tel: +44 (0) 1277 240 630 Fax: +44 (0) 1277 240 631 Copyright ©2014-2015 Lightspeed Systems, Inc. All rights reserved.
