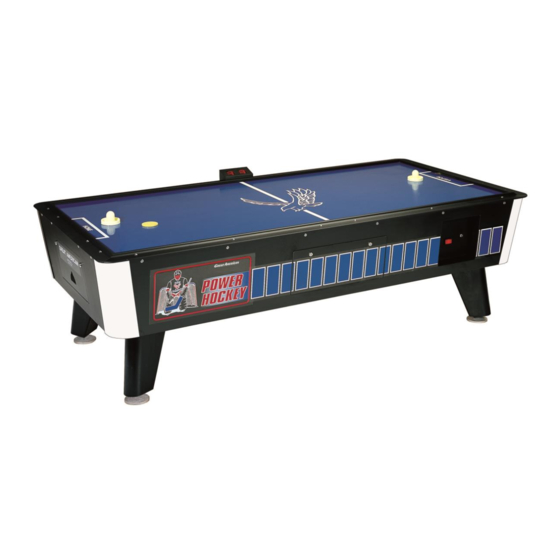

Summary of Contents for Great American Recreation Home Power Hockey Table

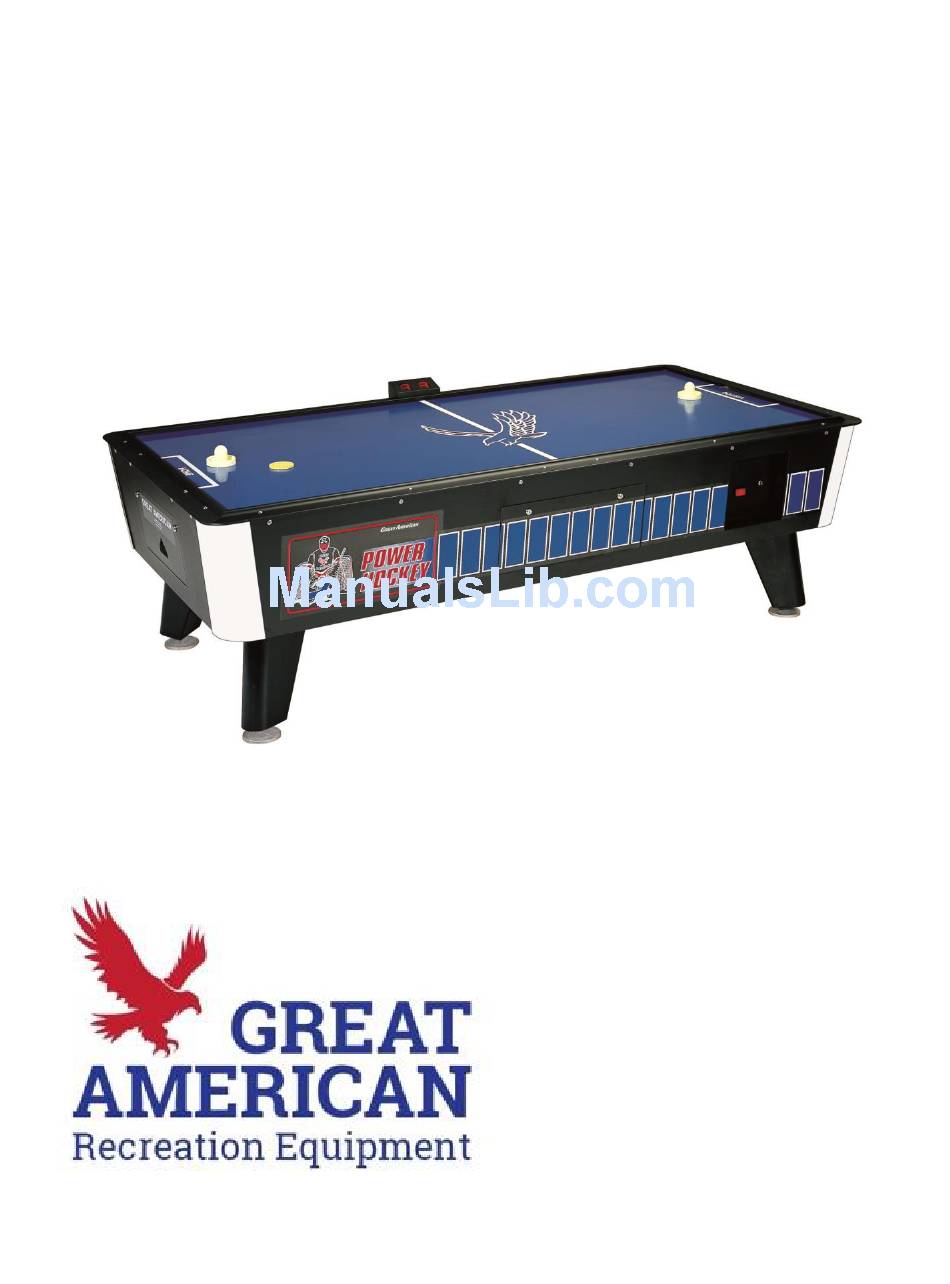

- Page 1 Power Hockey Side Score (non-coin) Setup & Assembly Instructions 20 Providence Pike North Smithfield, RI 02896 800-831-2011 • (f) 401-463-6673 www.GreatAmericanRec.com games@greatamericanrec.com...
-
Page 2: Parts List
You for purchasing the Great American Recreation Home Power Hockey Table. This table is a home version of our commercial grade Power Hockey Table. It is designed to withstand many thousands of plays in a commercial environment (i.e. bar, video game/amusement center, etc.). -
Page 3: Setup Instructions
Setup Instructions 1. Locate key taped to Home Power Hockey Table playing surface. 2. Open trap door on the bottom of the H.P.H. Table. 3. Remove 4 legs with levelers and a bag of (16) bolts attached to the inside of the trap door. - Page 4 Power Supply Access Door Power On/Off Switch (Inside of Door) Side View of Home Power Hockey Table Puck Drop Access Doors Locate the Puck Drop Access Door on either end of the H.P.H. Table. These doors can be opened, using the keys provided, to remove the any foreign objects which may fall...
- Page 5 Power Hockey Wiring Diagram Rev. 11/4/ 98...
-
Page 7: Dip Switch Settings
DIP Switch Settings (If Your Hockey has a YELLOW LOGIC BOARD) AH2004(V1.05) DIP Switch Number 1 Description Value Of Play Score Of Play Timer (Minutes) Coins Play If using a slide mech this is set to one and the slide determines the pricing. - Page 8 AH2004(V1.05) DIP SW 2 Description Value Factor What should the pulses out of the DBA be divided or multiplied by to equal one coin. MULTIPLY* Multiply or Divide Pulses DIVIDE * Denotes Factory Setting Connector Pin Outs #1 is left hand pin facing connector and has square solder pad. Connector Function Pin#...
- Page 9 Jl Edge Connector Pin Out Top (Parts Side) Bottom (Solder Side) AC IN 1 AC IN 1 Coin 2 Switch AC IN 2 DC Ground AC IN 2 DC Ground Start Switch(N/U) DC Ground Left Puck Switch DC Ground Right Puck Switch DC Ground Coin 1 Switch +12VDC...
- Page 10 Puck Lockout Soleniod Installation 1. Remove the side covers from the overhead score unit by removing two phillip screws on each end cap. 2. Disconnect the 3 wire connections for the overhead score unit. 3. Remove overhead score unit by removing 4 bolts in the side mounting bracket. 4.
