LumaSense technologies LumaSmart Quick Start Manual

Introduction

LumaSMART is a fiber optic temperature sensing and
control system specifically designed for direct winding
temperature measurement and cooling control in high-
voltage power transformers.

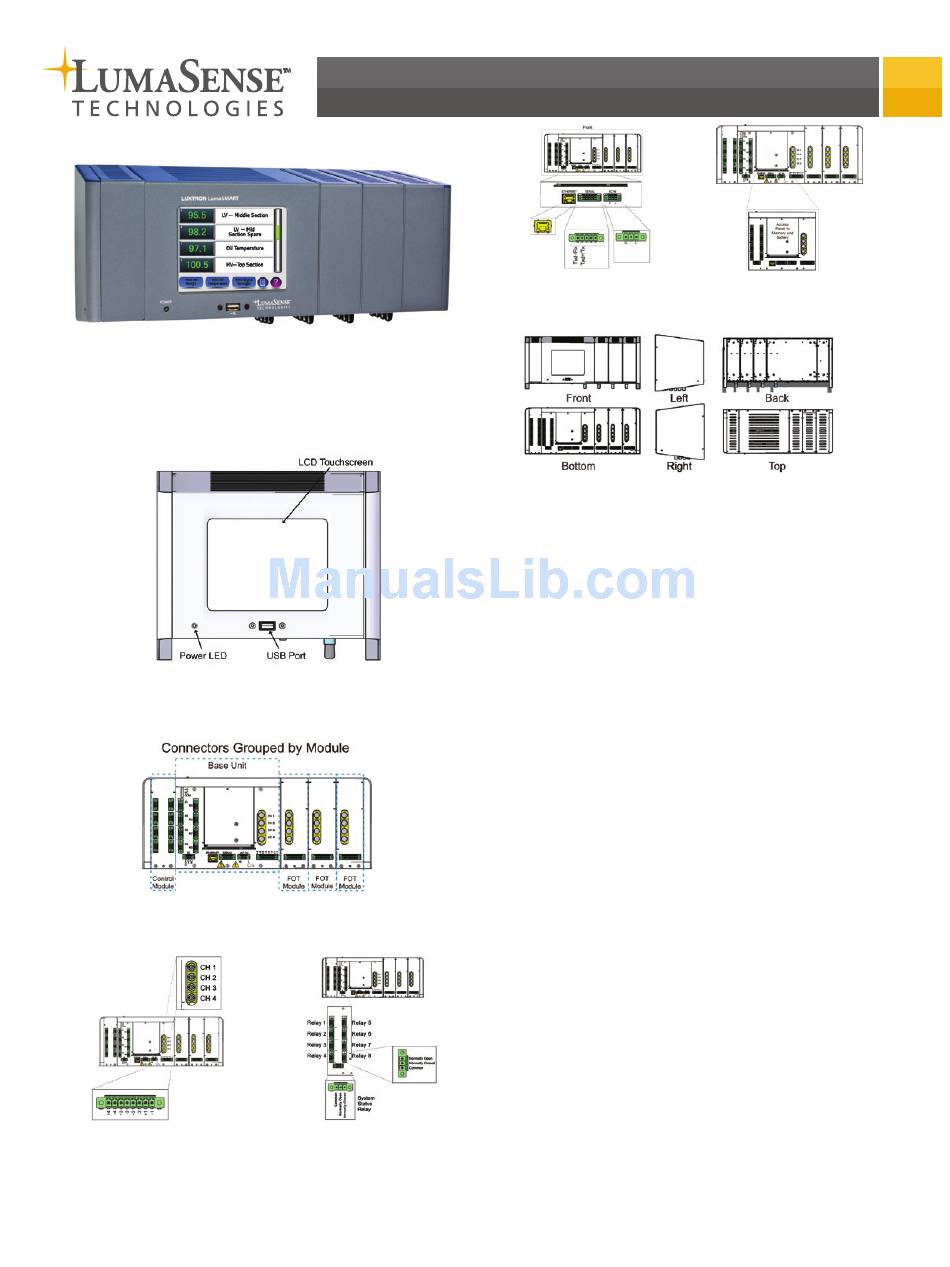

Controller Features (Front)

Additional Controller Images

LumaSMART Controller with FOT and Relay Modules Bottom View
(Front Facing Upwards)
LumaSMART Controller FOT
Connections (Front Facing
Upwards)
LumaSMART Quick Start Guide
LumaSMART Controller Relay
Connections (Front Facing
Upwards)
LumaSMART Controller Base Unit
Communication and Power
Connections
(Front Facing Upwards)
LumaSMART Controller with Added FOT and Relay Modules

Unpacking and Inspection

1) Upon receipt, inspect the container in which the
LumaSMART controller is packaged prior to opening
to ensure there is no obvious damage that may have
occurred during shipping.
If there is reason to suspect that the contents were
damaged in shipping, immediately file a claim with
the carrier before contacting LumaSense.
2) Open the shipping container and carefully remove
the LumaSMART controller and related instruments.
3) Check the contents against the enclosed packing list
and inspect for signs of visible damage.
If any items are missing or if there is visible damage
to the instruments, contact:
Customer Care (Santa Clara, CA)
Email: support@lumasenseinc.com
Phone: +1 800 631 0176 or +1 (408) 727-1600
4) If everything is in order, save the packing material for
possible future use.
Mounting the LumaSMART
Controller
The LumaSMART controller can be mounted using one of
three methods: wall, panel, or rack mount. Refer to
section 4.2 of the manual (a copy is available on the
enclosed CD) for mounting instructions.
Connecting Fiber Optic
Extensions
Connect one of the following to the instrument to
ensure that no light enters the unit as it will cause
erroneous readings: fiber optic extensions, phosphor
plugs, or (at a minimum) the black plastic endcaps that
came with the unit. See Section 4.3 of the manual for
details on installing fiber optic extensions. A fiber optic
LumaSMART Controller Base
Unit Access Panel (Front Facing
Upwards)
