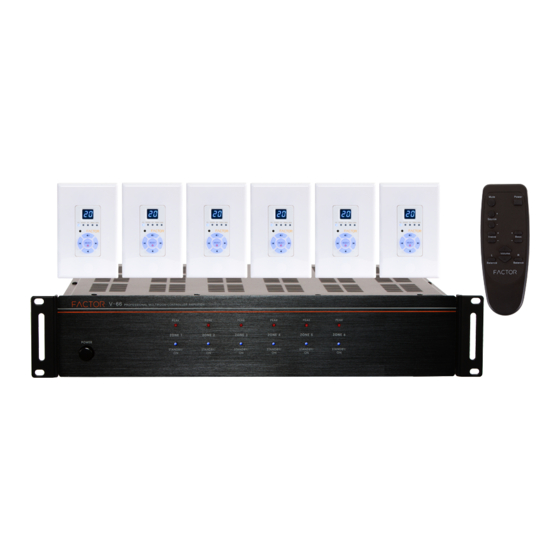

V-66-Wi-Fi Installation Instructions
Wi-Fi to RS232 Media Controller

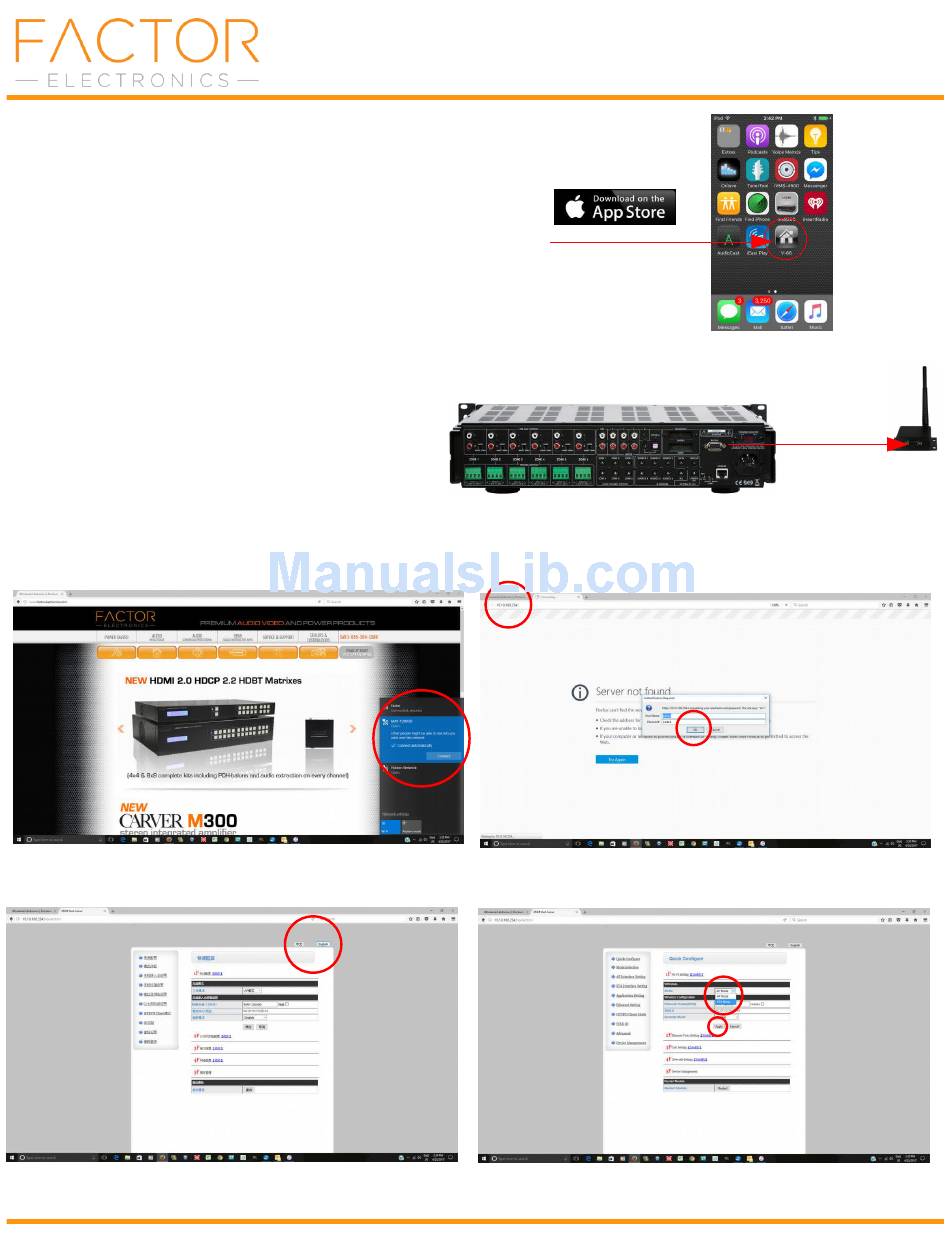

Complete the following steps first:
1. Download the V-66 app on your PC or mobile device.
Search "Factor V-66" on the iTunes App store for IOS.
E-mail "info@factorelectronics.com" for the Android app.
2. Connect the V-66 Wi-Fi to the V-66 using the included DB9 cable. Connect the antenna and
power supply to the V-66-Wi-Fi unit. Power On both the V-66 and the V-66-Wi-Fi.
3. You must have a MAC or PC connected to the LAN and write down the LAN password to
complete the setup as follows:
Search available networks and click on MAP-1200HD
Open a browser and enter 10.10.100.254 in the top bar. Click "OK"
Select your language of choice
Change AP Mode to STA Mode. Click Apply
Specifications are subject to change without notice www.factorelectronics.com
Advertisement
Summary of Contents for Factor Electronics V-66-Wi-Fi
- Page 1 2. Connect the V-66 Wi-Fi to the V-66 using the included DB9 cable. Connect the antenna and power supply to the V-66-Wi-Fi unit. Power On both the V-66 and the V-66-Wi-Fi. 3. You must have a MAC or PC connected to the LAN and write down the LAN password to...
- Page 2 Check your password and make sure it's correct. You can manually REBOOT The V-66-Wi-Fi by holding down the inset button for 10 sec . The inset button is located beside the DC power inlet.
