Table of Contents
Summary of Contents for Hill Audio RPQ-2150
- Page 1 RevA 06-2017...
-
Page 2: Important Safety Instructions

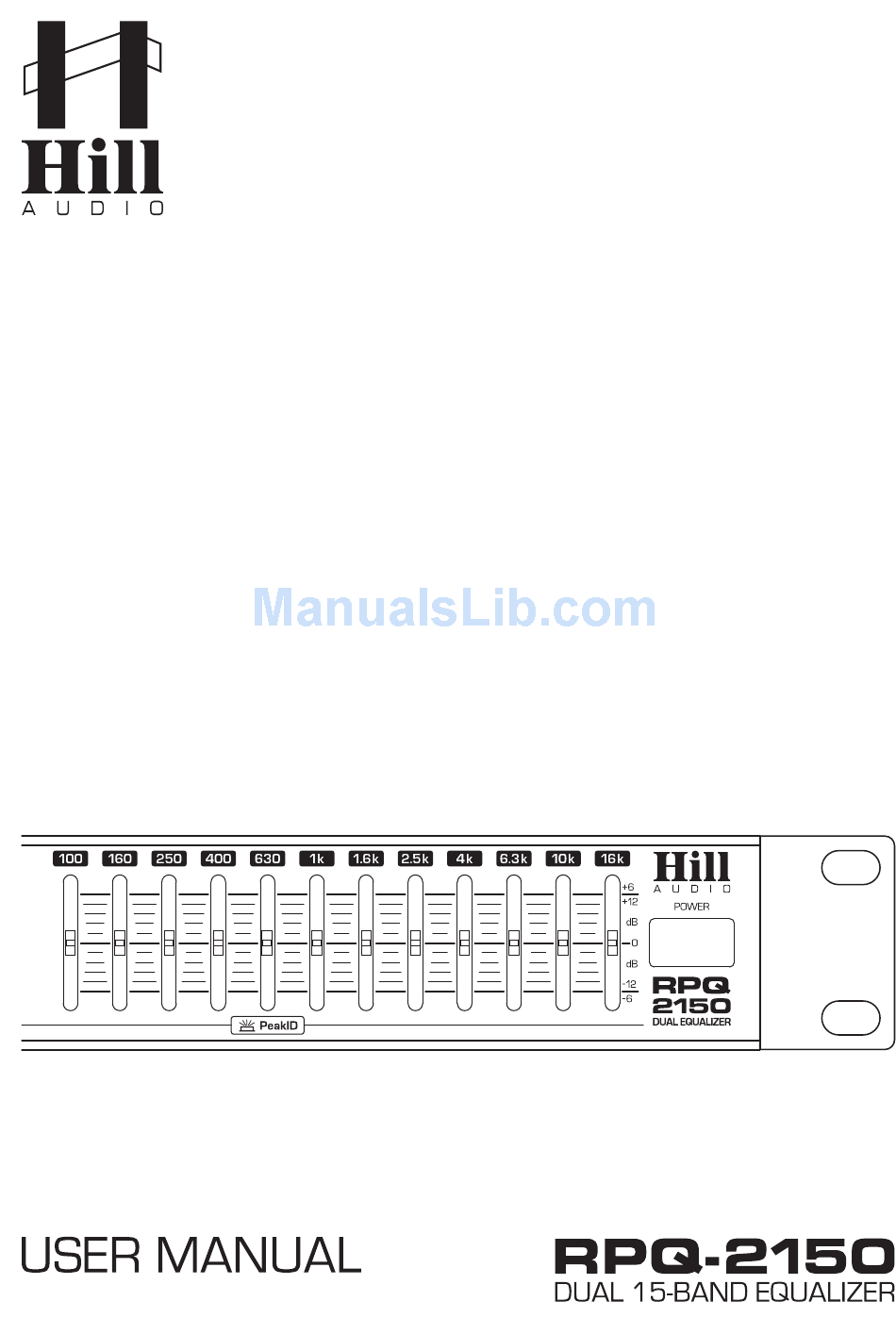

USER MANUAL - RPQ2150 DUAL 15-BAND EQ Welcome Thank you for choosing Hill Audio for your sound system. To make sure that this product meets your expectations and provides long-term, reliable performance, please read and follow this instruction manual carefully. -
Page 3: Health Advice
USER MANUAL - RPQ2150 DUAL 15-BAND EQ Description The RPQ-2150 is a stereo 15-band EQ with additional adjustable active subwoofer crossover. It sports a PeakID system helping to identify energy peaks in the audio spectrum, thus facilitating the reduction of feedback danger. Low Cut Filters and level meters for the inputs, as well as a Mute func- tion for the outputs complete the features and make this units a versatile tool for any sound system. -
Page 4: Controls And Connections
USER MANUAL - RPQ2150 DUAL 15-BAND EQ Controls and Connections Connections - Rear Controls - Front PAGE 3... -
Page 5: Functional Description
USER MANUAL - RPQ2150 DUAL 15-BAND EQ Functional Description The RPQ-2150 is a 2x15-Band stereo graphic equalizer with additional built-In active subwoofer crossover with adjustable frequency. It sports a switchable 6/12dB range, a PeakID system for feed- back alert, switchable 25Hz Low-Cut filters and indivdual output level meters for each channel. -
Page 6: Technical Specifications
USER MANUAL - RPQ2150 DUAL 15-BAND EQ Connections The RPQ-2150 uses the below connector types, for which the pin assignment must comply with the following specification. Always make sure to use good connectors and cables to ensure proper opera- tion. Balanced connections are to be preferred over unbalanced connections where applicable and feasible. -
Page 7: Operation
USER MANUAL - RPQ2150 DUAL 15-BAND EQ Operation A. Connections For connecting this unit to AC mains, please note: Check whether the AC mains voltage and frequency is the same as this product is specified for (see rear panel of product). Whenever the specified voltage or your AC plug should not match the local conditions, do NOT plug the AC cord into the wall outlet and contact you dealer immediately. -
Page 8: Ec Declaration Of Conformity
Burnham-on-Crouch, 30.06.2017 Place and date of issuing Authorized Signature www.hill-audio.com Hill Audio products are developed, manufactured and distributed by Adelto Technologies Unit 2A Springfield Road, Springfield Industrial Estate, Burnham-on-Crouch, Essex CM08UA, England www.adelto.com | sales@adelto.com...
