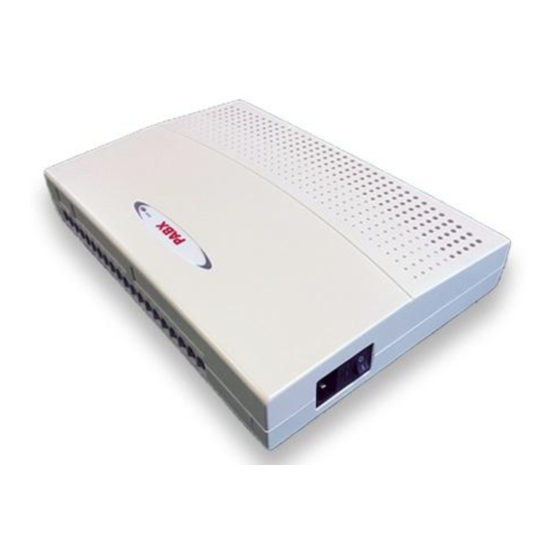

Telstar Electronics PABX 3x8 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

PBX System
USER'S MANUAL
v2.1
for TELX PABX Models 3x8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PABX 3x8 and is the answer not in the manual?

Questions and answers

Related Manuals for Telstar Electronics PABX 3x8

Summary of Contents for Telstar Electronics PABX 3x8

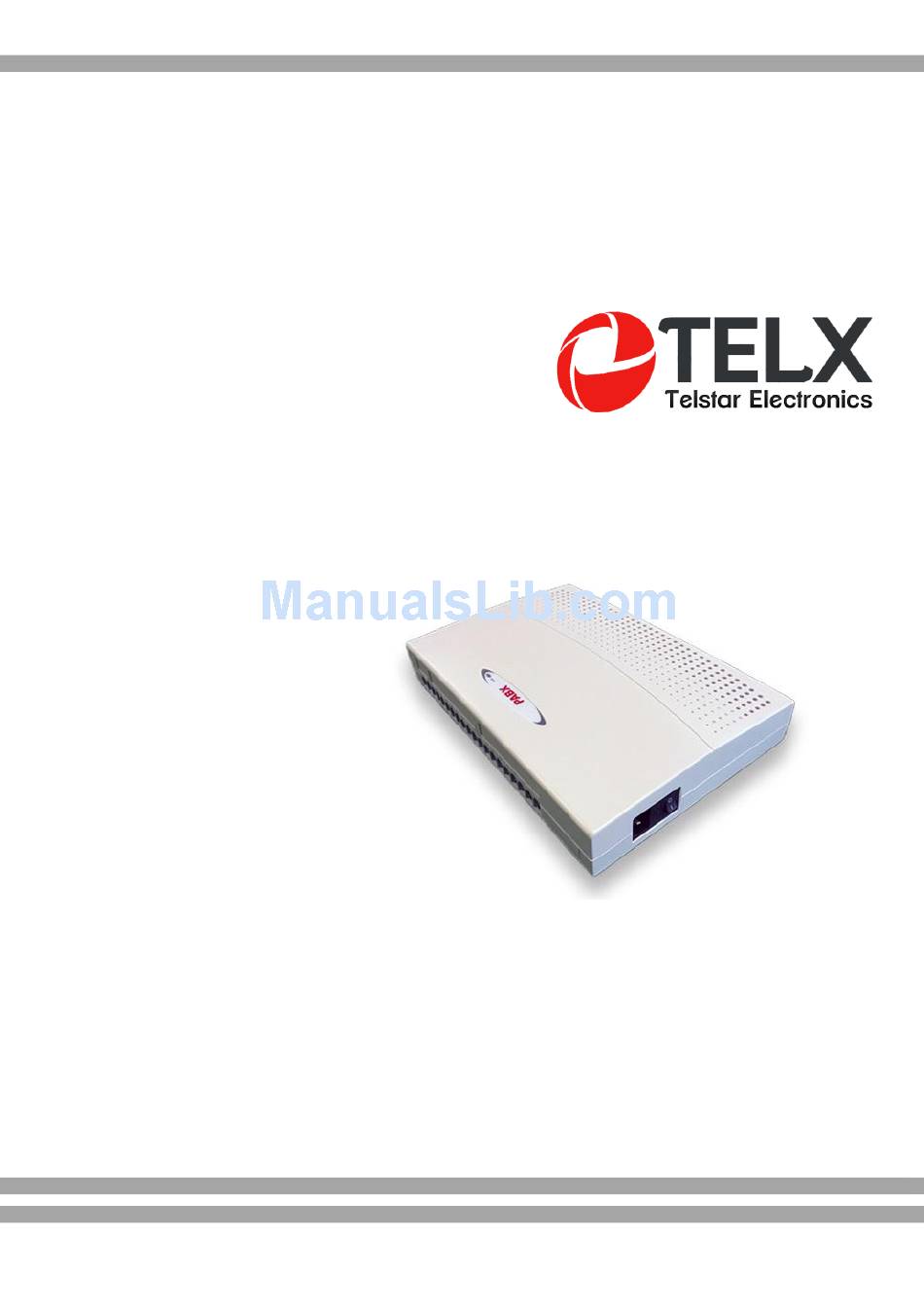

  • Page 1 PBX System USER’S MANUAL v2.1 for TELX PABX Models 3x8...

  • Page 2: Before Operation

    Before Operation What Kind of Telephones You Can Use With Our PBX Can use any brand Single Line Telephone Set to program and work with it Attention Make Sure the Power Supply is 220VAC or 110VAC Before Connection. WARNING CHECK THE POWER SUPPLY OF THE PBX BEFORE CONNECTION, MAKE SURE IT IS SAME AS LOCAL VOLTAGE DO NOT PLUG IN OR PLUG OUT THE ADD-ON CARD OR OTHER EQUIPMENT WHEN PBX IS POWER ON.

  • Page 3: Make Calls

    1.1 Make Calls 1.1.1 Basic Calling - Intercom Call - Call Operator - Call Outside Intercom Calling The extension call to other extension. Operate Extension no. (801~808) Off-hook Dial extension number Talk Extension no. : It means original extension numbers 801,802,803 ~808 ,or the new numbers that you have modified;...
  • Page 4 1.1 Make Calls Call Outside The extension call to outside telephone number . Operate Outside no. dial “0 ” Off hook Dial Outside Talk or #CO: CO= 1~3 Telephone no. Dial “0” : System will auto-select any idle free Outside Line; Dial #01~#03: System will directly select desired Outside Lines 1~3;...

  • Page 5: Last Number Redial

    Make Calls 1.1.2 Last Number Redial Last Number Redial You can dial the last number again by quickly press Re-dial button. Redial number (REDIAL) Off hook dial button Talk REDIAL...

  • Page 6: Receiving Calls

    Receiving Calls 1.2.1 Call Pickup You can answer an incoming call that is ringing at other extension: - Randomly Pickup: pick up a ringing extension randomly; - Group Pickup: pick up a ringing extension within same group, System can set max. 2-group. Refer to System Program 24; Randomly Pickup Can pick up the extension which firstly ring .

  • Page 7: During A Conversation

    1.3 During a Conversation 1.3.1 Call Transfer Call Transfer You can transfer the conversation to other extension party. Operate During a conversation: Extension no. Flash Hook-switch Input umber on-hook Extension n #* +...
  • Page 8 During a Conversation 1.3.2 Multi-party Conference Call To Call For a Conference During a 2-party conversation (1CO +1EXT), you can add a third party join together for a 3- party conference call. Operate During a conversation: Extension no. Flash Hookswitch Press * + Extension number 3-party conference...

  • Page 9: System Program

    System Program 1.4.1Modify System Program Password Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook System Password 0 1 N E W P # New Password On-hook 2008: It is the original 4-digit password for System Program; NEWP: It refer to any 4-digit new password that you can set;...
  • Page 10 1.4 System Program 1.4.2 Play Music on Hold Steps Press Button 0 2 0 0 0 8 # Extension 8001 Off-hook System Password Music playing On-hook 2008: It is the original 4-digit password for System Program; Music: the built-in music can not be changed ,it will be played when Caller is transferring;...
  • Page 11 1.4 System Program 1.4.3 Return PBX to Factory Setting Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook System Password 9 0 0 0 # On-hook User can re-set system to factory after system work for some time; This code do not re-set Extension number, Outside Line port switch status and Call logs for PC.
  • Page 12 2.1 Auto or Operator Attendant Program 2.1.1 Record Auto-attendant Message Steps Press Button 0 0 2 0 0 8 # Extension 801 Off-hook 1 2 # begin record after 15seconds welcome msg. On-hook User can check the OGM record result by this feature Setting Code: * 1 3 #...
  • Page 13 2.1 Auto or Operator Attendant Program 2.1.2 Set Outside Lines in Auto-attendant Mode Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook System Password 1 0 # C O # 01~16 outside line port On-hook “ ”: This code is to set All Outside Lines in Auto-attendant mode;...
  • Page 14 2.1 Auto or Operator Attendant Program 2.1.3 Set Outside Lines in Operator-attendant Mode Steps Press Button 0 0 2 0 0 8 # Extension 801 Off-hook System Password 1 1 # C O # 01~16 outside line port On-hook “ ”: This code is to set All Outside Lines in Operator-attendant mode;...
  • Page 15 2.1 Outside Line Program 2.1.4 Enable/Disable Outside Line Ports Steps Press Button 0 0 2 0 0 8 # Extension 801 Off-hook System Password 4 M # 1st 8 port CO card M=1,2,3 the desire port which user want to enable On-hook...
  • Page 16 3.1 Extension Program 3.1.1 Extension Flexible Numbering Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook abc – 801-808 (Original extension number) 5 a b c A B C # prefixed number & digit-number ABC – 100-999 (New extension number) On-hook Reset extension number to factory: “*5000#”...
  • Page 17 3.1 Extension Program 3.1.2 Call Duration Control Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook System Password duration A B C D Extension number 01~99 minutes On-hook Description: Allow to control extension users to do not occupy the conversation and telephone line for long time.
  • Page 18 3.1 Extension Program 3.1.3 Call Duration Control - Cancel Steps Press Button 0 0 2 0 0 8 # Extension 8001 Off-hook System Password A B C D # to cancel Extension number On-hook...
  • Page 19 System Program List Command Function Login in system program mode by using password “2008” 1 **00 2008# Change factory password to new “ABCD” 2 *01 ABCD# 3 *4M Enable CO Line Port, (M = 1, 2, 3, 4) Set CO Line “N” as exclusive line of extension “abc” 4 *31N abc# Set extension “abc”...
