GOEBEL GO-39 Instruction Manual

E. B
REASSEMBLY:
NOTE: ALWAYS CHECK Fig. E CAREFULLY TO REASSEMBLE.
1) Position Rack Bearing Plate (9) through the rear of Aluminum Body (1) into the slot, then push Gear Rack (8)
forward into the front of Aluminum Body (1).
2) Position the first tooth of Gear Sector (10) engaged with the first tooth of Gear Rack (8) <NOTE: Can use a
screwdriver to adjust Gear Sector (10) position.>, the hole of Gear Sector (10) should align with the front Pivot
Pin hole, install the first Pivot Pin (17) with Pivot Pin Washer (16) and Snap Ring (15) to the front Pivot Pin hole
of Aluminum Body (1). When assembled correctly, the wider section (W) of Gear Sector (10) should face down to
Lower Handle (12) position.
3) Swing Upper Handle (11) to the front and to position the first tooth of Driving Gear (11) engaged with the first
tooth of Gear Sector (10) <NOTE: Can use a screwdriver to adjust Gear Sector (10) position.>, the hole of
Driving Gear (11) should align with the rear Pivot Pin hole, install the second Pivot Pin (17) with Pivot Pin
Washer (16) and Snap Ring (15) to the rear Pivot Pin hole of Aluminum Body (1).
4) Reassemble Head (3) back to Aluminum Body (1) firmly.
F. TROUBLE SHOOTING GUIDE:
1) PROBLEM - Rivet Mandrel can not be inserted into Working Nosepiece (2) or Spent Mandrel can not be ejected
after setting.
CAUSE 1 - Handles (11, 12) are not fully opened.
CORRECTION 1 - Open Handles (11, 12) fully.
CAUSE 2 - Working Nosepiece (2) is loose.
CORRECTION 2 - Tighten Working Nosepiece (2) with service Wrench (18).
2) PROBLEM - Rivet Mandrel is not gripped or Tool requires more operations than normal to set Rivet.
CAUSE 1 - Jaws (5) are dirty, worn or broken.
CORRECTION 1 - Clean or replace Jaws (5).
CAUSE 2 - Working Nosepiece (2) is loose.
CORRECTION 2 - Tighten Working Nosepiece (2) with service Wrench (18).
When operating, ALWAYS WEAR SAFFTY
GOGGLES TO PROTECT YOUR EYES.
Tool must clear off and eject the Spent
Mandrel from Tool before setting next Rivet.
Lorem ipsum
4
2017 GOEBEL
C
Industrial
GO-39
Heavy Duty
10
15 16 17 16 15
4 5 6 7
2 3
2

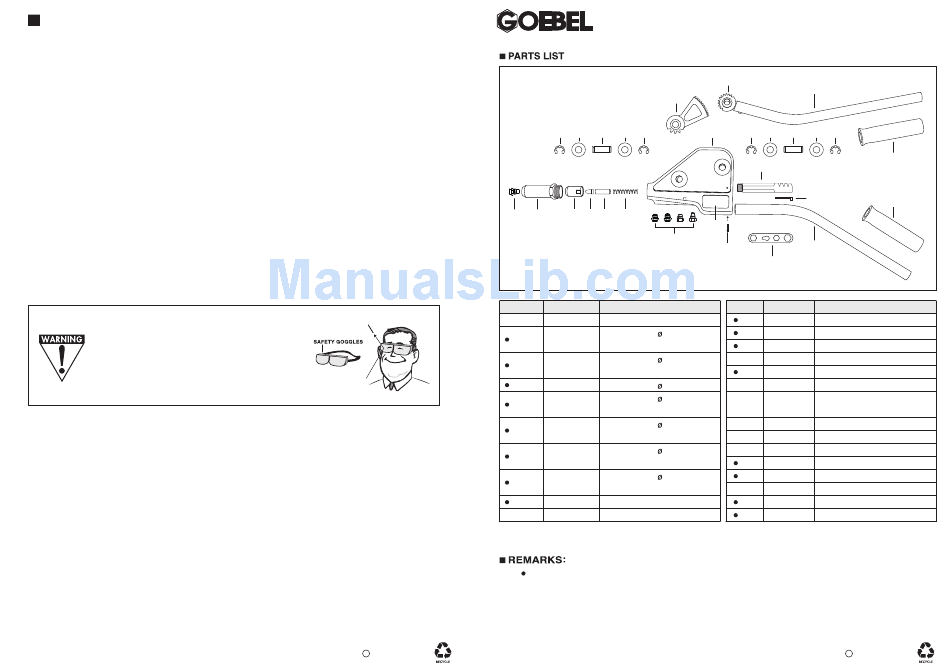

No. Part No. Part Name
1 GO-39-01 Aluminum Body
Nosepiece, for 4.0 mm or
2-40 GO-39-0240
5/32" Rivet
Nosepiece, for 4.8/5.0 mm or
2-48 GO-39-0248
3/16" Rivet
2-60 GO-39-0260 Nosepiece, for 6.0 mm
Nosepiece, for 6.4 mm or
2-64 GO-39-0264
1/4" Rivet
Nosepiece, for 4.8/5.0 mm or
2-48M GO-39-0248M
3/16" *Monobolt Rivet
Nosepiece, for 6.4 mm or
2-64M GO-39-0264M
1/4" *Monobolt Rivet
Nosepiece, for 6.4 mm or
2-64T GO-39-0264T
1/4" *T Rivet
3 GO-39-03 Head, Standard
4 GO-39-04 Jaw Case
1) means Wearing Parts or Possible Missing Parts.
2) GO-39 Rivet Tool can set Ø4.8 mm (3/16") & Ø6.4 mm (1/4") *Monobolt Rivets and Ø6.4 mm (1/4") *T Rivet.
3) GO-39 Rivet Tool may install various Nosepieces for different applications on request.
4) GO-39 Rivet Tool can be packed in a Plastic Carry Case or Steel Carry Case on request.
5) *Monobolt Rivet and *T Rivet are the registered trademark of Avdel.
Gear Type Hand Rivet Tool
Driving Gear
11
1
15 16 17 16 15
8
9
13
12
14
18
No. Part No. Part Name
5 GO-39-05 Jaws, 3-pc Type
6 GO-39-06 Jaw Pusher
7 GO-39-07 Jaw Pusher Spring
8 GO-39-08 Gear Rack
9 GO-39-09 Rack Bearing Plate
10 GO-39-10 Gear Sector
Driving Gear & Upper
11 GO-39-11
Handle Assembly
12 GO-39-12 Lower Handle
13 GO-39-13 Name Plate
14 GO-39-14 Drive Pin
15 GO-39-15 Snap Ring
16 GO-39-16 Pivot Pin Washer
17 GO-39-17 Pivot Pin
18 GO-39-18 Wrench
19 GO-39-19 Grip
