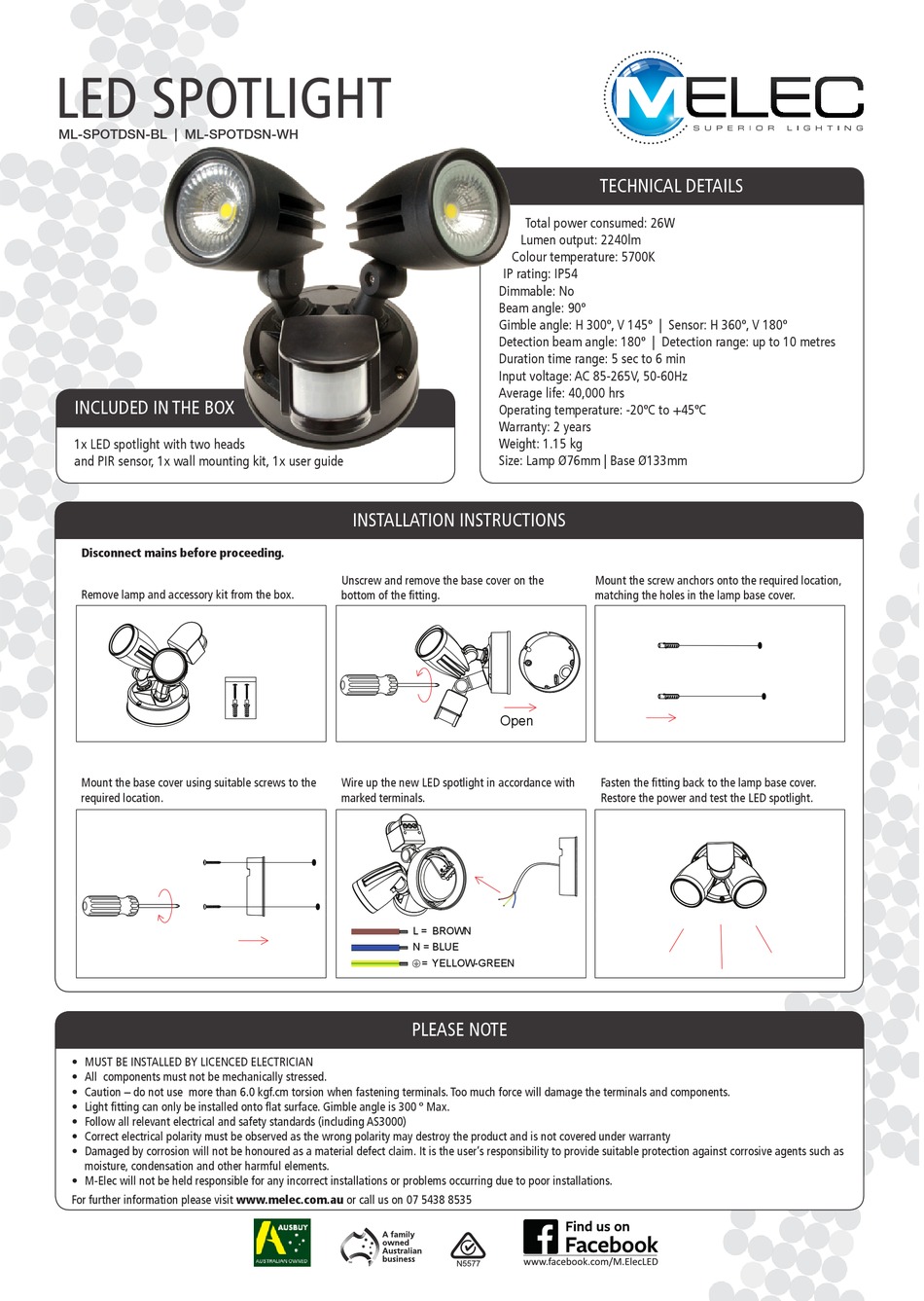

LED SPOTLIGHT
ML-SPOTDSN-BL | ML-SPOTDSN-WH
INCLUDED IN THE BOX
1x LED spotlight with two heads
and PIR sensor, 1x wall mounting kit, 1x user guide
Disconnect mains before proceeding.
Remove lamp and accessory kit from the box.
Mount the base cover using suitable screws to the
required location.
• MUST BE INSTALLED BY LICENCED ELECTRICIAN
• All components must not be mechanically stressed.
• Caution – do not use more than 6.0 kgf.cm torsion when fastening terminals. Too much force will damage the terminals and components.
• Light fitting can only be installed onto flat surface. Gimble angle is 300 º Max.
• Follow all relevant electrical and safety standards (including AS3000)
• Correct electrical polarity must be observed as the wrong polarity may destroy the product and is not covered under warranty
• Damaged by corrosion will not be honoured as a material defect claim. It is the user's responsibility to provide suitable protection against corrosive agents such as
moisture, condensation and other harmful elements.
• M-Elec will not be held responsible for any incorrect installations or problems occurring due to poor installations.
For further information please visit www.melec.com.au or call us on 07 5438 8535
Colour temperature: 5700K
IP rating: IP54
Dimmable: No
Beam angle: 90º
Gimble angle: H 300º, V 145º | Sensor: H 360º, V 180º
Detection beam angle: 180º | Detection range: up to 10 metres
Duration time range: 5 sec to 6 min
Input voltage: AC 85-265V, 50-60Hz
Average life: 40,000 hrs
Operating temperature: -20ºC to +45ºC
Warranty: 2 years
Weight: 1.15 kg
Size: Lamp Ø76mm | Base Ø133mm
INSTALLATION INSTRUCTIONS
Unscrew and remove the base cover on the
bottom of the fitting.
Open
Open
Wire up the new LED spotlight in accordance with
marked terminals.
L =
BROWN
L =
BROWN
N =
BLUE
N =
BLUE
YELLOW-GREEN
=
=
YELLOW-GREEN
PLEASE NOTE
TECHNICAL DETAILS
Total power consumed: 26W
Lumen output: 2240lm
Mount the screw anchors onto the required location,
matching the holes in the lamp base cover.
Fasten the fitting back to the lamp base cover.
Restore the power and test the LED spotlight.
Advertisement
Table of Contents
Related Manuals for Melec ML-SPOTDSN-BL
Summary of Contents for Melec ML-SPOTDSN-BL
- Page 1 • Damaged by corrosion will not be honoured as a material defect claim. It is the user’s responsibility to provide suitable protection against corrosive agents such as moisture, condensation and other harmful elements. • M-Elec will not be held responsible for any incorrect installations or problems occurring due to poor installations. For further information please visit www.melec.com.au or call us on 07 5438 8535...
- Page 2 LED SPOTLIGHT ML-SPOTDSN-BL | ML-SPOTDSN-WH PIR SENSOR SETUP MOON With POWER ON and installed by a licenced electrician: 1. Rotate “TIME” dial anti-clockwise to minimum 2. Rotate “SENS” dial clockwise to maximum 3. Rotate “LUX” dial clockwise to daylight(SUN) 4. Move around (walk past or wave hands and arms) and the sensor should turn on the lamps if you are close enough 5.
