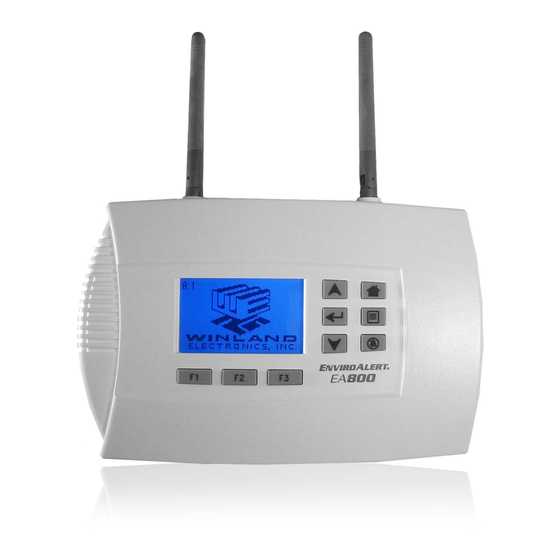

Winland Electronics EA800-IP Quick Start Manual
Hide thumbs
Also See for EA800-IP:
- Installation and owner's manual (60 pages) ,
- Troubleshooting manual (2 pages)
Table of Contents
Advertisement
Quick Links
EA800-
N
IP
ETWORK
J5
J6
Power
Aux Power
In
Out
1
2
3
4
Wired Sensor Inputs
Relay Outputs
1
2
3
4
5
6
7
8
NO COM NC NO COM NC NO COM NC NO COM NC NO COM NC NO COM NC
NO COM NC NO COM NC
J8
J9
J10
Q
S
UICK
Aux
NO COM NC
Tech Support 8:00am - 5:00pm Central Time
(800) 635-4269 • +1-507-625-7231 P
www.winland.com
G
TART
UIDE
Step 1
Wire sensors, outputs, and Ethernet
Step 2
Power device
Step 3
Configure through keypad
Note: If configuring online, ensure that the
NO SENSORS INSTALLED timer is cancelled after
powering the device. Wireless sensors must be
configured at the keypad.
Step 4
Create account at www.ea800ip.com
Add device using Serial Number and Key Code
shown on the Ethernet jack. Configure device
and sensors.
Note: Check the EA800-ip product page for
the most recent device firmware and update
instructions.
© 2012 Winland Electronics, Inc.
D-011-0170 Rev B (12/2012)
