Amourelle AP433RX2 Installation Instructions

Mains powered receiver & keyfob upgrade kit type AP433RX2

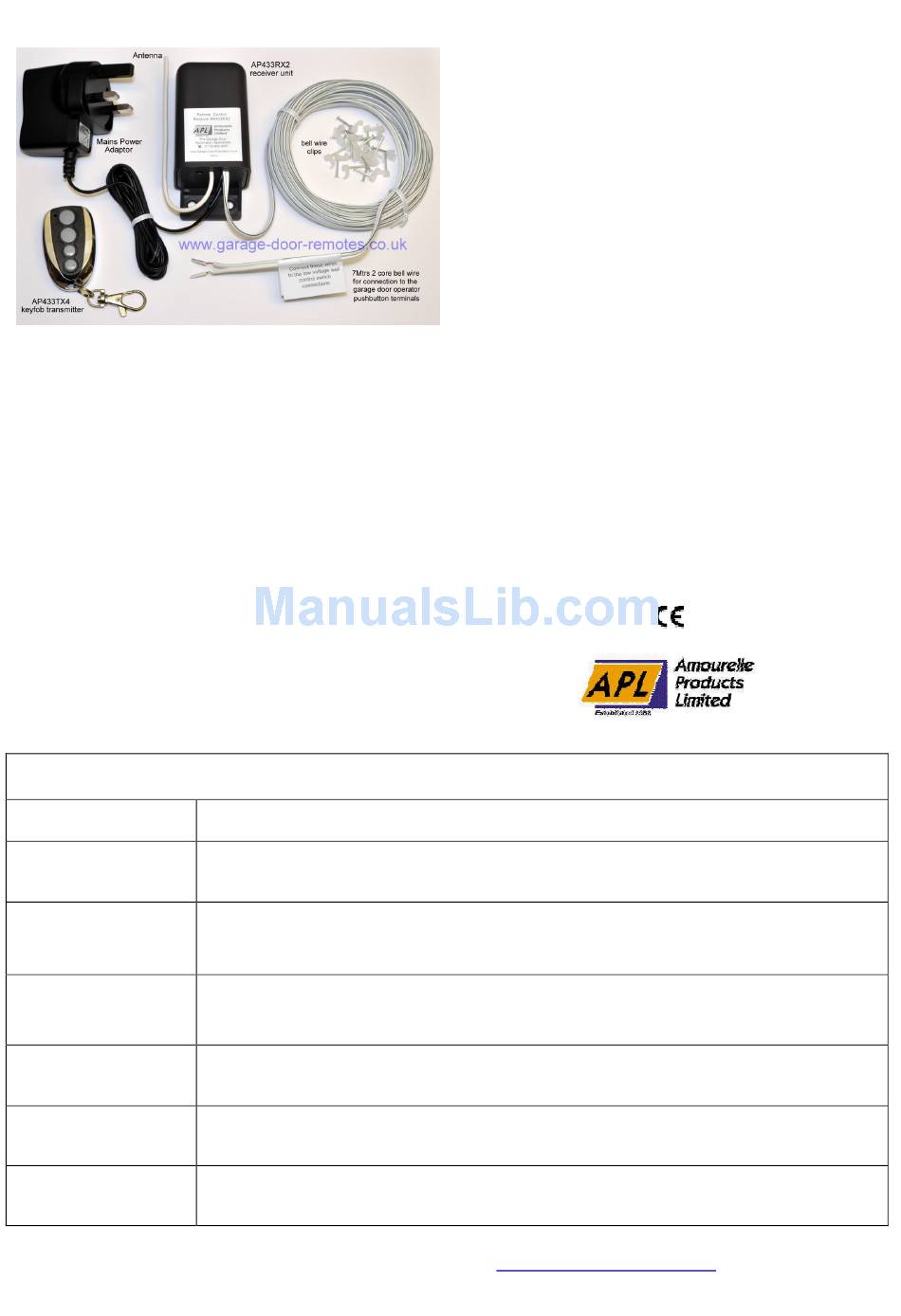

AP433RX2 receiver & AP433TX4 keyfob

Receiver Positioning

Position the AP433RX2 receiver unit within reach of a mains power
point and secure it using the self-adhesive pads supplied or by two
screws if preferred.

Connection to a Garage Door Operator

The two core flex should be connected to the low voltage wall control
switch impulse connections of your electric door or gate operator, this
may be at either the wall switch or the actual garage door/gate
operator, polarity is of no importance so the wires can be connected
either way round.

Individual Control of Two Doors

The AP433RX2 receiver can be used to control a second garage
door independently from a separate button on the keyfob transmitter.
The additional electric operator should be wired to terminals
marked 'CH2' inside the AP433RX2 using two core bell wire.

Typical Applications

Suitable for use with any remote controlled garage door or
gate operator with provision for an 'open/close' pushbutton
control switch (normally open impulse contacts)
Electrical connections for use with popular UK garage door operators
Make of door operator
Bosch models: Profi-Lift,
GTF-27L, c600c & c700c
Cardale Autoglide
canopy door operator
Chamberlain (including
AutoDor, Liftmaster,
MotorLift & Wickes brands)
Dura-Lift 4500
Hormann GTD50 & GTO 90
Merlin 230T & 430R
Further information can be found on our website:
(see table below)
Connect the two core flex from the AP433RX2 receiver unit to your door opener unit as follows:
Connect the pair of wires from the AP433RX2 receiver unit to the push-button terminals on the small grey 4 way
terminal block (if no push-button switch is installed these terminals will be empty) for further details email us
Connect the pair of wires from the AP433RX2 receiver to the low voltage wall mounted pushbutton switch
connections. On the Autoglide MK111 this will be the pale green two pin plug beside the black 3 pin mains input
plug on the underside of the motor housing. For further details & photo refer to our website.
The pair of wires from the AP433RX2 receiver unit should be connected to the low voltage wall pushbutton
switch connections labelled '1' (red) and '2' (white) on your Chamberlain garage door operator . For further
details & photo refer to our website.
Connect the pair of wires from the AP433RX2 receiver to terminals marked 'SK1' & 'SK2' inside the grey wall
control panel. (for further details & photo refer to our website)
Connect the pair of wires from the AP433RX2 receiver to the far right pair of terminals on the four- way terminal
block on the side of your GTD50 or GTD90 door operator. For further details & photo email us.
Connect the pair of wires from the AP433RX2 receiver to the low voltage wall mounted pushbutton switch
connections on your Merlin garage door operator. These terminals are normally identified as: 'GND' and 'PB'

Digital Code System

The keyfob transmitters communicate with the AP433RX2
receiver via a secure digital 433Mhz radio transmission.
The receiver can learn & memorise the unique security
code signature of up to 500 keyfob transmitters.

Transmitter Compatibility

The following 'fixed code' & 'rolling code' 433Mhz transmitter types
may be used with this AP433RX2 receiver: Amourelle AP433TX4,
Aprimatic TR series, BFT MITT0 series, CAME TOP43 series,
Fadini Jubi series, Gibidi DTR & AU0 series, Seav Motorline 433Mhz
series, Seip SKR series, Sentry SEN-H-T1 & SEN-H-T3

AP433RX2 Technical Specifications

Operating Frequency: 433.92MHz
Memory Capacity: 500 transmitters
Output via volt free relay contacts
Relay Rating: 1A @ 50V AC or DC
Physical Size: 95mm x 47mm x 43mm
Operating Range: 50 – 100 Mtrs
Power Requirement
(via mains adaptor supplied)
Operating Voltage Range: 100 - 240 Volts
via supplied 13A mains plug top AC adaptor
or optional 2 pin Euro type C plug top AC adaptor
(receiver unit may be powered direct from 12v or 24v DC if preferred)
One Year Warrantee
Range - 50 – 100 Mtrs
433Mhz MPT 1340 UK approved frequency
www.garage-door-remotes.co.uk
