Summary of Contents for Feichter Audio S2

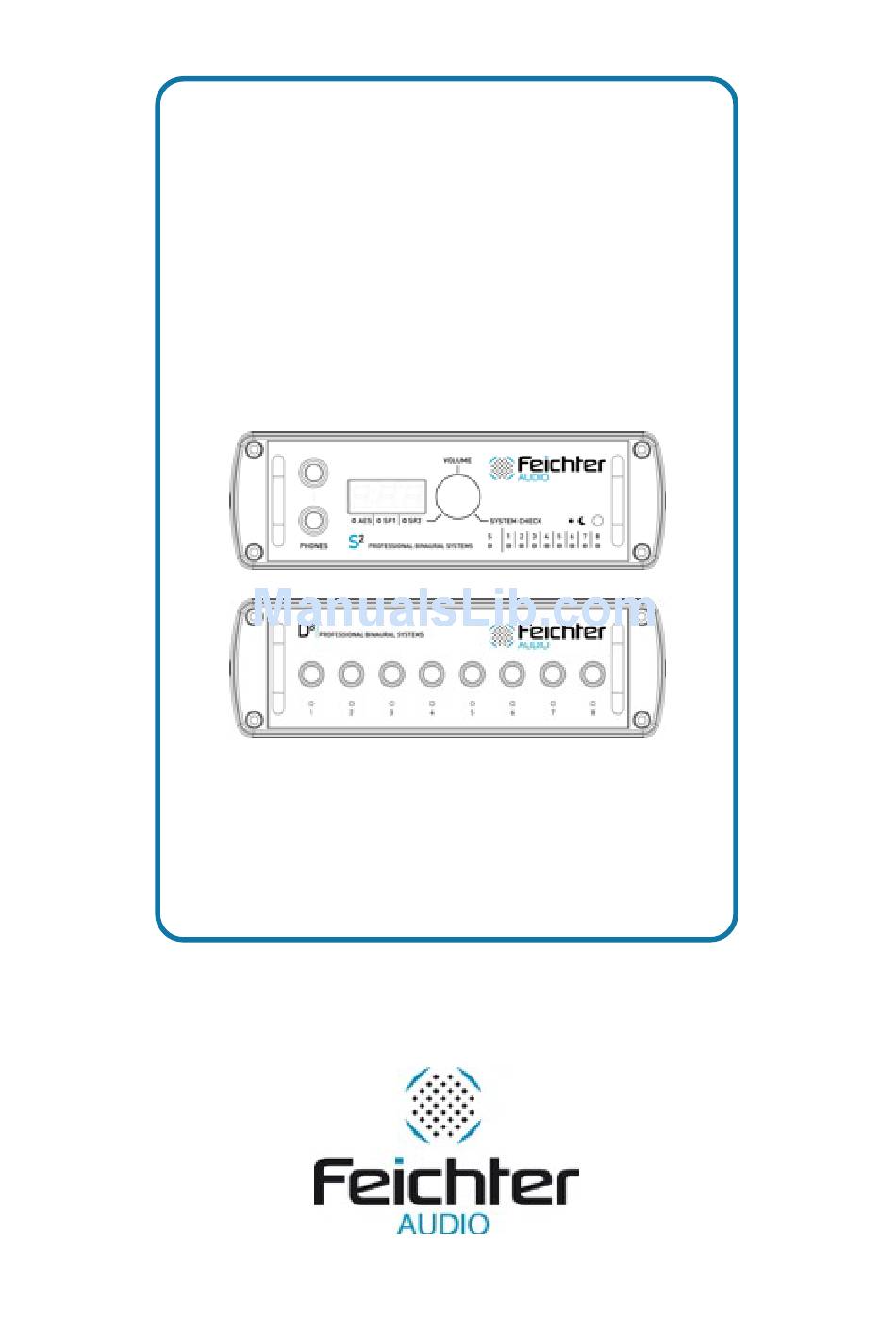

- Page 1 Binaural Professional Distribution System - technical information High quality 64 Headphones Distribution System Binaural Professional Systems User manual — [Revision 1.0 - June 2015] — 1 | 21...
- Page 2 Binaural Professional Distribution System - technical information 2 | 21...
-
Page 3: Table Of Contents
Safety instructions Technical information OUR COMMENCER Philosophy Concept Key features PERATION Overview Synoptic S2 front facade S2 rear facade D8 front facade D8 rear facade Guide ownership Additional features Advanced features / Exploitation Advanced features / Diagnosis PECIFICATIONS General specifications... -
Page 4: Safety Instructions
Binaural Professional Distribution System - technical information AFETY INSTRUCTIONS AND WARNING Read carefully this manual before using your Feichter Audio devices. Keep it for future reference. If you have an issue during the installation, please contact Feichter Audio assistance. AUDIO WARNING AUDIO WARNING This equipment can create high sound levels. -
Page 5: Technical Information
Paper manual (A5 format with each system) ➡ The electronic version of the manual and a binaural sound movie are available online on ➡ Feichter Audio For comments, suggestions and customer service, please contact us by e-mail: support@feichter-audio.com ’ ACKAGE... -
Page 6: Philosophy
- technical information HILOSOPHY Thank you for choosing our product. Feichter Audio systems are designed with care and enthusiasm and we hope it will meet yours expectations for many years. Feichter Electronics is associated with Pascal Rueff, pioneer of binaural sound, to design and manufacture in France professional audio equipments which will be particularly appropriated to high quality 3D audio. -
Page 7: Concept
Binaural Professional Distribution System - technical information IGH QUALITY FOR EACH HEADPHONE The Feichter Audio’s binaural distribution system is the first solution of immersive sound with no-compromised quality. Ultra-quiet and dynamic, the couple S , is the best option to offer an optimal 3D experience over headphone to listening groups. -
Page 8: Overview
Binaural Professional Distribution System - technical information VERVIEW There are two types of boxes: Power supply and diagnosis unit. Digital audio interface with two high-quality headphones outputs. Distribution unit with 8 analog high-quality headphones outputs. A single S box can pilot from one to eight D boxes : this means 64 headphones, on a ➡... -
Page 9: Synoptic
Binaural Professional Distribution System - technical information WIRING OVERVIEW 100-240VAC BATT 48VDC 9 | 21... -
Page 10: S2 Front Facade
Binaural Professional Distribution System - technical information FRONT FACE Two 1/4" headphones outputs Headphone Output & Lock Commands lock Saving settings Level attenuation display in dBFs Visualisation of selected source [AES, SP1, SP2] Volume/Source Display Diagnosis informations [SYS, End, Id] [---] when commands are locked Multi-purpose rotary control: Level control, audio source Multifunction Encoder... -
Page 11: S2 Rear Facade
Binaural Professional Distribution System - technical information REAR FACE Power Input Power supply inlet, 100-240VAC on PowerCon ® Fuse Time-delay fuse 2A AES Output AES3 digital output (by-passed digital audio input AES3 or SPDIF) AES Input AES3 stereo Input SPDIF 1 Input SPDIF stereo electric Input SPDIF 2 Input SPDIF stereo optical Input Battery Input Power supply input, 48VDC barrel jack (5,5mm-2,5mm, ⊕... -
Page 12: D8 Front Facade
Binaural Professional Distribution System - technical information FRONT FACE Headphones [1-8] Output 1/4" Analog Stereo Headphones Output Diagnosis [1-8] LEDs Indicate headphones failures 12 | 21... -
Page 13: D8 Rear Facade
Binaural Professional Distribution System - technical information REAR FACE Local attenuator [PAD] Adjustable level attenuator from 0 to -18dBFs steps of 2dBFs Network’s termination button, push it on the last box of the Terminaison 110 ohms network Network ‘state Indicate network addresses problems Network Input-output Network Input-output on EtherCon ®... -
Page 14: Guide Ownership
Binaural Professional Distribution System - technical information UIDE OWNERSHIP 1. System wiring Identify EtherCon ® connectors marked by ➡ ROFESSIONNAL INAURAL YSTEMS Connect the S box with a shielded Cat-5 cable to ➡ the first D Each EtherCon ® plug can be used as input or ➡... - Page 15 Binaural Professional Distribution System - technical information UIDE OWNERSHIP 4. Network termination On the last D box on the network, engage the ➡ button [ END OF LINE The yellow led switches on, network is ready ➡ 5. Connect the audio source Plug a digital audio source to one of the S digital ➡...
-
Page 16: Additional Features
Binaural Professional Distribution System - technical information DDITIONAL FEATURES Setting memory To save volume control and audio source adjustments, the stereo jack must be ➡ unplugged for an instant from the [Phones] socket : The LED [S] changes to pink for one second to confirm the saving When starting, the stored settings are automatically loaded ➡... -
Page 17: Advanced Features / Exploitation
Binaural Professional Distribution System - technical information DVANCED FEATURES XPLOITATION Information of EXPLOITATION MODE Color LEDs of S and D boxes display the system state in real time. LEDs [AES], [SP1] and [SP2] display the state of active audio source blue: the activated source is valid and delivered to ➡... -
Page 18: Advanced Features / Diagnosis
Binaural Professional Distribution System - technical information DVANCED FEATURES IAGNOSIS Diagnosis mode In "diagnosis mode", the S and D boxes color LEDs display the headphones conditions. This function is available for headphones with impedances from 16 to 300 ohms. For higher or smaller impedance, the measurement is no guaranteed. -
Page 19: Specifications
Binaural Professional Distribution System - technical information ENERAL SPECIFICATIONS Frequency response 20Hz-20KHz 0/-1dB 100dB re +4dBu, 22KHz BW, unity gain Distorsion 0,01500 % THD, 1kHz, 0dBFS, on load 32Ohms Temperature range +5 à +40°C Humidity < 75% no-condensing PECIFICATIONS OWER SUPPLY UNIT Sampling frequency from 28KHz to 108KHz automatic synchronization with valid frame... -
Page 20: D8 Specifications
Binaural Professional Distribution System - technical information PECIFICATION ISTRIBUTION UNIT Output level max 8dBu @ 0dBFs, per headphone 130mW with 32 ohms Power max 27mW with 250 ohms Address address 0 and 9 are not use Attenuation (PAD) -18dBFs steps of 2dBFs Weight 760 g aluminum box... -
Page 21: Quality Control
Laurent Feichter, 15th june 2015 FEICHTER AUDIO Feichter Audio design and produce systems respecting its social and ecological commitment. Designed and manufactured in France Our products are designed and manufactured in our local facilities in Lannion, Britanny. Ours subcontractors are small- and medium-sized businesses and industries: Electronic cards are manufactured in Lannion, the boxes and decorative panels are made in Alsace.
