Summary of Contents for Wuhan Xiantong Technology CO.,LTD MX1
- Page 1 MX1 Online Inkjet Printer User Manual Wuhan Xiantong Technology CO.,LTD www.meenjet.net Toll:4006000205...
-
Page 2: Table Of Contents
Contents Safety Using Tips......................... 3 Product Warranty......................... 3 Below situation can not be free maintenance,..............3 About MX1 printer........................3 Technical Specifications......................4 Printer Menu..........................6 Menu function introduction..................... 6 Printer Care and Maintenance....................10 Troubleshooting for Printer....................11 Ink Cartridge Installation......................12 Ink Cartridge Maintenance...................... -
Page 3: Safety Using Tips

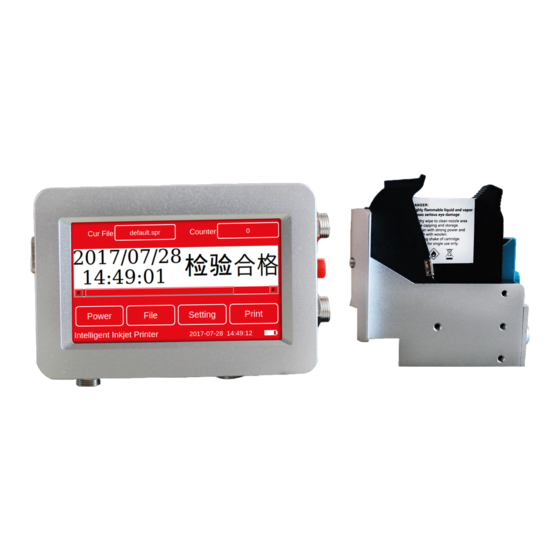

5. Using wrong power or unstable power, then make printer can not work. About MX1 printer Thank you for buying MX1 thermal inkjet printer. This machine is using HP TIJ2.5 inkjet technology and specially designed for packaging and printing. MX1 can print text, numbers, serial number, dates, pictures, variable data QR code and bar code, it is easy to operate. -
Page 4: Technical Specifications
MX1 can recognize water based and solvent ink automatically to match different ink parameters to ensure perfect printing effect. Technical Specifications MX1 Online inkjet printer parameters Product description Technical parameters Model Screen display 4.3 inch resistive touch screen Encoder 1024 pulse... - Page 5 Printer interface: 1. Power adapter interface 2. Machine switch button 3. Machine expansion interface 4. Interface for connecting external encoder 5. Interface for connecting printhead 6. RS232 www.meenjet.net Toll:4006000205...
-
Page 6: Printer Menu
Printer Menu Note: this machine can operate on resistive touch screen directly, no need connect computer. Menu function introduction Print: click print menu, then will display “printing” Power manage Close screen: click it to enter stand by mode, tap any position on the screen back to work status Close machine:click it, then turn off the power menu. - Page 7 Group file list:list all group files inside machine and U drive Local file:display all files which storage in machine U-drive file:display all files which storage in U-drive Confirm: confirm the files that need to be print Cancel:click cancel menu to back to last menu list Counter Counter 1:match with edit message serial Number1 Counter 2:match with edit message serial Number2...
- Page 8 (Edit single file) (File) Save: Save the current edited info as a file (Edit single file) (File) Save As: Save current info as another file name (Edit single file) (File) Exit: Exit the editing interface and return to the main page (Edit single file) (File) Delete: Click to delete a single file that stored in the machine (Edit Group File) New: Create a new group file (Edit Group File) Open: Open an existing group file and modify it...
- Page 9 and the ink was ejected. 0 is the minimum delay. (Print setting) (Print style) Print direction: The direction in which the font is printed, forward, reverse, forward, backward (Print Settings) (Print Style) Spray mode: Left Spray, Right Spray (Print Settings) (Print Style) Sync Multiplier: Check this box to enable the synchronizer.
-
Page 10: Printer Care And Maintenance
Printer Care and Maintenance You may fully charge the battery but do not overcharge the battery. Please don’t overcharge it for long time, and do not to use the battery in too cold or too hot condition. Make sure to use and drain off the battery and recharge it at least once a week. Make sure to check if the printer is loaded with ink cartridge and battery. -
Page 11: Troubleshooting For Printer
Troubleshooting for Printer Problem Cause Solutions Comment Click “printing” button to 1. Printing not started. start printing. Choose a file and click 2. No data for printing. “printing” button. 3. Printing delay value Check if the printing too big. delay value is normal. 4. -
Page 12: Ink Cartridge Installation
Ink Cartridge Installation 1. Please confirm cancel printing or turn off the printer, then start to install or remove ink cartridge. 2. If don’t use solvent ink cartridges over 20 minutes, please turn off printer and remove ink, then cover ink cartridge with cap. Do not install the ink cartridges by forcibly pressing it, which will cause the metal contact points on the bottom of the cartridge to be damaged and cause the cartridge to be damaged permanently. -
Page 13: Ink Cartridge Storage
1. Clean surface residuary ink with a moist, lint-free tissue. 2. After that, print a few lines of text or high-resolution graphics, using more nozzles to push out more ink. 3. Finally, check printed image. Repeat this process several times if print quality cannot be repaired. -
Page 14: Troubleshooting For Ink
Troubleshooting for Ink Sr.# Problem Problem Solutions Comments A. See Ink Cartridge Care and Maintenance section, If the problem is still 1. Nozzle blockage wipe and clean nozzle unsolved: or damage. plate with Non-woven; Check if there’s any The print has B.
