What’s Inside? 1x Aftermaster TV 1x HDMI Cable 1x USB Power Cable and Wall Plug NOTE: ONLY USE PROVIDED 2.1 AMP WALL PLUG FOR YOUR AFTERMASTER TV... - Page 3 Table of Contents What’s Inside Table Of Contents Welcome and Overview Device Connections Quick Reference Button Control Quick Reference 7-8) Television Connection Guide 9-10) Dual HDMI Input Connection Guide 11-12) External Speaker System Connection Guide Button Control Detailed Guide 14-15) Device and Reference Terms Troubleshooting Guide Safety Information 18-19) FCC Information and Warranty...
- Page 4 Congratulations on the purchase of your new Aftermaster TV Audio Remastering Device™. Aftermaster TV was developed by some of the biggest names in music and audio to greatly improve the quality of TV audio, without compromise. Our team has produced, engineered and mastered more hit music than any audio company in the world.
-
Page 5: Device Information

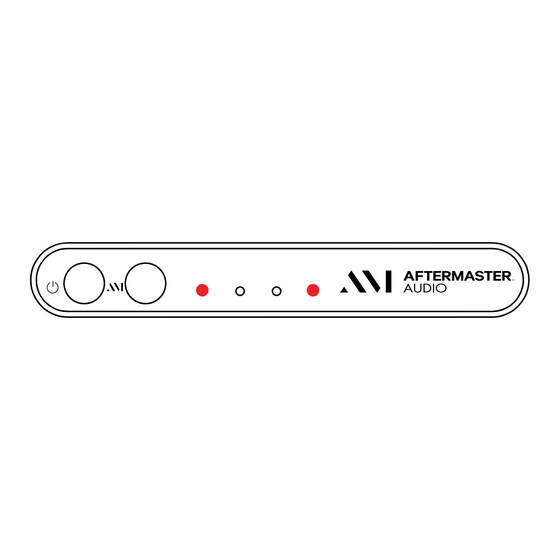

Device Information POWER AM / ON OFF INDICATION LIGHTS INPUT 2 INPUT 1 HDMI OUT HDMI IN 2 HDMI IN 1 USB B POWER CONNECT TO CONNECT TO CONNECT TO TELEVISION SECONDARY CABLE BOX POWER SOURCE (SOURCE) HDMI Connection CONNECT TO CONNECT TO CONNECT TO TELEVISION... -
Page 6: Button Control
Button Control The Aftermaster TV has two buttons for controlling port selection and audio processing. POWER (1) Button one is used to select the desired HDMI Input Port and the ON/OFF State AM (2) Button two turns the Aftermaster audio Processing... - Page 7 3) Connect the HDMI output port of the Aftermaster TV to your television with the supplied HDMI cable. 4) Press the Button labeled “AM” to engage and disengage Aftermaster Processing. 5) Allow 1-2 minutes for your Aftermaster TV to initialize. LIGHT 1 LIGHT 4...
- Page 8 Cable Box LISTENING DEVICE SOURCE Cable Box LISTENING DEVICE SOURCE...
- Page 9 Aftermaster TV to your television with the supplied cable. 4) To switch ports, between Port 1 and Port 2 press the power button, the red LED lights will indicate the selected port. 5) Allow 1-2 minutes for your Aftermaster TV to initialize. LIGHT 2 LIGHT 4...
- Page 10 2 Entertainment 2 Entertainment Consoles Consoles SOURCE SOURCE LISTENING DEVICES LISTENING DEVICES 2 Entertainment Consoles 2 Entertainment SOURCE LISTENING DEVICES Consoles SOURCE LISTENING DEVICES...
- Page 11 Television With Add-On Audio System 1) Connect the provided USB power supply to an available wall socket and then to the USB Power port of the Aftermaster TV. DO NOT USE TV OR CABLE BOX USB PORTS. They do not provide ample current.
- Page 12 Cable Box Amplifier SOURCE LISTENING DEVICE...
-
Page 13: Power Button
Button Control USB Power Connected Front INDICATION LIGHTS LISTENING DEVICE 3.5 MM HEADPHONE OUT AM/ON OFF SOURCE Power Button POWER 3.5 MM HEADPHONE IN Press One Power On Press Two HDMI Port 1 Press Three Power Off, or Select Audio Only Mode (Headphone Jack Must Be inserted) Indicator Light Codes HDMI Input Port 1 Selected and... - Page 14 Device Reference Guide POWER SOURCE 3.5 MM HEADPHONE IN AM/ON OFF LISTENING DEVICE 3.5 MM HEADPHONE OUT INDICATION LIGHTS HDMI OUT HDMI IN 2 HDMI IN 1 USB B POWER Reference Terms Power: Port selection button and power ON/OFF control. AM ON/OFF: Aftermaster ON/OFF selection button.
- Page 15 USB power input must be connected when using with an HDMI connection. Only use the provided 2.1 amp wall plug for your Aftermaster TV. DO NOT USE TV OR CABLE BOX USB PORTS. They do not provide ample current. HDMI IN 1:...
-
Page 16: Troubleshooting
> Please go to the settings menu on your television to ensure that your speaker setting has “TV Speakers” selected for sound output. > Press the Aftermaster TV power button 2 or 3 times until the number 1 and number 4 lights are on. - Page 17 It also has some of the most advanced electronic devices inside, so please avoid dropping or crushing the unit. Do not continue using the Aftermaster TV if it comes in contact with liquid. Don’t use an AM TV if any damage is visible.
- Page 18 FCC Regulatory Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 19 Aftermaster TV or from the date that you took delivery (if ordered on-line). What Aftermaster Will Do Aftermaster, Inc. will repair (parts and labor) or replace your Aftermaster TV, at our discretion, if it contains a defect in materials or workmanship.
- Page 20 Patented and Patent Pending, Copyright © 2016 Aftermaster, Inc., All Rights Reserved Aftermaster Audio 6671 Sunset Blvd, Suite 1520 Hollywood CA 90028 www.buyaftermaster.com...
