Summary of Contents for Uniforce USE-KTX 1200

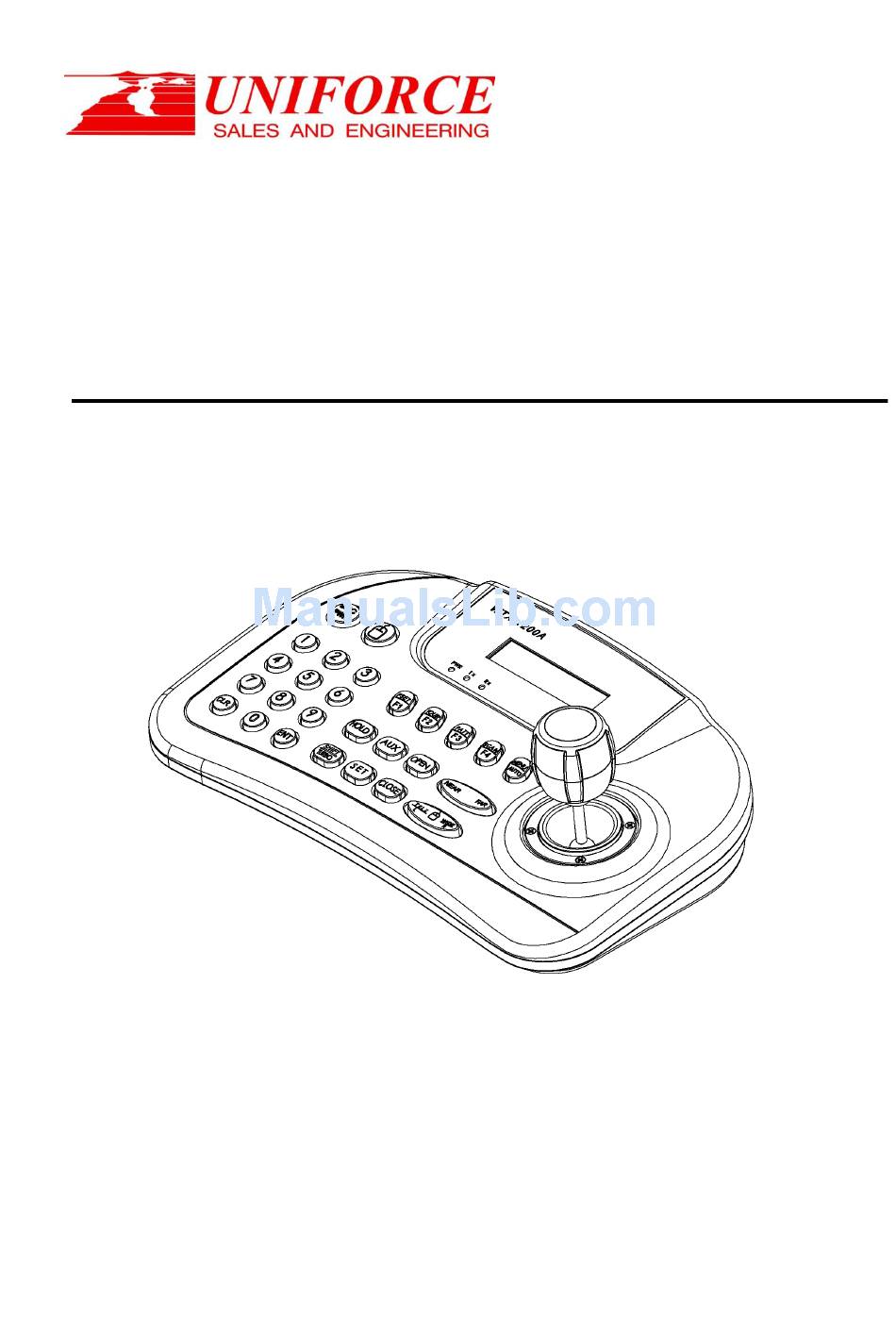

- Page 1 Instruction Manual USE -KTX 1200 Keyboard Please read this manual thoroughly before use, and keep it handy for future reference.
- Page 2 ISSUE 1 February , 200 7 LIMITATI ON OF LIABILITY THE INFORMATION IN THIS PUBLICATION IS BELIEVED TO BE ACCURATE IN ALL RESPECTS, HOWEVER, WE CANNOT ASSUME RESPONSIBILITY FOR ANY CONSEQUENCES RESULTING FROM THE USE THERE OF. THE INFORMATION CONTAINED HEREIN IS SUBJECT TO CHANGE WITHOUT NOTICE.
- Page 3 FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMECIAL ENVIRONMEN .
- Page 4 WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMEN CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to...
- Page 5 IMPORTANT SAFEGUARDS 1. READ AND RETAIN INSTRUCTIONS 10. LIGHTNING For protection of the equipment during a lightning Read the instruction manual before operating the storm or when it is left unattended and unused for equipment. Retain the manual fo future reference. long periods of time, unplug the unit from the wall outlet.
- Page 6 {This page intentionally left blank.}...
- Page 7 {This page intentionally left blank.} v i i i...
-
Page 8: Table Of Contents
TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ..................1 In This Manual ......................1 Remote Keyboard ....................1 Before Installation ....................2 Hardware Overview ..................... 3 System Configration and Wiring ................5 CHAPTER 2 SYSTEM INSTALLATION AND APPLICATIONS ..........6 System Installation PTZ Setup &... -
Page 9: Chapter 1 Introduction
CHAPTER 1 INTRODUCTION In This Manual This manual covers the operation of the USE-KTX1200keyboard. Overview USE-KTX1200Keyboard This remote keyboard is an accessory for PTZ dome cameras, etc It allows the users to control from 1 to 255 cameras. Features: Controls from 1 ~ 255 cameras. ... -
Page 10: Before Installation
Before Installation This keyboard system must be installed by qualified service or installation p ersonnel. Perform the following steps to install the keyboard system. A. Unpack all components. B. Place the keyboard in a convenient location. Note: Carefully and completely read the manuals for each piece of equipment before attempting to install and connect the equipment. -
Page 11: Hardware Overview
Hardware Overview This remote keyboard contains easy to use control keys on the front and Hardware Components simple input and output connectors on the back. Control The unit provides the primary operator interface. Most operations are one or two button presses. The following Table contains a description for each buttons on the Buttons keyboard. - Page 12 Hardware Overview, continued Continued on next page...
-
Page 13: System Configration And Wiring
System Configuration and Wiring , Basic Installation Use the Keyboard Configuration when only one keyboard is connected to the controlled units. Connect the RS-485 output port of remote keyboard to RS -485 input port of the first controlled unit using the terminal block Communication cable DC 12V VIDEO... -
Page 14: Chapter 2 System Installation And Applications
CHAPTER 2 SYSTEM INSTALLATION & TYPICAL APPLICATIONS System Installation Keyboard Installation Before you start connecting the keyboard equipment to your system, make sure the units to be controlled are completely installed and everything is working correctly You must set the communication protocol and unit number of the controlled units. The keyboards only method of communication is RS-485. - Page 15 MAIN SETUP Main Setup mode: (Press and hold #2 and SET for 2 to 3 seconds) Setup screen allows you to make changes to the unit In this mode, you can set up the model and communication method. Note: The baud rate must be the same between the controlled unit and the keyboard. In Main Setup, the default password is set to 0000.
-
Page 16: Easy Setting Functions
EASY SETTING FUNCTION (E.S.F) EASY SETTING FUNCTION (Number key + Function key) Number key + PSET/TOUR/PATT/SCAN/ E.S.F is current position data (pan, tilt, focus, zoom data) save or call of Dome memory Continued on next page... -
Page 17: Specifications
280(W) x 174(D) x 92(H), Net : 0.7 Kg Gross: 1.7 Kg USE-KTX1200KEYBOARD, ADAPTOR Packing include BATT 9V(Alkaline), USB CABLE, MANUAL, TERMINAL BLOCK(8p) Please contact Uniforce Sales & Engineering for more information. 42501 Albrae St, Ste 210 Fremont, CA 94538 (510)657-4000: Phone (510)657-4010: Fax...
