First Alert CO606 User Manual

UNDERSTANDING YOUR CO ALARM
USER'S MANUAL
WH T YOU SEE ND HE R DURING INST LL TION
120V PLUG-IN CARBON MONOXIDE ALARM WITH
UNDER NORM L CONDITIONS ( C POWER):
BATTERY BACK-UP AND SILENCE FEATURE
HORN: Silent
POWER/ L RM LIGHT: Shines continuously
WHEN YOU TEST THE CO L RM:
HORN: Sounds loudly - 4 beeps, pause, 4 beeps, pause
POWER/ L RM LIGHT: The LED flashes with the same pattern as
the horn.
WH T YOU SEE ND HE R UNDER DIFFERENT CONDITIONS
DURING
HORN: Silent
Model
POWER/ L RM LIGHT: Flashes once a minute.
CO606
~ WHEN THE ELECTRICITY COMES B CK ON FTER
CONFORMS TO
120V C ,
UL STD 2034 HORN: Silent
60 Hz, 0.09
POWER/ L RM LIGHT: Shines continuously.
IF B TTERY BECOMES LOW OR IS MISSING:
M08-0206-008 S 01/14 Printed in Mexico
HORN: Chirps once a minute
POWER/ L RM LIGHT: Shines continuously if C is present or
IMPORT NT!
flashes coincident with the horn-chirp if C is not present.
PLE SE RE D C REFULLY ND S VE.
IF THE CO L RM IS NOT OPER TING PROPERLY (M LFUNCTION
This user's manual contains important information about your Carbon
SIGN L):
Monoxide (CO) larm's operation. If you are installing this CO larm
HORN: 3 chirps every minute
for use by others, you must leave this manual—or a copy of it—with
POWER/ L RM LIGHT: Flashes three times with the horn.
the end user.
IF THE CO L RM H S RE CHED ITS END OF LIFE:
© 2014 BRK Brands, Inc. ll rights reserved. HORN: 5 chirps every minute
Distributed by BRK Brands, Inc.
POWER/ L RM LIGHT: 5 flashes approximately once a minute.
3901 Liberty Street Road, urora, IL 60504-8122
Consumer ffairs: (800) 323-9005 • www.firstalert.com
WH T YOU SEE ND HE R IF CO IS DETECTED
INTRODUCTION L RM LEVELS OF CO RE DETECTED:
HORN: Sounds loudly - 4 beeps, pause, 4 beeps, pause.
BASIC SAFETY INFORMATION
This sequence repeats for as long as the unit is in alarm.
POWER/ L RM LIGHT: The LED flashes with the same pattern as
the horn.
• Dangers, Warnings, and Cautions alert you to important
IF YOU SILENCE THE L RM:
operating instructions or to potentially hazardous situations.
Pay special attention to these items. HORN: Silent for about 4 minutes
POWER/ L RM LIGHT: Flashes rapidly
• THIS IS NOT SMOKE L RM! This CO larm is designed to
Note: fter 4 minutes, if CO levels drop below alarm levels, the unit
detect carbon monoxide from NY source of combustion. It is
will remain silent and return to normal operation.
NOT designed to detect smoke, fire, or any other gas.
If CO presence still indicates a potentially dangerous situation, the
• This CO larm is approved for use in single-family residences.
horn will sound again.
IF THE CO LEVELS RETURN TO NORM L:
• This CO larm will only indicate the presence of carbon
HORN: Silent
monoxide gas at the sensor. Carbon monoxide gas may be
POWER/ L RM LIGHT: Shines continuously
present in other areas.
• The Silence Feature is for your convenience only and will not INSTALLATION
correct a CO problem. lways check your home for a potential
problem after any alarm. Failure to do so can result in injury or
WHERE TO INSTALL CO ALARMS
death.
The National Fire Protection ssociation (NFP ) recommends that a CO
• This CO larm should receive continuous 120V C, 60 Hz, pure
larm should be centrally located outside of each separate sleeping
sine wave electrical power. (The battery is meant for emergency
area in the immediate vicinity of the bedrooms. For added protection,
back-up only). Do not use in an extension cord or outlet
install additional CO larms in each separate bedroom, and on every
controlled by a dimmer or switch. In order for the emergency
level of your home.
battery back-up to work, a working (fresh) battery must be
properly installed. If your bedroom hallway is longer than 40 feet (12 meters), install a CO
larm at BOTH ends of the hallway.
• NEVER ignore your Carbon Monoxide larm if it alarms. Refer
to "If Your CO larm Sounds" for more information. Failure to
do so can result in injury or death.
• Test the CO larm once a week. If the CO larm ever fails to
test correctly, have it replaced immediately! If the CO larm is
not working properly, it cannot alert you to a problem.
• This product is intended for use in ordinary indoor locations of
family living units. It is not designed to measure CO levels in
compliance with Occupational Safety and Health dministration
(OSH ) commercial or industrial standards. Individuals with
medical conditions that may make them more sensitive to
carbon monoxide may consider using warning devices which
provide audible and visual signals for carbon monoxide con-
centrations under 30 ppm. For additional information on carbon
monoxide and your medical condition contact your physician.
FCC Compliance
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful In a Single-level Home:
interference in a residential installation. This equipment generates, uses
• Install at least one CO larm near or within each separate sleeping
and can radiate radio frequency energy and, if not installed and used in
area.
accordance with the instructions, may cause harmful interference to
• For added protection, install an additional CO larm at least 20 feet
radio communications.
(6 meters) away from the furnace or fuel burning heat source.
However, there is no guarantee that the interference will not occur in a
In a Multi-level Home:
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning • Install at least one CO larm near or within each separate sleeping
the equipment off and on, the user is encouraged to try to correct the area.
interference by one or more of the following measures:
• For added protection, install at least one CO larm on each level of
the home. If you have a basement, install that CO larm at the top
• Reorient or relocate the receiving antenna.
of the basement stairs.
• Increase the separation between the equipment and receiver.
• For added protection, install an additional CO larm at least 20 feet
• Connect the equipment into an outlet on a circuit different from that
(6 meters) away from the furnace or fuel burning heat source.
of the receiver.
• Consult the dealer or an experienced radio or TV technician for help.
This unit should receive continuous electrical power. (The battery
Warning: Changes or modifications to the product, not expressly
is meant for emergency back-up only). Choose an outlet where it
approved by First lert / BRK Brands, Inc., could void the user's
cannot be accidentally unplugged or switched off by children. Keep
authority to operate the equipment.
small children away from the unit. Teach them not to play with it or
This device complies with Part 15 of the FCC Rules. Operation is
unplug it. Explain what the alarms mean.
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
WHERE CO ALARMS SHOULD NOT BE
received, including interference that may cause undesired operation.
INSTALLED
HOW YOUR CO ALARM WORKS
DO NOT LOCATE THIS CO ALARM:
GENERAL INFORMATION
• In garages, kitchens, furnace rooms, or in any extremely dusty,
dirty or greasy areas.
• Closer than 15 feet (4.6 meters) from a furnace or other fuel burning
Leave your CO larm plugged in year-round. CO problems can
heat source, or fuel burning appliances like a water heater.
occur any time during the year, and this larm can only alert you if
• Within 5 feet (1.5 meters) of any cooking appliance.
it is plugged in and receiving power.
• In extremely humid areas. This larm should be at least 10 feet
This CO larm is intended for use in a standard, unswitched 120V C
(3 meters) from a bath or shower, sauna, humidifier, vaporizer, dish-
wall outlet. It is not intended for use in extension cords, power strips, or
washer, laundry room, utility room or other source of high humidity.
outlets controlled by a switch or dimmer. These may not provide contin-
• In areas where temperature is colder than 40˚ F (4.4˚ C) or hotter
uous power to the unit. When fully powered, the unit samples the air
than 100˚ F (37.8˚ C). These areas include non-airconditioned crawl
and takes a new reading about every second. microchip inside the
spaces, unfinished attics, uninsulated or poorly insulated ceilings,
unit stores each reading, and remembers the levels of CO it has been
porches, and garages.
exposed to over time. The larm sounds when it has been exposed to
a "critical" level of CO (measured in parts per million or "ppm") within
• In turbulent air, like near ceiling fans, heat vents, air conditioners,
a specified time (measured in minutes). This CO larm features a fresh air returns, or open windows. Blowing air may prevent CO
permanently installed sensor, an indicator light, and an 85dB alarm horn. from reaching the sensors.
It also has a Silence Feature to temporarily quiet the alarm horn.
• In direct sunlight.
MALFUNCTION WARNING • In outlets covered by curtains or other obstruction.
This unit performs self-diagnostic tests. If the larm malfunctions, it
should be replaced immediately. See "IF THE CO L RM IS NOT
• This CO larm is designed for use inside a single-family home
OPER TING PROPERLY" for more information.
or apartment. It is not meant to be used in common lobbies,
hallways, or basements of multi-family buildings unless working

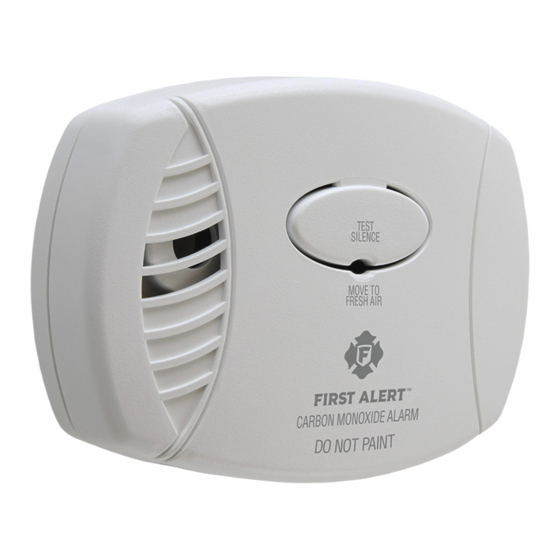

THE PARTS OF YOUR CO ALARM CO larms are also installed in each family living unit.
CO larms in common areas may not be heard from inside
individual family living units.
1 & 2
1 Open door (in back)
• This CO larm alone is not a suitable substitute for complete
2 Battery Compartment
detection systems in places which house many people, like hotels
(in back)
3
or dormitories, unless a CO larm is also placed in each unit.
3 Test/Silence Button
• DO NOT use this CO larm in warehouses, industrial or com-
4 POWER/ L RM Light
mercial buildings, special-purpose non-residential buildings, or
(Red)
airplanes. This CO larm is specifically designed for residential
use, and may not provide adequate protection in non-residential
5 (Behind Cover) larm
applications.
Horn: 85 dB audible
4
alarm for test, alarm,
and unit malfunction
warning.
5
1
HOW TO INSTALL YOUR CO ALARM
Read "Where To Install CO larms" before starting.
Before you start installation, find the pair of self-adhesive labels
included with this CO larm. On each label write in the phone number
of your emergency responder (like 911) and a qualified appliance tech-
nician. Place one label near the CO larm, and the other label in the
"fresh air" location you plan to go if the alarm sounds.
ACTIVATING THE BATTERY BACK-UP
ctivate the battery back-up by installing one 9 volt battery.
1. Push and lift the battery door down to open.
2. Install the 9 volt battery
(included) inside the
battery compartment as
POWER F ILURE (IN B TTERY B CK-UP):
indicated. Make sure the
"+" and "–" ends of each
battery are aligned properly.
POWER F ILURE:
3. Ensure battery is securely snapped into terminals by pushing in
direction of arrow in the diagram.
4. Close the battery door.
5. Push and hold the Test/Silence button on the cover until you hear
an acknowledge "chirp". The alarm horn will sound 4 beeps, a
pause, then 4 beeps. The L RM (RED) light will flash. The alarm
sequence should last 5-6 seconds. If it does not alarm, make sure
the battery is correctly installed, and test it again.
The battery is for back-up only and is not intended to power the
larm for an extended period of time in the absence of C.
DIRECT PLUG ALARM INTO AN OUTLET
This larm can be plugged directly into a wall outlet located close to
the floor.
1. Choose a standard UNSWITCHED 120V C outlet.
2. Plug larm in.
IF YOUR CO ALARM SOUNDS
ctuation of your CO larm indicates the presence of carbon
monoxide (CO) which can kill you. In other words, when your CO
larm sounds, you must not ignore it!
IF THE ALARM SIGNAL SOUNDS:
1. Operate the Test/Silence button.
2. Call your emergency services, fire department or 911. Write down
the number of your local emergency service here:
____________________________________________________________
3. Immediately move to fresh air—outdoors or by an open door or
window. Do a head count to check that all persons are accounted
for. Do not re-enter the premises, or move away from the open
door or window until the emergency services responder has
arrived, the premises have been aired out, and your CO larm
remains in its normal condition.
4. fter following steps 1-3, if your CO larm reactivates within a
24-hour period, repeat steps 1-3 and call a qualified appliance
technician to investigate for sources of CO from fuel-burning
equipment and appliances, and inspect for proper operation of this
equipment. If problems are identified during this inspection have the
equipment serviced immediately. Note any combustion equipment
not inspected by the technician, and consult the manufacturers'
instructions, or contact the manufacturers directly, for more
information about CO safety and this equipment. Make sure that
motor vehicles are not, and have not, been operating in an attached
garage or adjacent to the residence. Write down the number of a
qualified appliance technician here:
____________________________________________________________
" L RM-MOVE TO FRESH IR"
If you hear the alarm horn and the red light is flashing, move
everyone to a source of fresh air. DO NOT unplug the CO larm!
BEDROOM BEDROOM
BEDROOM
larms have various limitations. See "General Limitations of CO
larms" for details.
KITCHEN GARAGE
LIVING ROOM HALL
USING THE SILENCE FEATURES
BASEMENT
• The Silence Feature is for your convenience only and will
not correct a CO problem. lways check your home for a
potential problem after any alarm. Failure to do so can result
REQUIRED TO MEET NFPA RECOMMENDATIONS
in injury or death.
SUGGESTED AREAS FOR INSTALLING ADDITIONAL CO ALARMS
• NEVER remove the batteries from your CO larm to silence
the horn. Use the silence feature. Removing the batteries
removes your protection! See "If Your CO larm Sounds" for
details on responding to an alarm.
The Silence Feature is intended to temporarily silence your CO larm's
alarm horn while you correct the problem—it will not correct a CO prob-
lem. While the alarm is silenced it will continue to monitor the air for CO.
When CO reaches alarm levels the alarm will sound— repeating horn
pattern: 4 beeps, a pause, 4 beeps, etc. Press and hold the Test/Silence
button until the horn is silent. The initial Silence cycle will last approxi-
mately 4 minutes.
NOTE: fter initial 4-minute Silence cycle, the CO larm re-evaluates
present CO levels and responds accordingly. If CO levels remain poten-
tially dangerous—or start rising higher—the horn will start sounding again.
While the detector is silenced:
If the CO larm...
Is silent for only 4 minutes,
then starts sounding loudly—
4 beeps, pause,
4 beeps, pause
If the CO larm...
Remains silent after you
pressed the Test/Silence
button
SILENCING THE LOW BATTERY WARNING
Pressing the silence button can stop the low battery "chirp" for up to 8
hours; do not remove the battery or unplug the larm, unless changing
the battery. ctivation of low battery silence is acknowledged with a
"chirp". Once the low battery warning "chirp" silence feature is activated,
the unit continues to flash the red light once a minute for 8 hours. fter
8 hours, the low battery "chirp" will resume. Replace the batteries as
soon as possible.
If you cannot silence the low battery warning, replace the
batteries immediately.
SILENCING THE END OF LIFE SIGNAL
This silence feature can temporarily quiet the End of Life warning
"chirp" for up to 2 days. You can silence the End of Life warning "chirp"
by pressing the Test/Silence button. The horn will chirp, acknowledging
that the End of Life silence feature has been activated.
fter approximately 2 days, the End of Life "chirp" will resume.
2
TESTING AND MAINTENANCE
WEEKLY TESTING
Press the Test/Silence button on the larm cover until alarm sounds.
During testing, you will hear a loud alarm sequence – 4 beeps, pause,
4 beeps, pause.
The alarm sequence should last 5-6 seconds. If it does not alarm, make
sure the unit is fully plugged into an unswitched outlet. If the unit still
does not alarm, replace it immediately.
• If the larm ever fails to test properly, replace it immediately.
Products under warranty may be returned to the manufacturer for
replacement. See "Limited Warranty" at the end of this manual.
• DO NOT stand close to the larm when the horn is sounding.
Exposure at close range may be harmful to your hearing.
When testing, step away when horn starts sounding.
• NEVER use vehicle exhaust! Exhaust may cause permanent
damage and voids your warranty.
REGULAR MAINTENANCE
To keep the CO larm working properly:
• Test it every week as described in "Weekly Testing."
• Vacuum the CO larm cover at least once a month, using the soft
brush attachment. Never use water, cleaners, or solvents, since
they may damage the unit. Test the larm again after vacuuming.
• Replace the battery immediately when you hear the "Low Battery
Warning".
The Low (or Missing) Battery Warning: The horn will "chirp" once a
minute.
REPLACING THE BATTERY
Choosing a Replacement Battery:
This CO larm requires one standard 9 volt battery. The following
batteries are acceptable as replacements: Duracell MN1604, Energizer
522, and Ultralife U9VL-J-P. These replacement batteries are commonly
available at local retail stores.
• lways use the exact batteries specified by this User's Manual.
DO NOT use rechargeable batteries. Clean the battery contacts
and also those of the device prior to battery installation. Install
batteries correctly with regard to polarity (+ and -).
• Please dispose of or recycle used batteries properly, following
any local regulations. Consult your local waste management
authority or recycling organization to find an electronics
recycling facility in your area. DO NOT DISPOSE OF B TTERIES
IN FIRE. B TTERIES M Y EXPLODE OR LE K.
To Replace The Battery:
1. Open the battery compartment.
2. Use the thumb guide to remove the old battery.
3. Insert the new battery, making sure it snaps completely into the
battery compartment and cannot be shaken loose.
4. Close the battery compartment, then test the battery back-up by
pressing the Test/Silence button.
5. Plug the CO larm back into the outlet.
• Keep battery out of reach of children. In the event a battery
is swallowed, immediately contact your poison control center,
your physician, or the National Battery Ingestion hotline at
202-625-3333 as serious injury may occur.
• DO NOT spray cleaning chemicals or insect sprays directly on
or near the CO larm. DO NOT paint over the CO larm. Doing
so may cause permanent damage.
• Household cleaners, aerosol chemicals and other contaminants
can affect the sensor. When using any of these materials near the
CO larm, make sure the room is well ventilated.
• If your home is being fumigated, unplug the unit temporarily and
put it where it will not be exposed to chemicals or fumes. When
fumigation is complete and all traces of fumes clear, plug the unit
back in and retest it.
WHAT YOU NEED TO KNOW ABOUT CO
WHAT IS CO?
CO is an invisible, odorless, tasteless gas produced when fossil fuels
do not burn completely, or are exposed to heat (usually fire). Electrical
appliances typically do not produce CO.
These fuels include: Wood, coal, charcoal, oil, natural gas, gasoline,
kerosene, and propane.
Common appliances are often sources of CO. If they are not properly
maintained, are improperly ventilated, or malfunction, CO levels can rise
quickly. CO is a real danger now that homes are more energy efficient.
" ir-tight" homes with added insulation, sealed windows, and other
weatherproofing can "trap" CO inside.
SYMPTOMS OF CO POISONING
These symptoms are related to CO POISONING and should be
discussed with LL household members.
Mild Exposure:
Slight headache, nausea, vomiting, fatigue ("flu-like" symptoms).
Medium Exposure:
Throbbing headache, drowsiness, confusion, fast heart rate.
Extreme Exposure:
Convulsions, unconsciousness, heart and lung failure. Exposure to
carbon monoxide can cause brain damage, death.
Some individuals are more sensitive to CO than others, including
people with cardiac or respiratory problems, infants, unborn babies,
This means... pregnant mothers, or elderly people can be more quickly and
severely affected by CO. Members of sensitive populations should
CO levels are still potentially
consult their doctors for advice on taking additional precautions.
dangerous.
FINDING THE SOURCE OF CO AFTER AN ALARM
Carbon monoxide is an odorless, invisible gas, which often makes it
This means...
difficult to locate the source of CO after an alarm. These are a few of
CO levels are dropping. the factors that can make it difficult to locate sources of CO:
• House well ventilated before the investigator arrives.
• Problem caused by "backdrafting."
• Transient CO problem caused by special circumstances.
Because CO may dissipate by the time an investigator arrives, it may
be difficult to locate the source of CO. BRK Brands, Inc. shall not be
obligated to pay for any carbon monoxide investigation or service
call.
HOW CAN I PROTECT MY FAMILY?
CO larm is an excellent means of protection. It monitors the air and
sounds a loud alarm before carbon monoxide levels become threatening
for average, healthy adults.
CO larm is not a substitute for proper maintenance of home
appliances.
To help prevent CO problems and reduce the risk of CO poisoning:
• Clean chimneys and flues yearly. Keep them free of debris, leaves,
and nests for proper air flow. lso, have a professional check for
rust and corrosion, cracks, or separations. These conditions can
prevent proper air movement and cause backdrafting. Never "cap"
or cover a chimney in any way that would block air flow.
• Test and maintain all fuel-burning equipment annually. Many
local gas or oil companies and HV C companies offer appliance
inspections for a nominal fee.
• Make regular visual inspections of all fuel-burning appliances.
Check appliances for excessive rust and scaling. lso check the
flame on the burner and pilot lights. The flame should be blue.
yellow flame means fuel is not being burned completely and CO
may be present. Keep the blower door on the furnace closed. Use
vents or fans when they are available on all fuel-burning appliances.
Make sure appliances are vented to the outside. Do not grill or
barbecue indoors, or in garages or on screen porches.
• Check for exhaust backflow from CO sources. Check the draft
hood on an operating furnace for a backdraft. Look for cracks on
furnace heat exchangers.
• Check the house or garage on the other side of shared wall.
• Keep windows and doors open slightly. If you suspect that CO is
escaping into your home, open a window or a door. Opening
windows and doors can significantly decrease CO levels.
In addition, familiarize yourself with all enclosed materials. Read
this manual in its entirety, and make sure you understand what to
do if your CO larm sounds.
3 4
POTENTIAL SOURCES OF CO IN THE HOME
Fuel-burning appliances like: 1. Excessive spillage or reverse venting of fuel appliances caused by
portable heater, gas or wood outdoor conditions such as:
burning fireplace, gas kitchen
• Wind direction and/or velocity, including high, gusty winds. Heavy
range or cooktop, gas clothes
air in the vent pipes (cold/humid air with extended periods
dryer.
between cycles).
Damaged or insufficient
• Negative pressure differential resulting from the use of exhaust fans.
venting: corroded or discon-
• Several appliances running at the same time competing for limited
nected water heater vent pipe,
fresh air.
leaking chimney pipe or flue,
• Vent pipe connections vibrating loose from clothes dryers,
or cracked heat exchanger,
furnaces, or water heaters.
blocked or clogged chimney
opening. • Obstructions in or unconventional vent pipe designs which can
amplify the above situations.
Improper use of appliance/
device: operating a barbecue 2. Extended operation of unvented fuel burning devices (range, oven,
grill or vehicle in an enclosed fireplace).
area (like a garage or screened
3. Temperature inversions, which can trap exhaust close to the ground.
porch).
4. Car idling in an open or closed attached garage, or near a home.
Transient CO Problems: "transient" or on-again-off-again CO problems
These conditions are dangerous because they can trap exhaust in your
can be caused by outdoor conditions and other special circumstances.
home. Since these conditions can come and go, they are also hard to
The following conditions can result in transient CO situations: recreate during a CO investigation.
REGULATORY INFORMATION FOR CO ALARMS
WHAT LEVELS OF CO CAUSE AN ALARM? Why is this important? Because you need to be warned of a potential
CO problem while you can still react in time. In many reported cases of
Underwriters Laboratories Inc. Standard UL2034 requires residential CO
CO exposure, victims may be aware that they are not feeling well, but
larms to sound when exposed to levels of CO and exposure times as
become disoriented and can no longer react well enough to exit the
described below. CO levels are measured in parts per million (ppm) of
building or get help. lso, young children and pets may be the first
CO over time (in minutes).
affected. The average healthy adult might not feel any symptoms when
UL2034 Required larm Points*:
the CO larm sounds. However, people with cardiac or respiratory
• If the alarm is exposed to 400 ppm of CO, IT MUST L RM problems, infants, unborn babies, pregnant mothers, or elderly people
BETWEEN 4 and 15 MINUTES. can be more quickly and severely affected by CO. If you experience
even mild symptoms of CO poisoning, consult your doctor immediately!
• If the alarm is exposed to 150 ppm of CO, IT MUST L RM
BETWEEN 10 and 50 MINUTES.
Standards: Underwriters Laboratories Inc. Single and Multiple Station
• If the alarm is exposed to 70 ppm of CO, IT MUST L RM carbon monoxide alarms UL2034.
BETWEEN 60 and 240 MINUTES.
ccording to Underwriters Laboratories Inc. UL2034, Section 1-1.2:
* pproximately 10% COHb exposure at levels of 10% to 95% Relative "Carbon monoxide alarms covered by these requirements are intended
Humidity (RH). to respond to the presence of carbon monoxide from sources such as,
but not limited to, exhaust from internal-combustion engines, abnormal
The unit is designed not to alarm when exposed to a constant level
operation of fuel-fired appliances, and fireplaces. CO larms are
of 30 ppm for 30 days.
intended to alarm at carbon monoxide levels below those that could
cause a loss of ability to react to the dangers of Carbon Monoxide
CO larms are designed to alarm before there is an immediate life exposure." This CO larm monitors the air at the larm, and is designed
threat. Since you cannot see or smell CO, never assume it's not present. to alarm before CO levels become life threatening. This allows you
precious time to leave the house and correct the problem. This is only
• n exposure to 100 ppm of CO for 20 minutes may not affect
possible if larms are located, installed, and maintained as described in
average, healthy adults, but after 4 hours the same level may
this manual.
cause headaches.
• n exposure to 400 ppm of CO may cause headaches in average,
Gas Detection at Typical Temperature and Humidity Ranges: The
healthy adults after 35 minutes, but can cause death after 2 hours.
CO larm is not formulated to detect CO levels below 30 ppm typically.
UL tested for false alarm resistance to Methane (500 ppm), Butane (300
ppm), Heptane (500 ppm), Ethyl cetate (200 ppm), Isopropyl lcohol
This CO larm measures exposure to CO over time. It alarms if CO
(200 ppm) and Carbon Dioxide (5000 ppm). Values measure gas and
levels are extremely high in a short period of time, or if CO levels reach
vapor concentrations in parts per million.
a certain minimum over a long period of time. The CO larm generally
udible larm: 85 dB minimum at 10 feet (3 meters).
sounds an alarm before the onset of symptoms in average, healthy adults.
GENERAL LIMITATIONS OF CO ALARMS
This CO larm is intended for residential use. It is not intended for CO larms may not be heard. The alarm horn loudness meets or
use in industrial applications where Occupational Safety and Health exceeds current UL standards of 85 dB at 10 feet (3 meters). However,
dministration (OSH ) requirements for carbon monoxide detectors if the CO larm is installed outside the bedroom, it may not wake up a
must be met. sound sleeper or one who has recently used drugs or has been drinking
CO larms may not waken all individuals. If children or others do not alcoholic beverages. This is especially true if the door is closed or only
readily waken to the sound of the CO larm, or if there are infants or partly open. Even persons who are awake may not hear the alarm horn
if the sound is blocked by distance or closed doors. Noise from traffic,
family members with mobility limitations, make sure that someone is
stereo, radio, television, air conditioner, or other appliances may also
assigned to assist them in the event of an emergency.
prevent alert persons from hearing the alarm horn. This CO larm is not
CO larms will not work without power. This CO larm requires a con-
intended for people who are hearing impaired.
tinuous supply of C power. Plug into an unswitched 120V C outlet only.
CO larms are not a substitute for a smoke alarm. lthough fire is a
CO larms for Solar or Wind Energy users and battery backup
source of carbon monoxide, this CO larm does not sense smoke or
power systems: C powered CO larms should only be operated with
fire. This CO larm senses CO that may be escaping unnoticed from
true or pure sine wave inverters. Operating this CO larm with most
malfunctioning furnaces, appliances, or other sources. Early warning of
battery-powered UPS (uninterruptible power supply) products or square
fire requires the installation of smoke alarms.
wave or "quasi sine wave" inverters will damage the larm. If you are
not sure about your inverter or UPS type, please consult with the CO larms are not a substitute for life insurance. Though these CO
manufacturer to verify. larms warn against increasing CO levels, BRK Brands, Inc. does not
warrant or imply in any way that they will protect lives from CO poisoning.
This CO larm will not sense carbon monoxide that does not reach
Homeowners and renters must still insure their lives.
the sensor. This CO larm will only sense CO at the sensor. CO may be
present in other areas. Doors or other obstructions may affect the rate CO larms have a limited life. lthough the CO larm and all of its
at which CO reaches the CO larm. For this reason, if bedroom doors parts have passed many stringent tests and are designed to be as
are usually closed at night, we recommend you install a CO larm in reliable as possible, any of these parts could fail at any time. Therefore,
each bedroom and in the hallway between them. you must test your CO larm weekly.
CO larms may not sense CO on another level of the home. For CO larms are not foolproof. Like all other electronic devices, CO
example, a CO larm on the second level, near the bedrooms, may not larms have limitations. They can only detect CO that reaches their
sense CO in the basement. For this reason, one CO larm may not give sensors. They may not give early warning to rising CO levels if the CO
adequate warning. Complete coverage is recommended. Place CO
is coming from a remote part of the home, away from the CO larm.
larms on each level of the home.
TROUBLESHOOTING GUIDE
PROBLEM... THIS MEANS...
The horn "chirps" once every minute. Low battery warning.
Red light is OFF. Unit will not alarm when you CO larm may not be plugged all the way in,
press the Test/Silence button. is not receiving power, and the battery is missing,
dead, or not properly installed.
The light flashes (RED) and the horn sounds 3 M LFUNCTION SIGN L. CO larm needs to be
"chirps" every minute. replaced.
The light flashes (RED) and the horn sounds 5 END OF LIFE SIGN L. CO larm needs to be
"chirps" every minute. replaced.
CO larm goes back into alarm 4 minutes after CO levels indicate a potentially dangerous
you press the Test/Silence button. situation.
CO larm sounds frequently even though no high The CO larm may be improperly located.
levels of CO are revealed in an investigation. Refer to "Where to Install CO larms."
*For a list of acceptable replacement batteries, see "Page 4: Regular Maintenance."
If you have any questions that cannot be answered by reading this manual, call Consumer ffairs at 1-800-323-9005.
LIMITED WARRANTY
BRK Brands, Inc. ("BRK") the maker of First lert ® brand products, warrants that for a period of 7 years from the date of purchase, this product will be free
from defects in material and workmanship. BRK, at its option, will repair or replace this product or any component of the product found to be defective during
the warranty period. Replacement will be made with a new or remanufactured product or component. If the product is no longer available, replacement may
be made with a similar product of equal or greater value This is your exclusive warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable. Keep the original sales receipt. Proof of
purchase is required to obtain warranty performance. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify
or any way change the terms and conditions of this warranty.
This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper
voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than BRK or an authorized service center.
Further, the warranty does not cover acts of God, such as fire, flood, hurricanes and tornadoes or any batteries that are included with this unit.
BRK shall not be liable for any incidental or consequential damages caused by the breach of any express or implied warranty. Except to the extent prohibited
by applicable law, any implied warranty of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty.
Some states, provinces, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied
warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights
that vary from state to state, or province to province.
How to Obtain Warranty Service
Service: If service is required, do not return the product to your retailer. In order to obtain warranty service, contact the Consumer ffairs Division at
1-800-323-9005, 7:30 M to 5:00 PM, Central Standard Time, Monday through Friday. To assist in serving you, please have the model number and date
of purchase available when calling. For Warranty Service return to: BRK Brands, Inc., 25 Spur Drive, El Paso, TX 79906
Battery: BRK Brands, Inc. make no warranty, express or implied, written or oral, including that of merchantability or fitness for any particular purpose with
respect to battery.
For your records, please record: Replace alarm 7 years after installation. Please write the date in
the space provided: ____________/___________Month/Year
Date Purchased: ___________Where Purchased: ___________________ The alarm will also provide an audible End-of-Life Signal approxi-
mately 7 years after installation to remind you to replace the unit.
The End-of-Life Signal can be silenced for up to 2 days. Do not unplug
Date Installed: _____________/_____________Month/Year
the alarm or remove the batteries until you get replacement.
First lert ® is a registered trademark of the First lert Trust.
5
YOU SHOULD...
Install 1 new 9 volt battery*.
Gently push unit all the way into outlet. Make
sure it is not plugged into an outlet controlled
by a switch.
Make sure unit is plugged in securely.
CO larms under warranty should be returned to
manufacturer for replacement. See "Limited
Warranty" for details.
Immediately replace the CO larm.
IF YOU RE FEELING SYMPTOMS OF CO
POISONING, EV CU TE your home and call 911 or
the Fire Department. If not, press the Test/Silence
button again and keep ventilating your home.
Relocate your larm. If frequent alarms continue,
have home rechecked for potential CO problems.
You may be experiencing an intermittent CO
problem.
Printed in Mexico M08-0206-008 S 01/14
6
