Summary of Contents for Hidrotermal HIDRO-NPN300

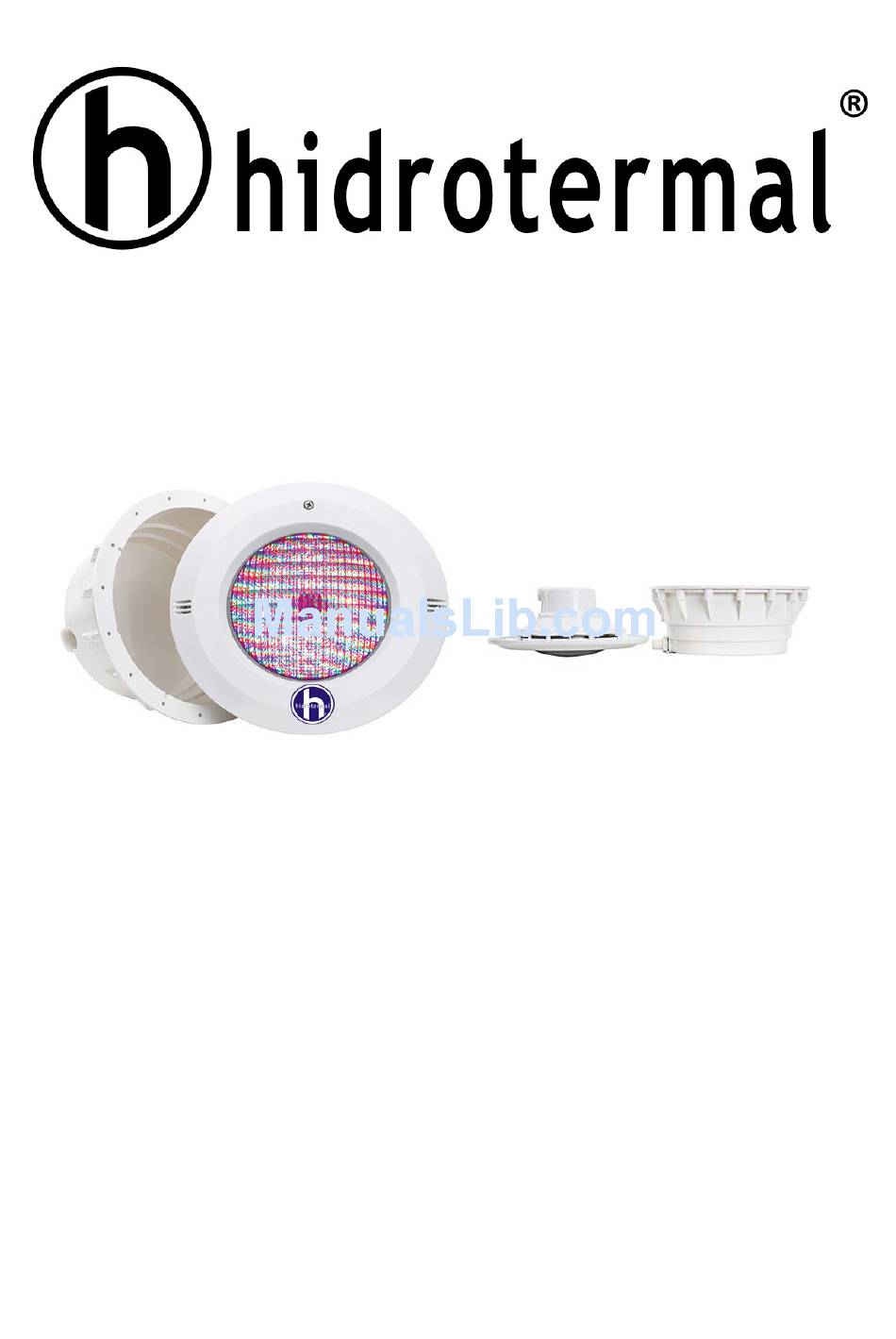

- Page 1 UNDERWATER SWIMMING POOL LIGHT WITH NICHE PAR56 BULB HIDRO-NPN300 USER MANUAL Please read this operation manual carefully and keep it for future reference.
- Page 2 WARNING 1. ATTENTION INSTALLER: This manual contains important information about the installation, operation and this product's safe use. This information should be given to the owner or operator of this equipment. Please read this operation manual carefully and keep it for future reference.
- Page 3 1. BEFORE INSTALLING NOTE: The electrician must complete preparatory steps for local electrical system before any parts of this underwater light is installed. (See Figure 1) 1. Ensure that the pool meets the requirements of the current local electrical system codes and ordinances.
- Page 4 2. UNDERWATER LIGHT'S INSTALLATION Respect all regulations in effect for preventing accidents. 2.1 INSTALLING THE LIGHT NICHE 1. Prepare enough room for the niche to be fixed into the wall of the swimming pool. 2. There are two conduits on the back of the niche. Choose one conduit which is the most convenient to your wiring design ans seal the other one with the waterproof plug provided.
- Page 5 2.2 INSTALLTING THE LIGHT FIXTURE WARNING: Use only the special pilot screw provided with this underwater light. This screw mounts and electrically grounds the mounting parts of the light. Or choose qualified 304# or better stainless steel pilot screw. Failure to do so may cause serious corrosion of the pilot screw and the light.
- Page 6 ②REPALCING A FLAT LED BULB Figure 11 Figure 12 IMPORTANT: Check the waterproofing performance of this underwater light every time the light fixture is disassembled. Replace the old waterproof fittings when necessary. 3. OPERATION NOTES NOTE: The pool electrical system should be verified at least once every month with a pool and spa electrical qualification test kit.
- Page 7 4.2 RGB LIGHTS IMPORTANT: This section only applies to the RGB lights with 12 volt AC input. See the table below for the color mode sequence. BLUE: static blue RED: static red GREEN: static green RB: static purple BG: static cyan-blue RG: static yellow RGB: static white RGB change gradually to G/R/B...
