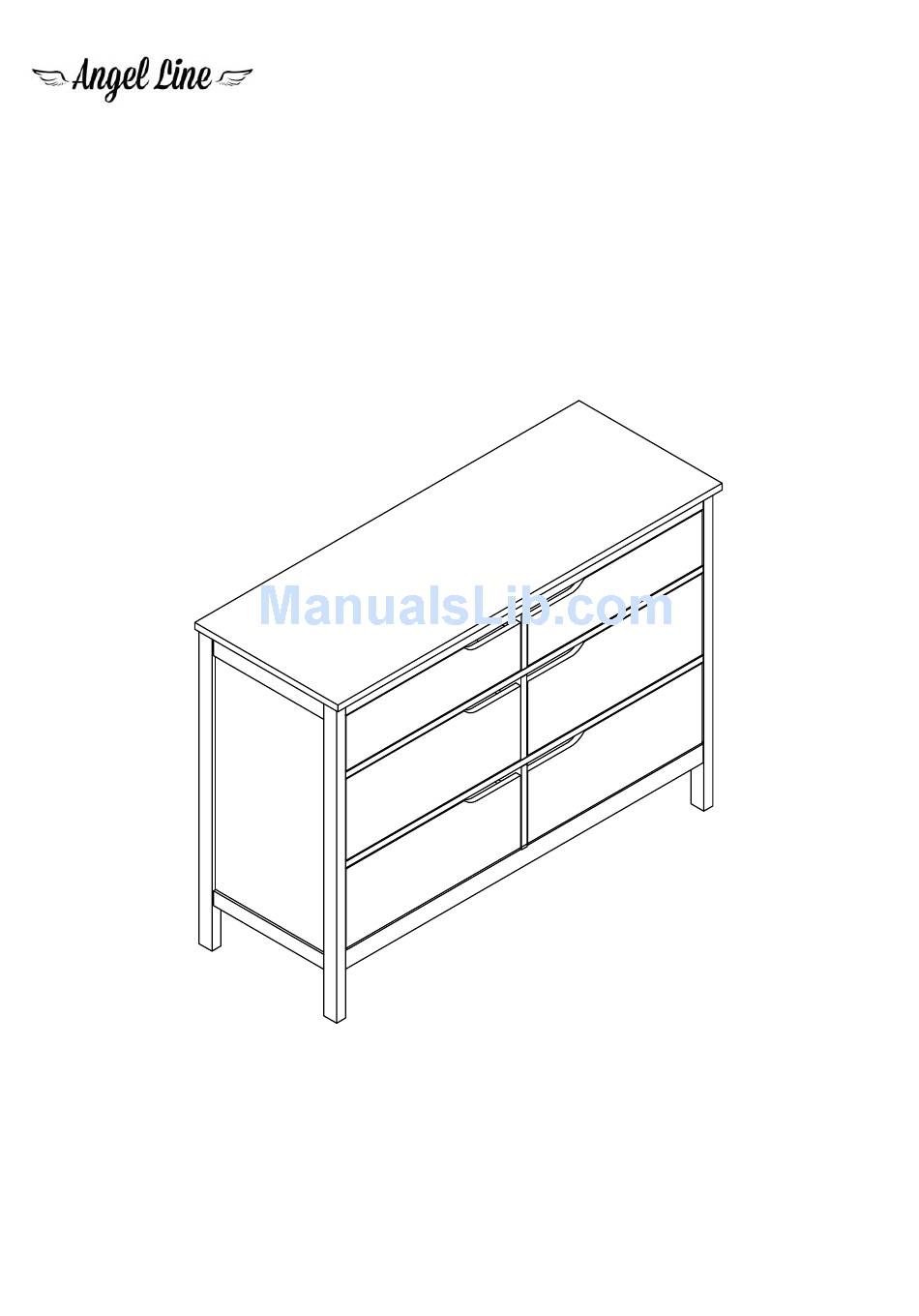

Madison 6 Drawer Double Dresser
Instruction Manual
Read all instructions before assembly and use.
KEEP INSTRUCTIONS FOR FUTURE USE.
ADULT ASSEMBLY REQUIRED.
Small parts may present choking hazard prior to assembly.
Keep out of reach of children until assembly is complete.
Made in Vietnam
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Angel Line Madison 6 Drawer Double Dresser
Summary of Contents for Angel Line Madison 6 Drawer Double Dresser
- Page 1 Madison 6 Drawer Double Dresser Instruction Manual Read all instructions before assembly and use. KEEP INSTRUCTIONS FOR FUTURE USE. ADULT ASSEMBLY REQUIRED. Small parts may present choking hazard prior to assembly. Keep out of reach of children until assembly is complete.
- Page 2 WARNING Serious or fatal crushing injury can occur from furniture tip-over. To help prevent tip-over: - Install tip-over retrain provided. - Place heaviest items on the lowest drawers. - Unless specifically designed to accommodate, do not set Tv’s or other heavy objects on the top of this product.
- Page 4 BACK PANEL BOTTOM CROSS RAIL TOP CROSS RAIL MIDDLE PANEL MIDDLE CROSS RIAL RIGHT SIDE PANEL LEFT SIDE PANEL TOP PANEL SUPPORT POST TOP BACK PANEL UPPER & LEFT DRAWER FRONT UPPER & RIGHT DRAWER FRONTL UPPER LEFT DRAWER SDIE DRAWER BOTTOM PANEL UPPER RIGHT DRWER SIDE...
- Page 5 LOWER & LEFT DRAWER FRONT UPPER DRAWER BACK LOWER & RIGHT DRAWER FRONT LOWER & DRAWER LEFT SIDE LOWER & DRAWER RIGHT SIDE LOWER DRAWER BOTTOM...
- Page 6 - Thread 6 CAM BOLTs (1) to middle of BACK PANEL (A), TOP CROSS RAIL (B), BOTTOM CORSS RAIL (C), and MIDDLE CROSS RAIL (D).
- Page 7 - Insert 2 CAM LOCKS (3) to MIDDLE PANEL (E). (make sure cam arrow is pointing to short edge) - insert 3 WOOD DOWELS (2) into TOP CROSS RIAL (B), AND BACK PANEL (E). - Attach BACK PANEL (A) AND TOP CROSS RIAL (B) to MIDDLE PANEL (E) BY TURNING CAM CLOCKWISE.
- Page 8 - Insert 4 CAM LOCKS( 3) to MIDDLE PANEL (E). - Insert 2 WOOD DOWELS (2) - Attach 2 TOP CROSS RAILSES (B), 2 MIDDLE CROSS RAILS (D), and BOTTOM RAIL (C) by turning the cmas clockwise.
- Page 9 - Thread 20 CAM BOLTS (1) to LEFT PANEL (F), RIGHT PANEL (G), and TOP PANEL (I)
- Page 10 - Insert 14 CAM LOCKS (3) to 2 TOP CROSS RAILS (B), 2 MIDDLE CROSS RAILS (D), and BOTTOM CROSS RAIL (C). - Insert 14 WOOD DOWELS (2) into ends of 2 TOP CORSS RIALS (B), 2 MIDDLE CROSS RIALS (D), and BOTTOM CROSS RAIL (C).
- Page 11 - Attach SUPPORT LEG (H) to MIDDLE PANEL (E) with 1 BOLT (4) and 2 WOOD DOWELS (2) as shown. (Use ALLEN KEY (5) to tighten the bolt.) NOTE - The SUPPORT LEG (H) and SIDE PANELS (G & F) are equipped with adjustable levelers.
- Page 12 - Insert 6 CAM LACKS (3) and 6 WOOD DOWELS (2) in LEFT SIDE PANEL (G), RIGHT SIDE PANEL (F), MIDDLE PANEL (E). - Carefully position the TOP PANEL (I) over assembly and lock into place using the locatin WOOD DOWELS (2). - Attach TOP PANEL (I) to LEFT PANEL (G), RIGHT SIDE PANEL (F), and MIDDLE PANEL (E) by turning the cams clockwise.
- Page 13 - Attach TOP BACK PANEL (J) TO BACK OF CHST JUSING 16 ROUND HEAD SCRES (7).
- Page 14 - Position and attach UPPER LEFT DRAWER SIDE (M), - Carefully slide DRAWER BOTTOM (0) and UPPER RIGHT DRAWER SIDE (N) by using 4 OF 1” into grooves of DRAWER SIDES and (25mm) SCREWS (6) provided to UPPER LEFT DRAWER FRONT. DRAWER FRONT (K).
- Page 15 - Position and attach LOWER LEFT DRAWER SIDE (S), - Carefully slide DRAWER BOTTOM (0) and LOWER RIGHT DRAWER SIDE (T) by using 4 OF 1” into grooves of DRAWER SIDES and (25mm) SCREWS (6) provided to LOWER LEFT DRAWER FRONT. DRAWER FRONT (Q).
- Page 16 - Assemble the drawers tothe case as per below con guration. - Holding the drawer on a downward sloping angle, rest of drawer sides to the correspoinding drawer runners pre-assembled - Carefully push the drawer forward makin sure the rollers are. inside the track. - Assemble the rest of the drawers.
- Page 17 1-844-441-1112...
