Controls layout A2103
Safety label
Laser Models - Caution
Note: Avoid looking directly into the Laser light source as temporary
dazzling may occur.
Pin Diagram
Pin 1
+v
Pin 2
Up button
Pin 3
-v
Pin 4
Pulse output
Explanatory label
Operating Instructions
Digital Optical Tachometer
Pulse output tachometer
©
Compact Instruments Ltd 2017
www.compactinstruments.co.uk
Model A2103/LSR/001
Display
- Inverting LCD Vertical 5 digit display
Display functions
- 180 deg. Inverting
On target indicator
- Yes
Low Battery indicator
- Yes
Function icons
- Comprehensive selection of ranges shown in display
Pulse output
- Output pulse train nominally 5V pk, TTL compatible
Remotely powered
- Yes, using Advent remote unit
Controls - 3 push-buttons
On/off normal mode
- Dual action rocker type touch push-button (UP ARROW)
On/off inverted mode
- As above but for inverted operation
Programme control
- Selects programme mode in conjunction with Up/Down switches
Optical system -
Optical range
- 50mm - 2000mm
Optical angle
- +/- 80 Deg.
Light source
- Red Spot Laser, Class II
Advent
A2103/LSR/001
Doc no: 13797
(DOWN ARROW)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Compact Instruments A2103/LSR/001
Summary of Contents for Compact Instruments A2103/LSR/001
-
Page 1: Operating Instructions

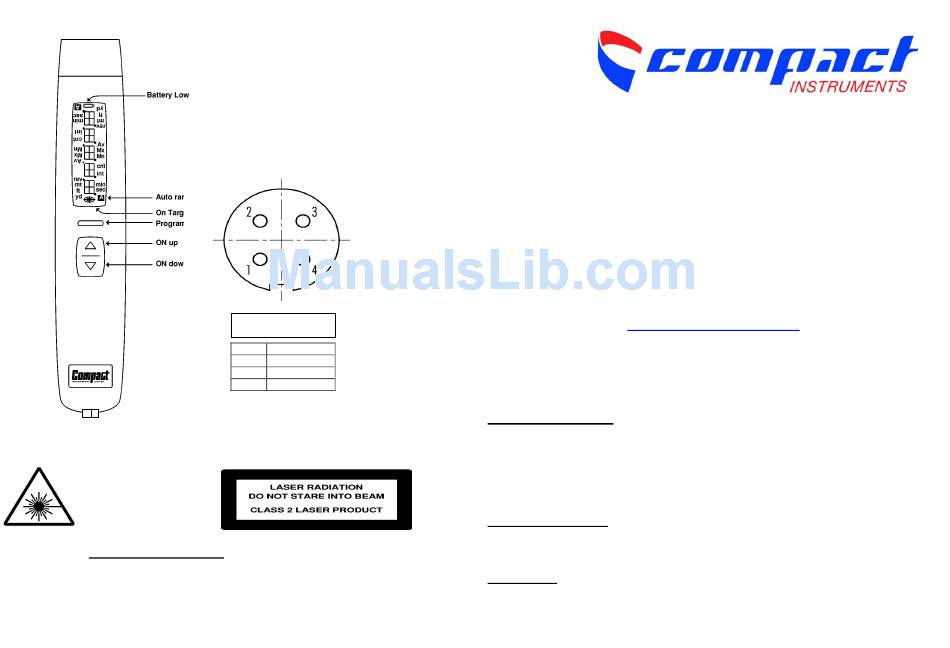

Operating Instructions Digital Optical Tachometer Advent Pulse output tachometer A2103/LSR/001 © Compact Instruments Ltd 2017 www.compactinstruments.co.uk Pin Diagram Doc no: 13797 Pin 1 Pin 2 Up button Pin 3 Pin 4 Pulse output Model A2103/LSR/001 Display - Inverting LCD Vertical 5 digit display... - Page 2 Fit contact adapter into the tachometer and ensure a good click fit connection. 12.1 The A2103/LSR/001 can be connected to external measurement equipment with a TTL 3.2. Start machine and make clean contact with the recess in shaft end (wheel can be removed).
