Boyo VTB-100 Operation Manuals

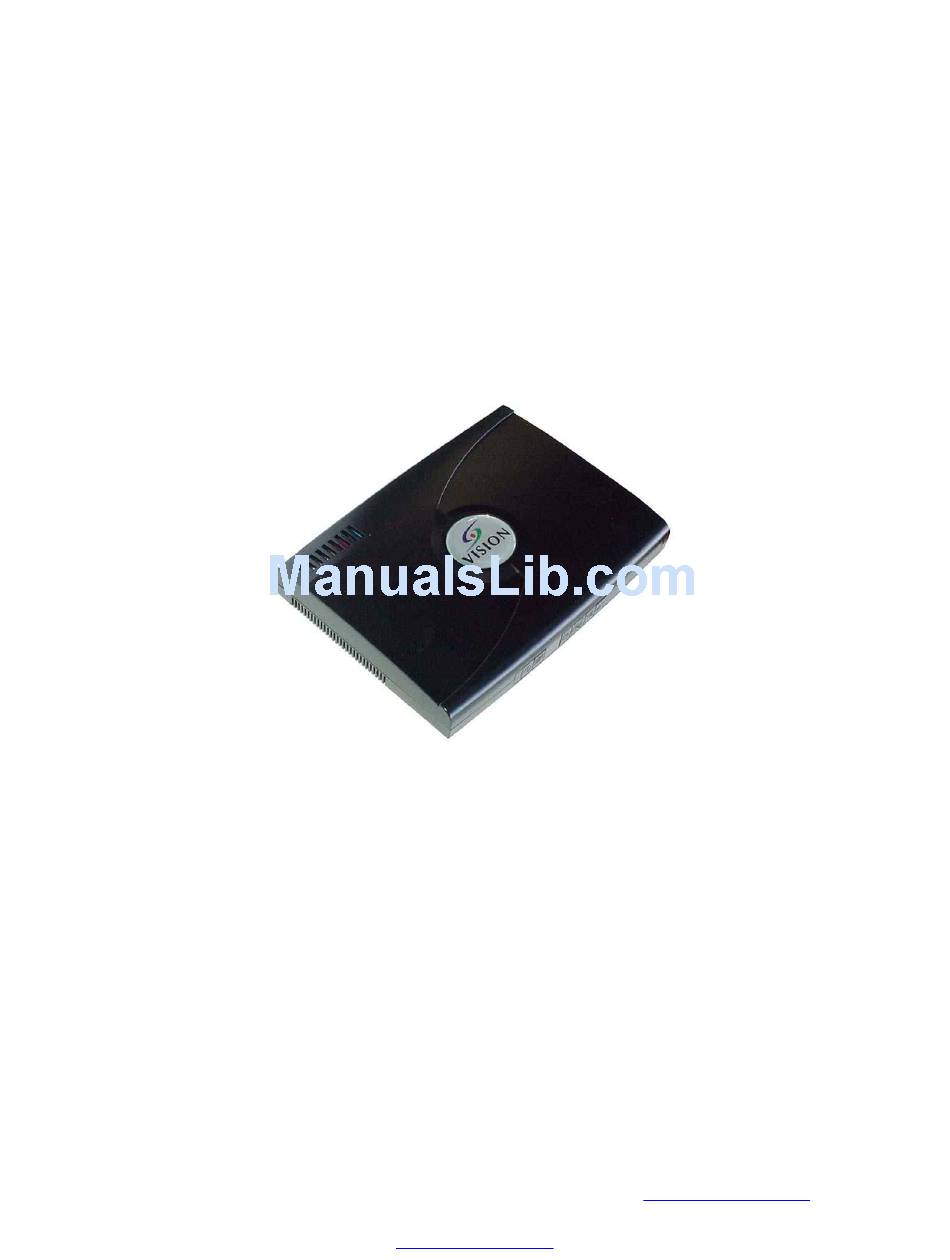

Vivid tv box

Advertisement

Quick Links

VIVID TV BOX
VTB-100
Operation Manual
Please browse our online catalogue to view our full product range.
44-48 Maitland Road, Mayfield East, NSW, 2304 Australia,
sales@converters.tv
Phone +61 249689313 Fax +61 249689314
www.converters.tv

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTB-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Boyo VTB-100

  • Page 1 VIVID TV BOX VTB-100 Operation Manual Please browse our online catalogue to view our full product range. 44-48 Maitland Road, Mayfield East, NSW, 2304 Australia, sales@converters.tv Phone +61 249689313 Fax +61 249689314 www.converters.tv...
  • Page 2 Introduction The compact unit easily turns your LCD, CRT monitor, plasma display or projector into a multimedia center. With a built-in TV tuner and multiple video ports, you can connect DVD players, digital cameras, VCRs or even game consoles. It provides S-video, composite (RCA) video connectors, audio pass-through and front-panel headphone support.
  • Page 3 • Localized TV system menu selection. • Compatible for multi-signal inputs: TV tuner, Video, S-Video, Component (Y, Cb, Cr) & VGA. • Support Sleep Timer Setting. • Available in NTSC/Multi-PAL (BG, DK, I)/SECAM model. • Re-mapping function for programming your favorite channels. •...
  • Page 4: Video Source Selection

    Front Panel POWER Pressing this button to switch the unit On or Off. VIDEO SOURCE SELECTION Select the video source between TV/Cable, S-Video, AV, Component (Y, Cb, Cr) or PC 3. POWER LED / INFRARED RECEIVER Lights when the TV BOX is powered up and ready to operate. Receive the Infrared signal from the remote control : Decrease the sound volume : Increase the sound volume...
  • Page 5 Rear Panel 1. DC In- Connect to a 12V power supply. 2. VGA Out- Connect your 15 Pin Monitor to the VGA output. 3. VGA In- Using the 15 pin VGA cable provided, connect one side to the VGA output on your pc and the other side to the VGA In of your unit. 4.
  • Page 6 Side Panel Line In- Connect the audio from sound card to Line In port. Thus you should be able to have sound from PC/external speakers even when your TV Box is in stand- by mode. Line Out- Connect the Line Out to your PC/external speakers. AUDIO (R&L) In- Please connect the external audio to the Audio In port.
  • Page 7 Connection and Installation To prevent damage to your equipment due to ground potential influence, make sure that all devices on the installation are properly grounded. Consult your dealer for technical details if necessary. Please turn off the power of all devices before connection. To install the unit for the analog TV and A/V device connection, please refer to the diagram below.
  • Page 8 Operation Instruction Initial Settings For all function settings of the unit, you can use the supplied remote control unit. Please refer to the following steps below: Install 2 AAA batteries into the Remote Control. Power on the unit or press the Power button on the Remote Control Press the “Source”...
  • Page 9 PICTURE setting Picture Sub-Menu provides BRIGHTNESS, CONTRAST, COLOR, TINT, SHARPNESS adjustment modes AND RESET. 1. In the Picture Sub-MENU, PRESS button to choose the required item. 2. Press button to adjust the selected item. 3. Press ENTER to confirm the setting. 4.
  • Page 10 TV FUNCTION Setting TV Function sub-menu provides different function selections for the NTSC and PAL models. Please refer the following diagrams. NTSC  NTSC system Select AIRCATV, CHANNEL EDIT, FINETUNE and AUTO SCAN by pressing the button, and then pressing “ENTER” to confirm the setting. ...
  • Page 11 The Original column remains the present channel number. Key in the channel number you like to swap at the TARGET column. For example, if you want to change the channel 11 to channel 22. Press the number key on the remote control unit. After key in the number 22, the channel 11 will be swapped with the channel 22.
  • Page 12 After you have entered the channel name, press “Enter” then the channel name will be saved. The channel list will depend on the channels you’ve scanned. The scanned channel will be marked with a check, which means this channel is available. All the channels will be listed on the channel list screen.
  • Page 13: Channel Editing

    4. Channel Editing Select the “CHANNEL EDIT” function on the TV Function Screen by pressing the or button. Then press the “Enter” button to entry the function. Press to select “ADD” or “ERASE” functionality. Adding a channel.  For example to add CH 60Use the Remote Control unit, to select CH 60, then enter the TV function sub-menu, press button to enter the CHANNEL EDIT.
  • Page 14 5. Fine Tuning Press and “Enter” button to enter the FINE TUNE function. Press fine-tune the frequency of the current channel to make it clear, then press “ Exit “ to return to TV Function sub-menu once finished. 6. Video Standard Press and “Enter”...
  • Page 15: Resolution Setting

    RESOLUTION Setting The RESOLUTION Sub-Menu provides 640 X 480, 800 X 600, 1024 X 768 modes. 1. To enter “1024 x 768”,“800 x 600”, “640x480”resolution, press button to select one of them, then press “Enter” to confirm the setting and Exit to main menu OSD FUNCTION Setting The OSD FUNCTION Sub-Menu provides OSD POSITION, OSD COLOR settings.
  • Page 16 System Setting The System Setting Sub Menu provides users to set the best display setting for their Plasma displays. For the best video quality and performance for the Plasma displays, user can select the plasma manufacturer manually by “OUTPUT SELECT “ function. Press the and the “Enter“...
  • Page 17 Press button on the remote control to adjust the display screen values. The TOTAL PIXEL / TOTAL LINE functions provide users to fine-tune the vertical and horizontal display values of the TV BOX. Press button on the remote control to adjust the output display values of TV Box. To restore the default value, please choose the “DEFALUT”...
  • Page 18 Remote Control Handset Functions 1. POWER Powers the unit on and off. 2. SOURCE Selects the video source between TV/cable, AV, S-video and YCbCr (Component). 3. PC/AV Switches the AV and PC modes. 4. MODE Adjusts the video resolution – 1024x768, 800x600, 640x480 5.
  • Page 19: Number Keys

    10. CH ERASE Press the button to erase the current channel, which you don’t like to see. 11. FINE TUNE - Tunes the TV channel signal down by continuous clicking the button. 12. FINE TUNE + Tunes the TV channel signal up by continuous clicking the button. 13.
  • Page 20 29. VOL + /- Click to turn the volume louder or lower. 30. CH RTN Press the button to return the last channel. 31. MUTE Mutes the volume. 32. MTS Enables the MTS function in NTSC system. If you are in Pal system area, press this button to execute the “Nicam”...
  • Page 21 Favorite Channel Setting The favorite channel setting function provides 5 channels to set favorite channels. Please refer the following instructions to set up the favorite channel. Choose the channel you’d like to set, press “ FAVSET “ button on the remote control unit.
  • Page 22 Teletext Operation Enabling and Disabling Teletext Press ‘’TTX ON/OFF’’ on the remote control to display the teletext index menu. Press the same button to disable teletext function and return to the normal picture. You can press key 26,27,28,29 (Red,Green,Yellow, Blue) on the remote control to correspond the option line at the bottom of index menu Select a Teletext Page Enter the desired page number on the index with the digit keys on the remote control.
  • Page 23: Troubleshooting

    Trouble Shooting Symptom Solution No picture on display  Make sure the power cord is connected to an AC outlet, DC plug is connected to DC In port and the power is on.  Check the connection of your source signal. ...
  • Page 24 Specifications Power 12VDC, 1200mA Video Input Composite video RCA connector. YCbCr (Component) Input Component video Y.U.V connector S-Video Input S-Video 4-pin mini DIN connector Audio Input Stereo R+L RCA connectors Line In Phone Jack 3.5φ Line Out Phone Jack 3.5φ RF In F-Female connector for NTSC system EC-Female connector for Pal system...
  • Page 25 Broadcasting System Country System Afghanistan Albania Algeria Alaska NTSC Angola Antigua & Barbuda NTSC Argentina Aruba NTSC Australia Austria Azores Bahamas NTSC Bahrain Bangladesh Barbados NTSC Belgium Benin SECAM Bermuda NTSC Bolivia NTSC Brazil Brunei Darussalam Bulgaria SECAM Burma NTSC Burkina Faso SECAM Burundi...
  • Page 26 Germany Ghana Greece SECAM Greenland NTSC Guam NTSC Guatemala NTSC Guyana SECAM Guinea SECAM Haiti NTSC Hawaii NTSC Honduras NTSC Hong Kong Hungary SECAM Iceland India Indonesia Iran SECAM Iraq SECAM Ireland Israel Italy Japan NTSC Jamaica NTSC Johnston Island NTSC Jordan Korea (Dem, People’s...
  • Page 27 Nepal Nicaragua NTSC Niger SECAM Nigeria Norway Oman Paraguay Pakistan Panama NTSC Philippines NTSC Polynesia SECAM Poland SECAM Portugal Puerto Rico NTSC Romania Saint Lucia NTSC Samoa NTSC Saudi Arabia SECAM San Marino Senegal SECAM Seychelles Sierra Leone Singapore South Africa Spain Sri Lanka Sudan...
