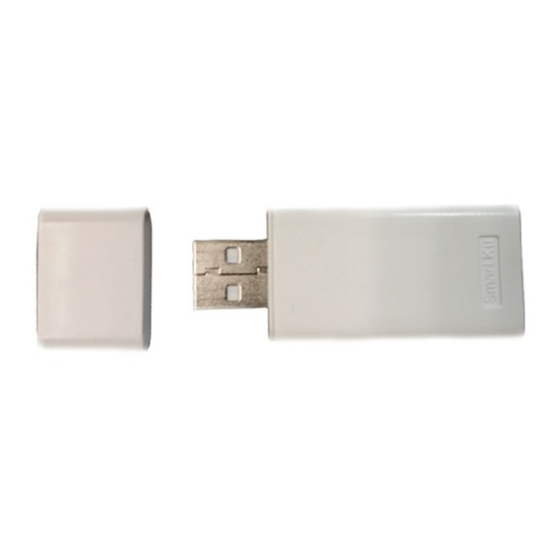

Kaysun K03 WIFI USB User Manual

Hide thumbs Also See for K03 WIFI USB:
Table of Contents

Advertisement

Quick Links

See also: User Manual
USER'S MANUAL
K03 WIFI USB
IMPORTANT NOTE:
Read the manual carefully before installing or connecting your Smart kit. Make sure
save this manual for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Kaysun K03 WIFI USB

Summary of Contents for Kaysun K03 WIFI USB

  • Page 1 USER’S MANUAL K03 WIFI USB IMPORTANT NOTE: Read the manual carefully before installing or connecting your Smart kit. Make sure save this manual for future reference.
  • Page 3 • This manual gives detailed description of precautions that should be brought to your attention during operation. • In order to ensure correct service of the wired controller please read this manual carefully before using the unit. • For convenience of future reference, keep this manual after reading it.

  • Page 5: Table Of Contents

    ÍNDEX 1. WIFI MODULE SPECIFICATION ............1 2. INSTALL THE SMART KIT ..............1 3. DOWNLOAD AND INSTALL APP ............2 4. PREPARATION ................2 5. CREATE ACCOUNT ................3 6. SET THE UNIT TO AP MODE ............3 7. NETWORK CONFIGURATION ............4 8. HOW TO USE APP.................11 9.

  • Page 7: Wifi Module Specification

    1. WIFI MODULE SPECIFICATION Model: K03 WIFI USB Standard: IEEE 802. 11b/g/n Antenna Type: External omnidirectional Antenna Frequency: WIFI: 2.4G Maximum Transmitted Power: 15dBm Max Operation Temperature:0 C~45 C/32 F~113 F Operation Humidity: 10%~85% Power Input: DC 5V/300mA NOTE: Company will not be liable for any issues and problems caused by Internet, Wi-Fi Router and Smart Devices.

  • Page 8: Download And Install App

    The following QR Code is only for download the APP. It is totally different wit h t he QR code packed wi th SMART KIT Scan QR code to download “Kaysun Air” APP or get it from Google Play or App Store by manually searching.

  • Page 9: Create Account

    5. CREATE ACCOUNT 1. Click “Login “ 2. Enter your email address and password, and then click “Create Account” 6. SET THE UNIT TO AP MODE Press the digital display button or do not disturb button seven times continuously in 3 minutes. When AP appear in the display, It means that the AC unit have already entered into AP Mode.

  • Page 10: Network Configuration

    7. NETWORK CONFIGURATION 7.1 Log in with your account. 7.2 Press “+” on the app’s appliance list screen, and select t he dev ice category you need. 7.3 Choose network configuration method • Scan QR Co de Method: – It is quickly way to complete configuration using simple steps. –...
  • Page 11 7.4 For android ( Scan QR code Method) 1. Scan QR c ode which is packed with smart kit. 2. Select your own WiFi network, for example My Home (the picture is only f or reference). 3. Enter your own WiFi router password an d click OK 4.
  • Page 12 7.5 Android (No need to Scan QR code Method) 1. Select net_xx_xxxx hotspot, type password 2. Select your own WiFi network, 12345678 and click “next “. for example My Home (the picture is only for reference) 3. Enter your own WiFi router password an d click OK 4.
  • Page 13 7.6 FOR IOS ( Scan QR Code Method) 1. Scan QR Code which is 2. Read the instruction above and press packed with smart kit the “Home” button to go back to the smart devices desktop 4. Choose net_ ac_XX XX 3.
  • Page 14 5. Type default password : 12345678 and click “Join” 6. Go back to APP’s Connecting Device Screen and tap next on the top right-hand corner 7. Select your own WiFi network, for example M y Home (the pictureis only for reference) 9.
  • Page 15 7.7 FOR IOS (No need to Scan QR Code method) 1. Read the instruction above and press 2. Go to you r wireless devices settings the “Home” button to go back to the smart devices desktop 4. Type de fault password: 3.
  • Page 16 5. Go back to APP’s Connecting Device Screen and tap next on 6. Select your own WiFi network, the top right-hand corner for example M y Home (the picture is only for reference). 7. Enter your own WiFi router password and click “ OK” 8.

  • Page 17: How To Use App

    8. HOW TO USE APP Log in and select your unit to enjoy controlling it wherever you are from your smart device. NOTE: Not all the function of the APP is avaiable on air conditioner. For example : ECO , Turbo, Left and Right Swing , Up and Down swing function, please check the user manual to find more in formation.

  • Page 18: Special Functions

    9. SPECIAL FUNCTIONS Including: Timer on, Timer off, Sleep curve, Check, Energy Monitor, Bill Control Check. NOTE: No all the unit can use these special function on the APP. Thus, if the air conditioner do not support the above function, the function will be hided from the function list.
  • Page 19 Sleep User can customize their own comfortable sleep by setting target temperature. Check User can simply check the AC running status with this function. When finishing this procedure, it can display the normal items, ab normal items, and de tailin formation.
  • Page 20 Energy Monitor User can simply monitor the electricity consumption of AC unit by checking the chart and history record. Bill Control User can set parameters to limit the electricity consumption over a period of time.

  • Page 21: App Declaration

    10. APP DECLARATION Applicable system: IOS, Andr oid. Note: (Suggest: IOS 7.0, Android 4.0) APP can not support the latest software version of Android and IOS system. Due to special situation may be occurred, we explicitly claims below: Not all of the Android and I OS system are compatible with APP.
  • Page 23 CS373U-APP(SK102) 16122000003074 20170104 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details.
