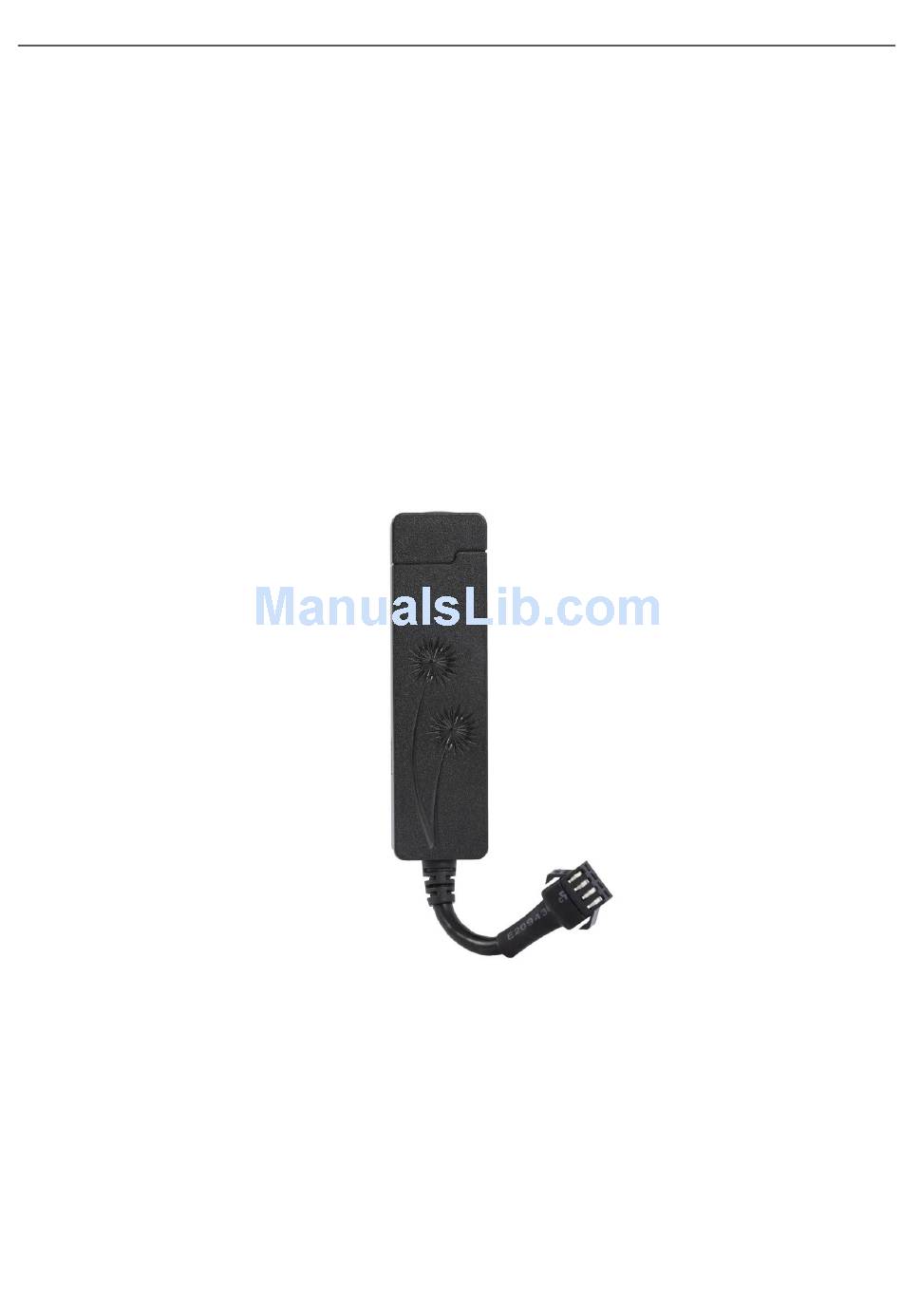

- Page 1 GPS Vehicle Tracker (GPS+GSM+SMS/GPRS) User Manual (GT02) This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.
-
Page 2: Table Of Contents
Content 1. Products Components and Port Definition ................3 1.1 Product Introduction ........................3 1.2 Product Configuration List ......................3 1.3 Device wiring diagram ........................4 1.4 Indicating Led Light ........................4 2. Specifications and functions ......................5 2.1 Specifications ........................... 5 2.2 Functions ............................ -
Page 3: Products Components And Port Definition
1. Products Components and Port Definition 1.1 Product Introduction Name GPS Vehicle Tracker Type GT02 Size 83*23*12.5mm Vehicle GPS Tracker is a practical and easy-to-use GPS tracker with small size and accurate location specially designed for vehicle tracking. It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning. -
Page 4: Device Wiring Diagram
1.3 Device wiring diagram Relay Yellow Orange Power Black Input Oil pump Connecting diagram Connect the positive wire of original oil pump Green Green 87A 30 Relay Yellow(Connect the Connect the positive wire of power Black negative wire of relay) START Orange Power... -
Page 5: Specifications And Functions
2. Specifications and functions 2.1 Specifications Item Specifications Working Voltage DC 9V - 90 V (wide voltage range) Material Plastic Working Current 25mA @12V(static current10mA) Standby Battery 0.5 hours (3.7V/50mAH) Size 83*23*12.5mm Location Accuracy <10 meter Communication Working Temperature -25℃+75℃ Storage Temperature -40℃+85℃... -
Page 6: Functions
2.2 Functions Functions Function details Description According to the stetted time update the Long Tracking Real time tracking and Lat information. Every time when the device uploaded Car ACC on/off status. data will include the ACC on/off status. When device checking the voltage is lower Power down alarm than 10V it will have alarm When speed is over than the set speed,... -
Page 7: Setup And Operation
2.3 Setup and Operation Unit Setup (1) Check unit Please check whether the equipment is in good appearance & whether accessories are completed. (2) Set In SIM Card Please press out the SIM card slot and put SIM card in. Please not put SIM card in or out when the equipment is connecting power. -
Page 8: Common Problem Analysis And After-Sales Services
3. Common problem analysis and after-sales services 3.1 Common problem analysis Question Reason Solution SIM Card not enough Charge credit credit SIM Card contact Reinstall SIM card problem Online tracking Online tracking offline Reset Parameters with correct parameter setting format according to user manual error Vehicle in underground car... -
Page 9: After-Sale Service
3.3 After-sale service During the one-year warranty, please feel free to contact us if there is any problem or damage not caused by human factors. Not maintenance: (1) Client dismantled privately (2) Force majeure (floods, accidents, etc.) More than one year damage or faulty maintenance will need to pay for raw material. Free to provide customers with the purchase, use, installation and other consultation and technical services.
