Summary of Contents for Orlaco 0103742
- Page 1 Camera TIC 320 9hz connector type Camera TIC SSt Installation Manual Manual no. IM0973120, A 02 Article no. 0103732, 0103742 10/2014 English Art. no. 0103732 Camera TIC 320 9hz connector type Art. no. 0103742 Camera TIC SSt...
-
Page 2: Table Of Contents
• The equipment must be assembled as shown in this manual. • If there have been alterations or changes to this equipment that have not been specifically approved by Orlaco, use of this equipment is not Art. no. 0103732 Camera TIC 320 9hz connector type permitted. -
Page 3: Introduction

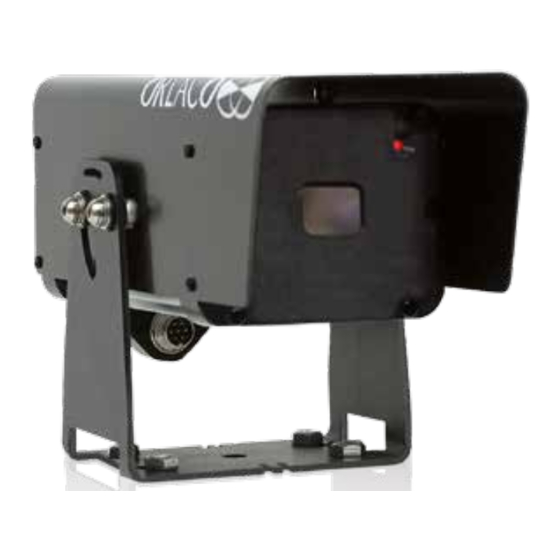

The Thermal Image Camera TIC gives in all weather, day or night, in fog or smoke a clear picture of the situation. The Camera TIC can be operated with the Orlaco Monitor 7" RLED/LEDD and the Orlaco Monitor 12" RLED. -
Page 4: Electrical Installation
Installation Manual 4. Electrical installation 4.1. Camera TIC 9hz connector type Art. no. 0103732 Electrical connections, see figure 4 Solder side of 7p male socket. 1 = Coax core Video 2 = Coax shielding Video GND 3 = Red Camera power, 12...30V/DC 4 = Black Camera 0V Art. -
Page 5: Instructions For Use
3. Camera does not work. Camera is not or incorrectly connected to the Check the connection of the camera to the Orlaco monitor. Orlaco monitor and make sure the red LED on the camera is lit. The camera is defective. Contact your Orlaco dealer. -
Page 6: Technical Specifications
IMO resolution MEPC.197(62) as adopted on 15 July 2011 (Maritime sector: International Maritime Organization concerning the functions of the Marine Environment Protection 80,0 Committee). Serial commands: See Orlaco Visca protocol manual; IM0973300. For Pelco-D commands see chapter 7. ∅10,0 R4,5 +0,5 -0,0 14,7... -
Page 7: Pelco-D Commands
Installation Manual 7. Pelco-D commands Pelco-D protocol as implemented in Orlaco Zoom camera or PTZ unit. Commands detailed below are accepted, no responses are sent. Bron:Pelco PTZ protocols, D Protocol, Version 5.0.1 1 april 2008 by Eric Hamilton (C) Pelco. - Page 8 Installation Manual Implemented “Non-motion” commands. Set Preset (TIC has only special presets): Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Sync addr. 0x00 0x03 0x00 Preset chksm 0xff Preset ID valid range = 0-5. Set preset is also used for some special function by using a special Preset ID.
-
Page 9: Maintenance And Cleaning
BV. All rights reserved. No part of this manual may be reproduced and/ or made public in printed form, in photocopy form or on microfilm, or in any other way, without the prior written permission of Orlaco. This also applies to the associated drawings and figures. - Page 10 Installation Manual IM0973120 A 01...
- Page 11 Installation Manual IM0973120 A 01...
- Page 12 ORLACO Orlaco is a Manufacturing company that specializes in making cameras and monitor systems for commercial vehicles, fork-lift trucks, cranes, off shore and maritime. Our objective is to design and produce camera systems for the profes- sional market that improve the drivers view and increase operating efficiency.
